Strain Reliefs

Preview

Download Datasheet

View All

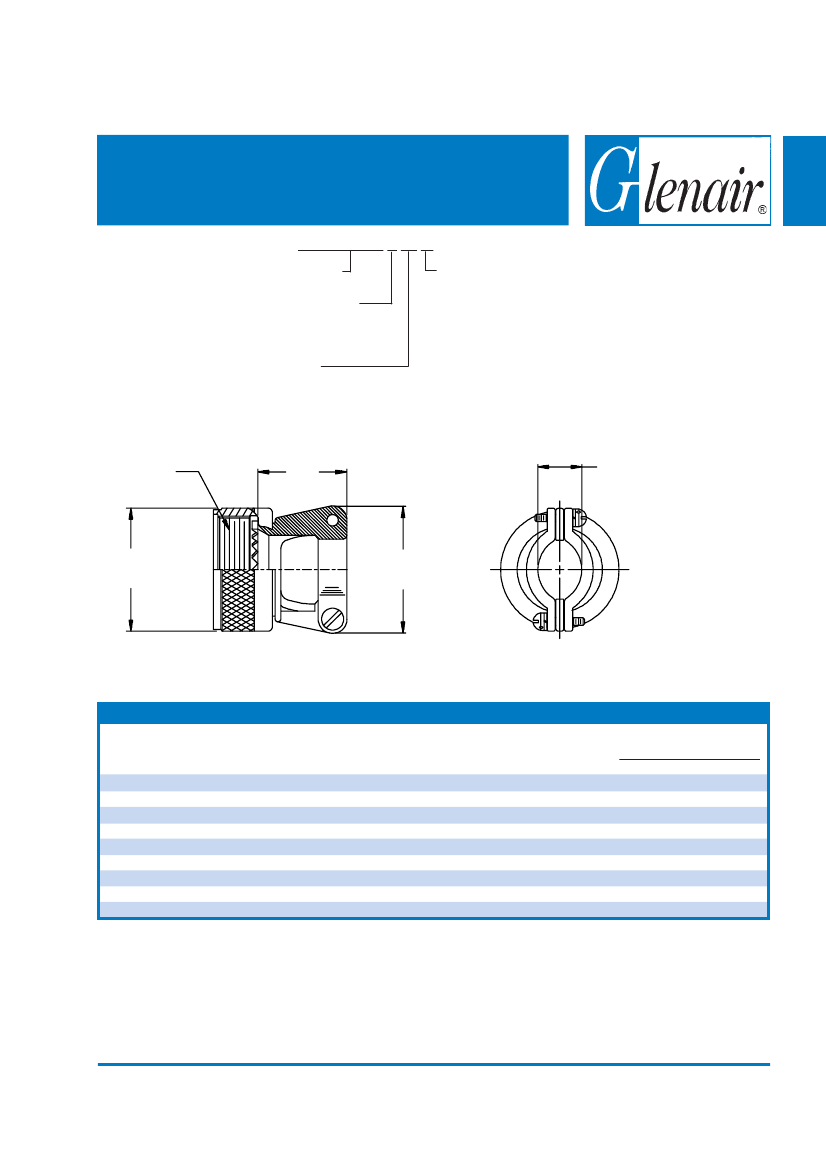

AS85049/49 and MS27506

Strain Reliefs

M85049/49-2 S 10 W

Glenair Connector

Designator F

Basic Part No.

Material and Finish Designator

A = Aluminum, Black Anodize (Non-Self-Locking Only)

N = Aluminum, Electroless Nickel

S = 300 Series Steel, Passivated (Self-Locking Only)

W = Aluminum, 1,000 Hr. Cadmium Olive Drab

Over Electroless Nickel

S = Self-Locking

MIL-DTL-38999 Series I & II,

Use Dash for

40M38277, PAN 6433-1, PATT

Non-Self-Locking

614, PATT 616,

NFC93422 Series HE308 &

Shell Size

HE309

A Thread

F

Self-Locking

Only

Cable

Entry

Note: Screw

orientation shown is

for non-self-locking

configuration. Screws

on self-locking

configurations are on

the same side/face of

the clamp.

E

Self-Locking Only

H

TABLE I

Dash

No.

8

10

12

14

16

18

20

22

24

Shell Size

Ref.

8/9

10/11

12/13

14/15

16/17

18/19

20/21

22/23

24/25

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

E Dia Max

F Max

Self-Locking Self-Locking

H

Only

Max

.86 (21.8)

.91 (23.1)

.85 (21.6)

.98 (24.9)

.91 (23.1)

.90 (22.9)

1.16 (29.5)

1.01 (25.7) 1.10 (27.9)

1.28 (32.5)

1.06 (26.9) 1.15 (29.2)

1.41 (35.8)

1.16 (29.5) 1.30 (33.0)

1.52 (38.6)

1.41 (35.8) 1.50 (38.1)

1.64 (41.7)

1.51 (38.4) 1.60 (40.6)

1.77 (45.0)

1.66 (42.2) 1.70 (43.2)

1.89 (48.0)

1.76 (44.7) 1.80 (45.7)

Cable Entry

Min

Max

.098 (2.5) .234 (5.9)

.153 (3.9) .234 (5.9)

.190 (4.8) .328 (8.3)

.260 (6.6) .457 (11.6)

.283 (7.2) .634 (16.1)

.325 (8.3) .614 (15.6)

.343 (8.7) .698 (17.7)

.381 (9.7) .823 (20.9)

.418 (10.6) .853 (21.7)

1. For complete dimensions see applicable Military Specification.

2. Metric dimensions (mm) are indicated in parentheses.

3. Cable Entry is defined as the accomodation entry for the wire bundle or cable.

Dimensions are not intended for inspection criteria.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

62-19

Strain

Reliefs
