RoHS
Compliant
Broadband CATV, 18dB Coupler
5-1200 MHz
Features
•
•
•
•
•
Surface mount
Typical coupling +18dB
260°C reflow compatible
RoHS* compliant
Available on tape and reel, reel quantity 1000
MACP-007727-CI07B0
V1

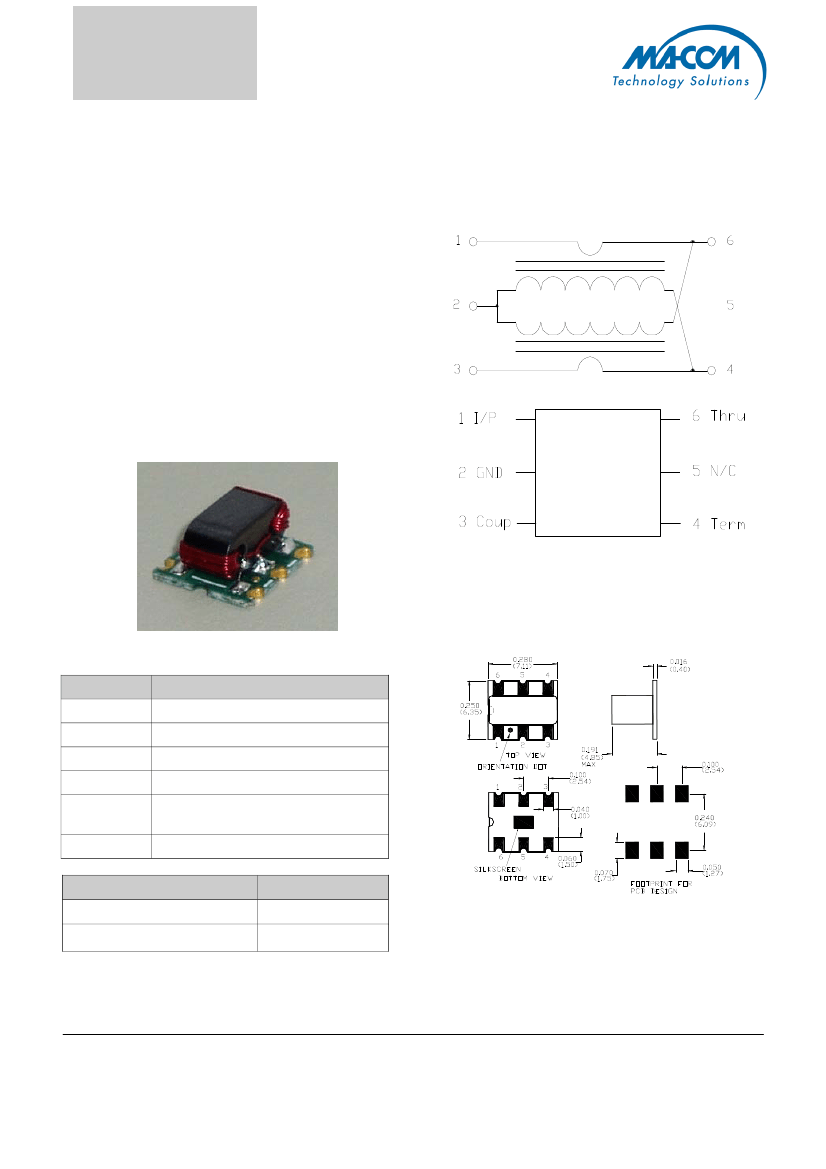

Schematic
Description
M/A-COM’s MACP-007727-CI07B0 is an 18dB
broadband coupler in a low cost, surface mount
package. It offers low loss, good isolation, good
input/output matching and exceptional matching in
return loss. Ideally suited for high volume CATV/
Broadband applications.
Case Style: SM-123
Pin Configuration
Pin No.
1
5
2
3
4
6
Function
Input
N/C
Ground
Coupled
Isolated
(external 75 Ohms termination)
Output
Package
1000 piece reel
Test Board
Dimensions in inches [mm] Tolerance: .xx ± .02, .xxx ± .010
Ordering Information
Part Number
MACP-007727-CI07B0
MACP-007727-CT30TB
Note: Reference Application Note
M513
for reel size information.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
RoHS
Compliant
Broadband CATV, 18dB Coupler
5-1200 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 75Ω
1
Parameter
Test Conditions
Units
Min
Typ
Max
MACP-007727-CI07B0
V1
Coupling
5 - 40 MHz
40 - 1000 MHz
1000 - 1200MHz
5 - 1000 MHz
1000 - 1200 MHz
5 - 40 MHz
40 - 1000 MHz
1000 - 1200 MHz
5 - 40 MHz
40 - 1000 MHz
1000 - 1200 MHz
5 - 1000 MHz
1000 - 1200 MHz
5 - 1000 MHz
1000 - 1200 MHz
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
-
-
-
-
-
25.0
23.0
19.0
25.0
23..0
19.0
23.0
20.0
15.0
10.0
18.2
18.2
18.7
1.00
1.40
27.3
31.9
23.4
29.20
27.10
21.24
28.90
26.25
21.15
16.70
18.3
20.0
22.0
1.25
1.8
-
-
-
-
-
-
-
-
-
-
Main Line Loss
Input Return Loss
Output Return Loss
Isolation
Coupling
Return Loss
Absolute Maximum Ratings
1,2
Recommended PCB Configuration
Parameter
Max Input Power
DC current
Operating Tempera-
ture
Storage Temperature
Absolute Maximum
250mW
30mA
-40°C to +85°C
-55°C to +100°C
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. M/A-COM does not recommend sustained operation near
these survivability limits.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
RoHS
Compliant
Broadband CATV, 18dB Coupler
5-1200 MHz

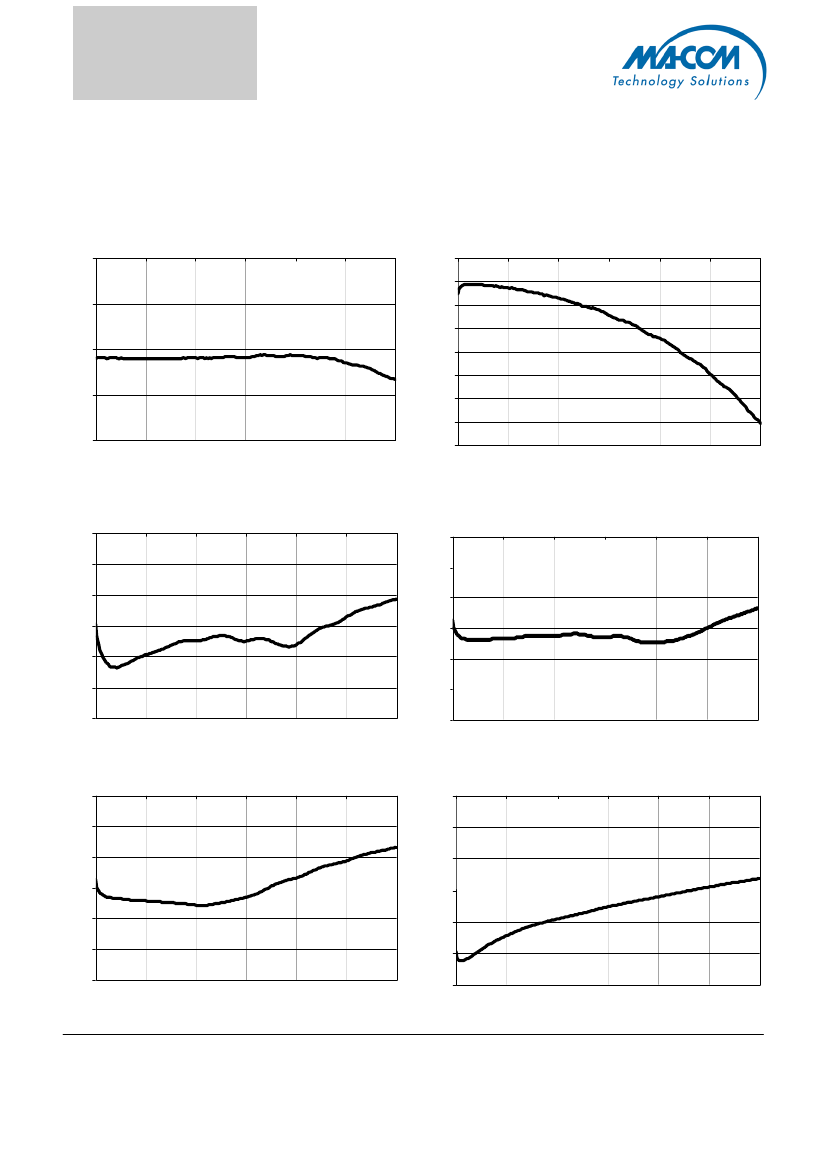

Typical Performance Curves T
A
= 25°C, Z
0
= 75Ω
-1
6
MACP-007727-CI07B0
V1
Coupling
0.0
-0.2
Main Line Loss
-1
7
-0.4
-0.6
dB
-1
8
dB
5
204
403
602
802
1
001
1
200
-0.8
-1
.0
-1
9
-1
.2
-1
.4
-20
-1
.6
5
204
403
602
802
1
001
1
200
Frequency (MHz)
Frequency (MHz)
Output Return Loss
0
-1
0
-20
Input Return Loss
0
-10
-20
dB
-30
-40
-50
-60
5
204
403
602
802
1
001
1
200
dB
-30
-40
-50
-60
5.0
204.2
403.3
602.5
801.6
1000.8
1200.0
Frequency (MHz)
Frequency (MHz)
Coupling Return Loss
0
-1
0
-20
0
-1
0
-20
Isolation
dB
-30
-40
-50
-60
5
204
403
602
802
1
001
1
200
dB
-30
-40
-50
-60
5
204
403
602
802
1
001
1
200
Frequency (MHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
Frequency (MHz)
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
