BDW21 datasheet, PDF - EEWORLD Datasheet

BDW21: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size66KB，1 Pages; ManufacturerCDIL[Continental Device India Pvt. Ltd.]

Download Datasheet Parametric Compare View All

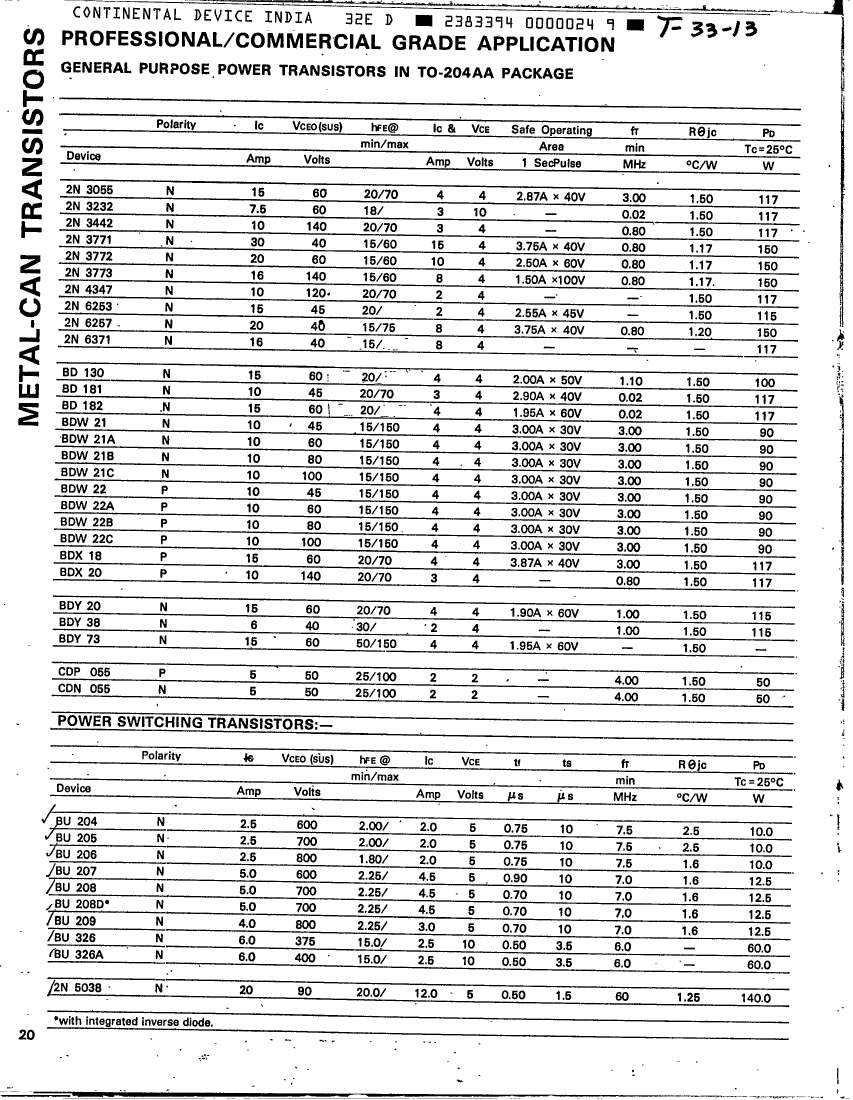

BDW21 Overview

Transistor

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	compliant
Maximum collector current (IC)	10 A
Configuration	Single
Minimum DC current gain (hFE)	15
JESD-609 code	e0
Maximum operating temperature	175 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	90 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	3 MHz
Base Number Matches	1

	BDW21	2N3232	BDW21A	BDW21B	BD182	BD130	BD181	BDW21C
Description	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant
Maximum collector current (IC)	10 A	7.5 A	10 A	10 A	15 A	15 A	10 A	10 A
Configuration	Single	Single	Single	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	15	18	15	15	20	20	20	15
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	90 W	117 W	90 W	90 W	117 W	100 W	78 W	90 W
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	3 MHz	0.02 MHz	3 MHz	3 MHz	0.02 MHz	1.1 MHz	0.02 MHz	3 MHz
Base Number Matches	1	1	1	1	1	-	-	-
Maker	-	-	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]
