BRR19N-024S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> BRR19N-024S

BRR19N-024S: DescriptionPower/Signal Relay, SPDT, Momentary, 24000mW (Coil), AC Input, AC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size69KB，2 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric View All

BRR19N-024S Overview

Power/Signal Relay, SPDT, Momentary, 24000mW (Coil), AC Input, AC Output, Panel Mount

BRR19N-024S Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Coil current (AC) maximum value	0.1 A
Coil power	24000 mW
Maximum coil voltage (AC)	240 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	240 V
Contact/Output Power Type	AC
Manufacturer's serial number	BRR
Installation features	PANEL MOUNT
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

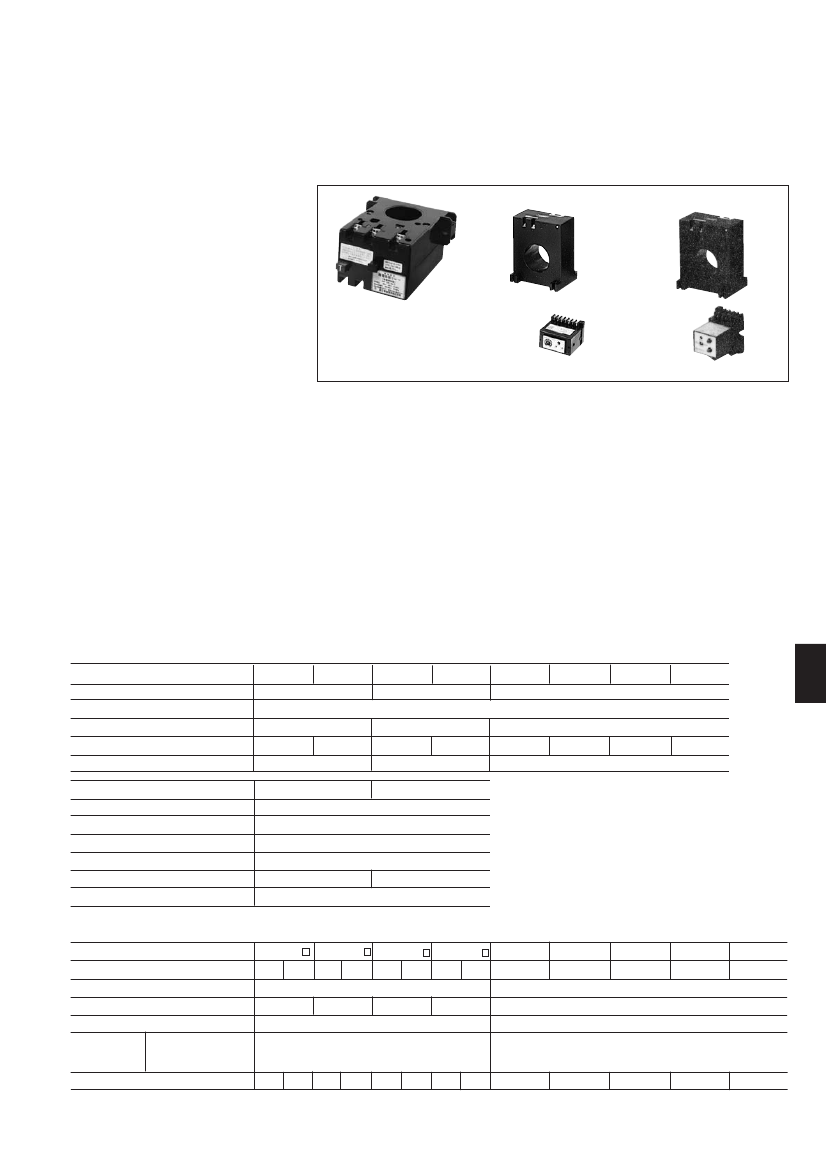

Earth Leakage Protective Relays

BRR, RRD and EL series

Earth leakage protective relays

Description

In the earth leakage relay the breaking

mechanism is omitted from the ELCB,

and the ZCT and earth leakage tripping

device are integrated into a common

body. These relays are available in both

instantaneous and time-delay versions.

Generally these relays are used in

conjunction with MCCB's, ACB's and

motor starters.

Relay and sensor–Unit type

BRR/Pass-through type

• Instantaneous trip

• Solid-state tripping device

• Sensitive current: 30, 100, 200mA

500mA

• Control voltage: Up to 415V AC

Relay and sensor–Separate type

RRD/Pass-through type

• Time-delay trip

• Solid-state tripping device

• Sensitive current: 100/200, 200/500mA

500/1000mA

• Control voltage: Up to 415V AC

BRR21N

Y-1706

RRD60P0

EL90P0

RRD relay unit

SB-1824

EL relay unit

SF-1034

EL/Pass-through type

• Instantaneous or time-delay trip

• Solid-state tripping device

• Sensitive current:

30, 100/200, 200/500mA

500/1000mA

• Control voltage: Up to 415V AC

• Easily modified from front mounting

to flush mounting

Selection guide

BRR(Unit type)/Solid-state tripping device

Type

Sensor hole

Main circuit voltage

Control voltage *

Rated sensitive current

Mass

Type

No. of poles

Main circuit voltage

Rated current

Control voltage *

Rated sensitive current

Mass

BRR01N

(mm)

ø10

(V AC) Max. 600

(V AC) 120, 240

(mA)

(kg)

0.12

BRR42H

2, 3, 4

(V AC) Max. 600

(A)

(mA)

(kg)

400

200

2-pole: 3.0,

BRR09N

BRR11N

ø25

120, 240

BRR19N

BRR21N

ø40

BRR29N

BRR22N

BRR25N

120, 240, 415

100

0.52

100

200

500

100

0.2

BRR45H

(V AC) 120, 240, 415

500

3-pole: 3.3,

4-pole: 3.6

RRD(Separate type)/Solid-state tripping device

RRD6AZ

600

(V AC) Max. 600

(A)

800

1000

1200

RRD8AZ

RRD10AZ

RRD12AZ

RRD25P0 RRD40P0

ø25

Max. 600

–

ø40

RRD60P0 RRD90P0 RRD120P0

ø60

ø90

ø120

Type

No. of poles or sensor hole (mm)

Main circuit voltage

Rated current

Control voltage *

(V AC) 120, 240, 415

120, 240, 415

100/200, 200/500, 500/1000

Rated

Time-delay type

100/200, 200/500, 500/1000

sensitive

0.2 to 2 sec.

current (mA) adjustable

8.1 12.0 9.3 14.6 12.0 16.0 15.7 25.4 0.7

1.8

Mass/Relay+Sensor (kg)

1.2

Note:

100/110V or 200/220V is available.

2.6

7.0

Fuji Electric FA Components & Systems Co., Ltd./D & C Catalog

Information subject to change without notice

07/109
