EMC filters
3-line sine-wave EMC output filters
SineFormer
520 V AC, 6 A ... 320 A, 40
°C
Series/Type:
Date:
B84143V*R127
February 2016
© EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Line reactors, output chokes and output filters
3-line sine-wave EMC output filters
SineFormer
B84143V*R127
Filters for converters and power electronics
Rated voltage V
R
: 520 V AC, 50/60 Hz
Rated current I
R
: 6 A to 320 A

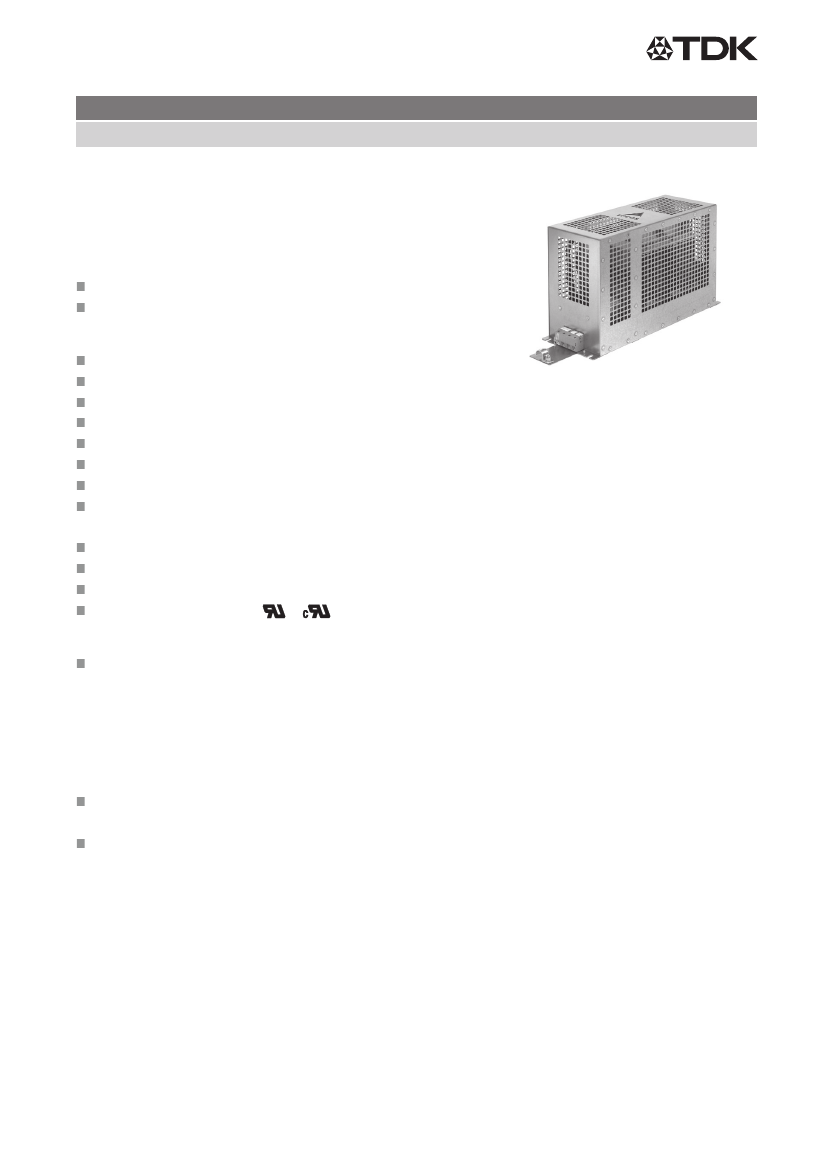

Construction
3-line filters, sine-wave EMC output filters
Metal case
Features
Supersede shielded motor cables
Motor noise reduction
Reduced motor bearing current
Low dv/dt values - reduced eddy current losses
Easy to install
Compact design
Degree of protection: IP20
1)
Optimized for long motor cables up to 1000 m and
operation under full load
2)
No integrated forced ventilation (maintenance-free)
No DC-link connection required
Design complies with EN 60939, UL 1283, CSA 22.2 No.8
UL and cUL approval
(except 6 A, 45 A, 320 A)
Typical applications
Frequency converters for motor drives, e.g.
elevators
pumps
traction and conveyer systems
HVAC systems (heating, ventilation and air conditioning)
Terminals
Line side (to converter):
up to 180 A: shielded cable; 320-A filter: copper busbars
Load side (to motor):
up to 180 A: Finger-safe terminal blocks; 320-A filter: copper busbars
Marking
Marking on component:
Manufacturer’s logo, ordering code, rated voltage, rated
current, rated motor frequency, rated switch frequency, rated
temperature, climatic category, date code, approvals
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
1) According to IEC 60529
2) The maximum permissible motor cable length depends on the application and must be checked.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 13
Line reactors, output chokes and output filters
3-line sine-wave EMC output filters
SineFormer
B84143V*R127
Typical circuit diagram
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
Converter output frequency f
M
Pulse frequency f
P
Voltage drop (input to output)
Power losses P
L
Overload capability (thermal)
Max. dv/dt on filter input
Convection distance to other devices
Vibration (sine)
520 V AC (50/60 Hz)
320-A filter: 600 V AC (50/60 Hz)
Referred to 40
°C
rated temperature
2100 V DC, 2 s (line/line)
2700 V DC, 2 s (lines/case)
0 Hz … 100 Hz
4 kHz ... 8 kHz (Type 320 A: 2.5 kHz ... 8 kHz)
At I
R
and 50 Hz
At I
R
and 50 Hz
1.5 I
R
for 1 min per hour
5 kV/μs
see dimensional drawing "Convection space"
10 cycles, 1 oct./min,
3 Hz ... 13 Hz: 3 mm; 13 Hz ... 200 Hz: 1
g
(according to IEC 60068-2-6)
15
g,
11 ms, 3 axis, 3 shocks per direction,
18 total (according to IEC 60068-2-6)
approx. 70
°C
approx. 72 dB (A)
25/100/21 ( 25
°C/+100 °C/21
days damp heat test)
Shock (half sine)
Temperature housing
Noise level of filter
Climatic category (IEC 60068-1)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 13
Line reactors, output chokes and output filters
3-line sine-wave EMC output filters
SineFormer
B84143V*R127
Characteristics and ordering codes
I
R
*
A
Terminal
cross section
mm
2
ΔV
%
7
5
7
8
8
8
10
10
10
P
L
W
45
26
38
92
82
160
210
450
475
R
typ
Approx. Ordering code
weight
mΩ kg
290
9
46
9
32 11
20 24
17 28
15 47
8 99
6 125
4 195
B84143V0006R127
B84143V0011R127
B84143V0016R127
B84143V0033R127
B84143V0045R127
B84143V0066R127
B84143V0095R127
B84143V0180R127
B84143V0320R127
Approvals
V
R
= 520 V AC
4
6
11
4
16
6
33
10
45
10
66
25
95
50
180
150
V
R
= 600 V AC
see
320
dimensional
drawing
×
= Approval granted
×
×
×
×
×
×
×
×
×
×
×
×
* Higher current values upon request

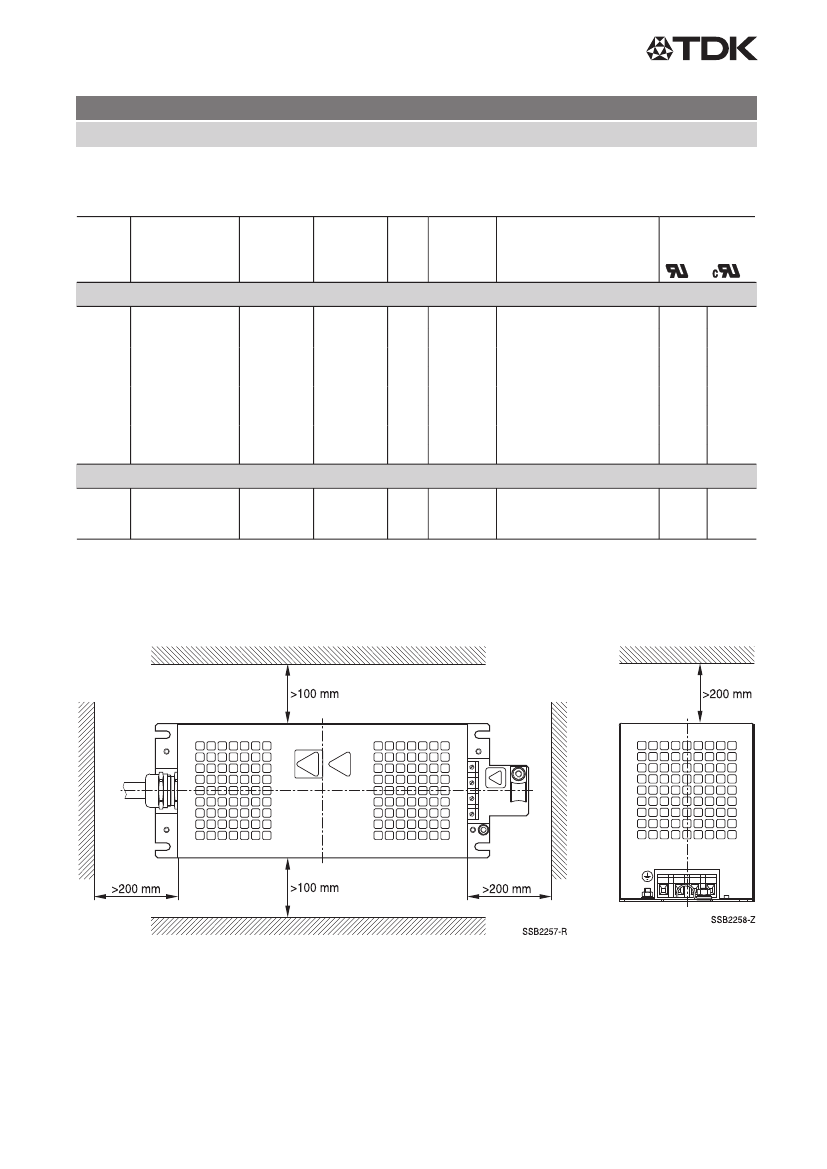

Convection space (cabinet fan recommended)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 13
Line reactors, output chokes and output filters
3-line sine-wave EMC output filters
SineFormer
B84143V*R127

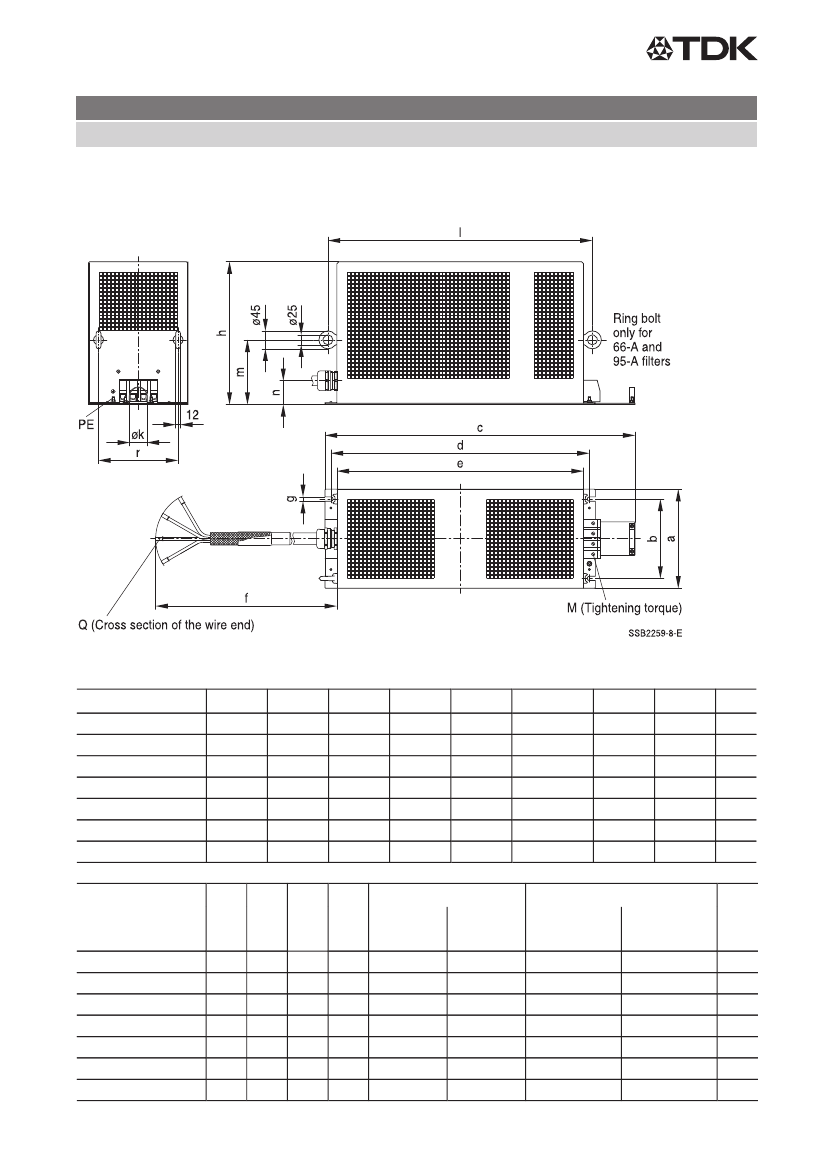

Dimensional drawings
B84143V0006R127 ... B84143V0095R127 (6 A ... 95 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Filter B84143...
V0006R127
V0011R127
V0016R127
V0033R127
V0045R127
V0066R127
V0095R127
Filter B84143...
a
120
120
120
150
150
210
250
l
m
b
100
100
100
120
120
160
200
n
c
335
335
375
470
470
650
780
r
d
280
280
320
380
380
530
650
e
260
260
300
360
360
500
620
f
700
±10
700
±10
900
±10
900
±10
900
±10
1500
±10
1600
±10
h
160
160
190
240
240
280
360
g
6.6
6.6
6.6
6.6
6.6
8.6
11
∅k
14
14
16
20
20
30
43
Q
mm
2
2.5
2.5
4
6
6
16
35
V0006R127
V0011R127
V0016R127
V0033R127
V0045R127
V0066R127
V0095R127
22.5
22.5
22.5
33.5
33.5
545 122 45
665 163 60
Terminal blocks
M
Nm
mm
2
4
0.6 ... 0.8
4
0.6 ... 0.8
6
1.5 ... 1.8
10
1.5 ... 1.8
10
1.5 ... 1.8
165 25
4 ... 4.5
200 50
6 ... 8
Page 5 of 13
Threaded studs
M
PE
Nm
M5
×
9.5
1.9 ... 2.1
M5
×
9.5
1.9 ... 2.1
M5
×
9.5
1.9 ... 2.1
M5
×
12.5
1.9 ... 2.1
M6
×
16.5
2.85 ... 3.15
M6
×
16.5
2.85 ... 3.15
M6
×
15.5
2.85 ... 3.15
Please read
Cautions and warnings
and
Important notes
at the end of this document.
