SAW Components
Low Loss Filter
Data Sheet
B3586
869,0 MHz
Ceramic package
DCC6C
Features
s
RF low-loss filter for remote control receivers
s
Package for
Surface Mounted Technology
(SMT)
s
Hermetically sealed ceramic package
s
Matching network required for operation at 50
Ω
Terminals
s
Ni, gold plated
Dimensions in mm, approx. weight 0,1 g
Pin configuration
2
5
1,3,4,6
Input
Output
Ground
Type
B3586
Ordering code
B39871-B3586-U410
Marking and Package
according to
C61157-A7-A56
Packing
according to
F61074-V8070-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Source power
T
A
T
stg
V
DC
P
S
–40/+85
–45/+90
0
13
˚C
˚C
V
dBm
within passband (source 50
Ω)
2
Jan 15, 2003
SAW Components
Low Loss Filter
Data Sheet
B3586
869,0 MHz
Characteristics
Reference temperature:
Terminating source impedance:
Terminating load impedance:
T
A
= -40...+85 ˚C
Z
S
= 50Ω
Z
L
= 50Ω
min.
Center frequency
Maximum insertion attenuation
868,0 ... 870,0
Amplitude ripple
(p-p)
868,0 ... 870,0
MHz
typ.
869,0
max.
—
MHz
f
c
—
MHz
α
max
∆α
—
5,5
7,0
dB
—
1,5
2,5
dB
Relative attenuation
(relative to
α
max
)
α
rel

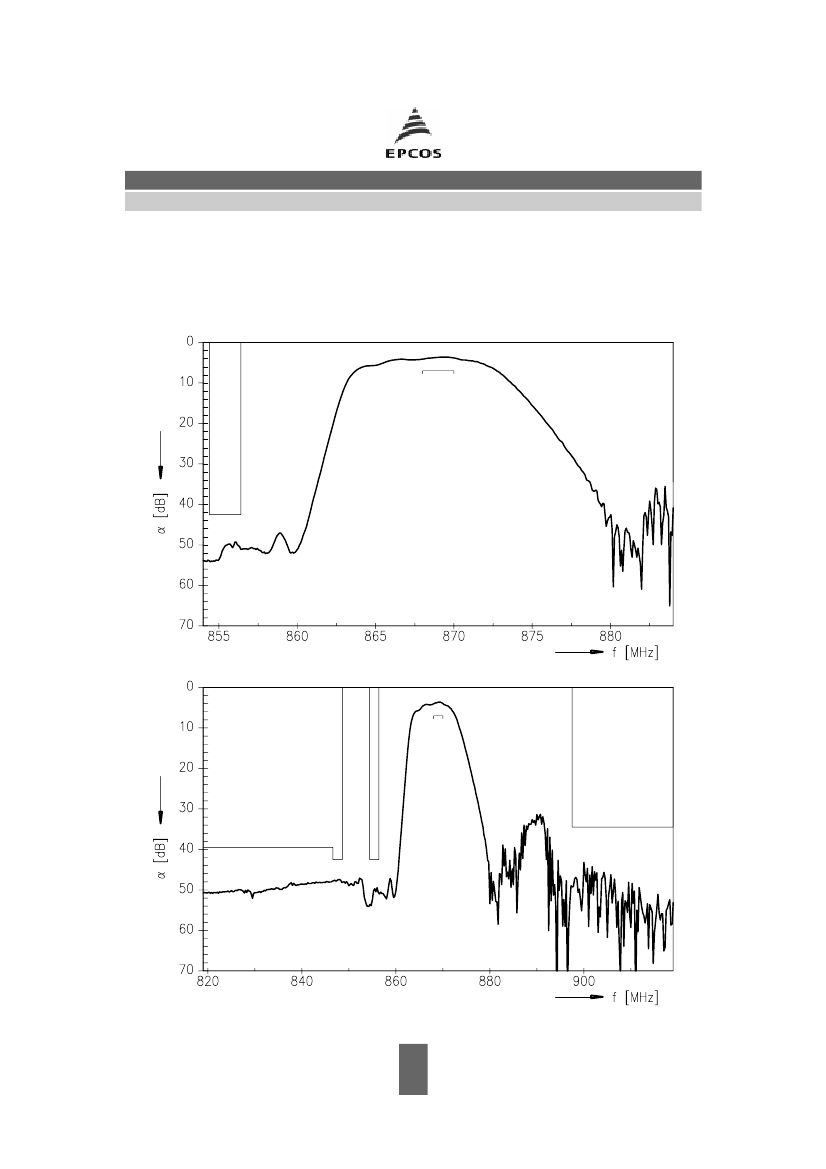

10,00 ... 846,60 MHz
846,60 ... 848,60 MHz
854,40 ... 856,40 MHz
897,50 ...1000,00 MHz
35
38
38
30
42
53
44
35
—
—
—
—
dB
dB
dB
dB
Temperature coefficient of frequency
TC
f
—
-30
—
ppm/K
3
Jan 15, 2003
SAW Components
Low Loss Filter
Data Sheet
B3586
869,0 MHz
