Optical CWDM Channel Checker
Key features
•
Industry’s smallest and lightest CWDM channel checker
•
Wavelength scan range: 1260 nm to 1620 nm
•
Outstanding battery lifetime ensures highest flexibility
•
Graphical/tabular display mode
•
Results can be saved via internal memory
•
Report generation software OFS-355
Applications
JDSU’s
S
mart
optical handhelds go beyond the basics

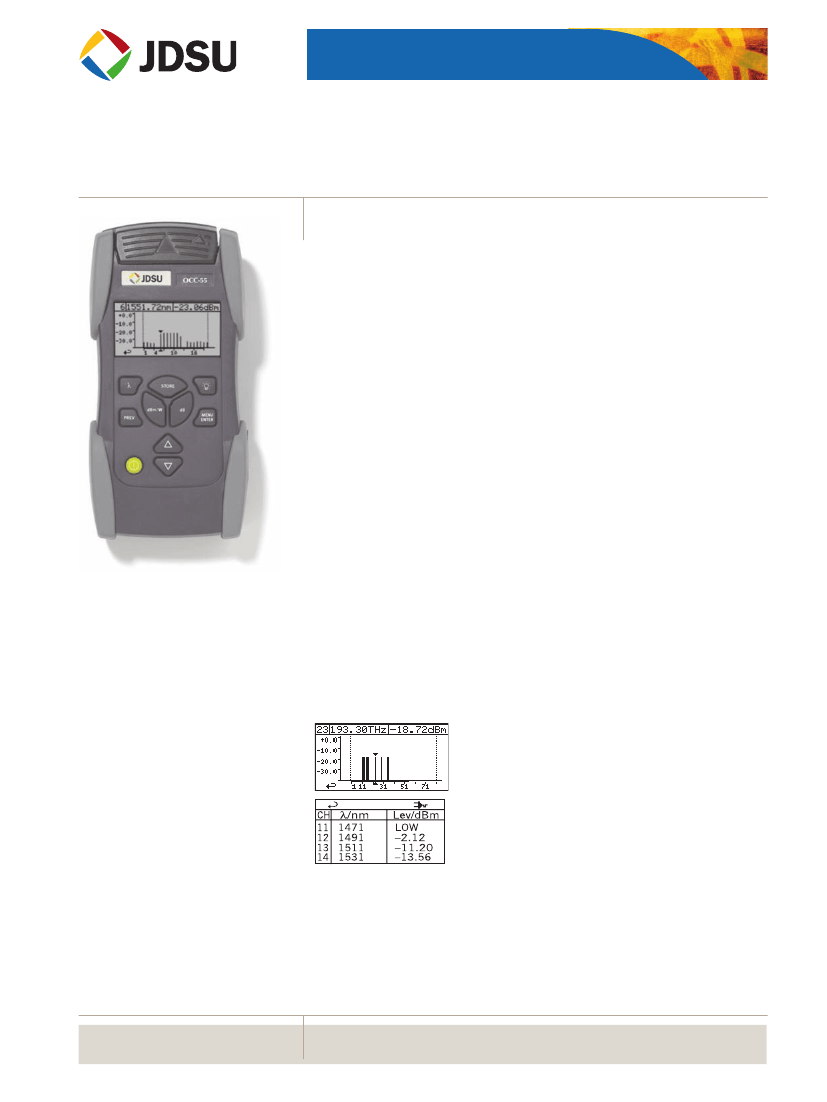

The JDSU OCC-55 is a handheld, battery-operated CWDM Channel Checker that is ideal for field
service groups tasked with the installation, maintenance, and upgrades of CWDM systems. The
OCC-55 scans the CWDM system and automatically records all channels with the wavelength and
the related power level. The information can be displayed in a graphical spectrum format, or in a
table of results so that users can easily check the performance of each and every channel.
Graphical display
Cursor position indicates channel shown in the upper section of
the display.
Tabular display
Channel number, frequency (wavelength) with the relevant power
level is listed in a compact format.
•
Performance verification in
metro access networks
•
Troubleshooting in CWDM
networks
•
Upgrade of CWDM systems
WEBSITE:
www.jdsu.com
OCC-55
Smart
OPTICAL CWDM CHANNEL CHECKER
2
OCC-55 the Channel Checker with the right-on-spot price/performance ratio
With the OCC-55 JDSU is setting a new benchmark in terms of a true field usable CWDM analyzer.
On a footprint of just 195 x 95 mm (7.68 x 3.74 in) a technician finds the performance to install,
upgrade and maintain a CWDM network.
Transmitter power
level testing
Receiver power
level testing
Fiber link
insertion loss testing

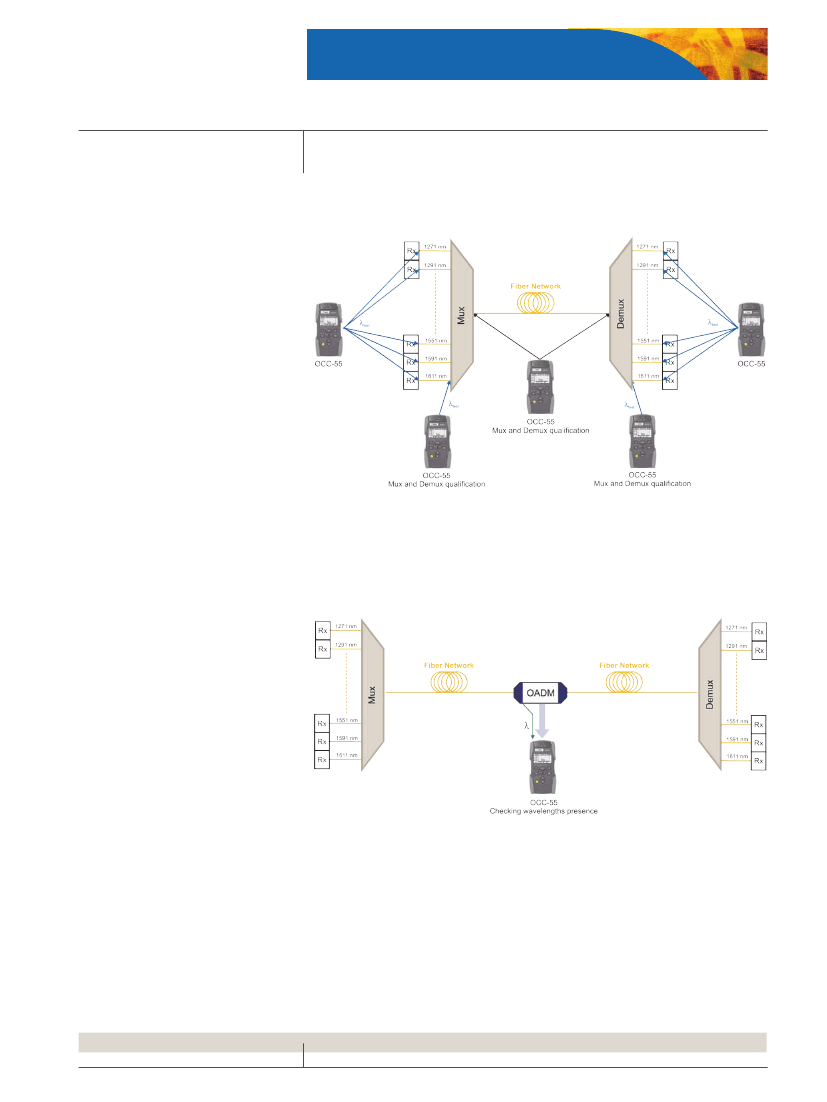

Figure 1 Evolution of a CWDM network
•
Analysis of single channel before MUX and after DEMUX
•
Qualification of multiplexed signals
•
In-service measurement and network element verification
Channel wavelength verification at add/drop multiplexers
Figure 2 Checking for wavelength presence
•
Channel drop testing at OADM to verify presence of the appropriate channel at the ex-
pected power level
OCC-55
Smart
OPTICAL CWDM CHANNEL CHECKER
3

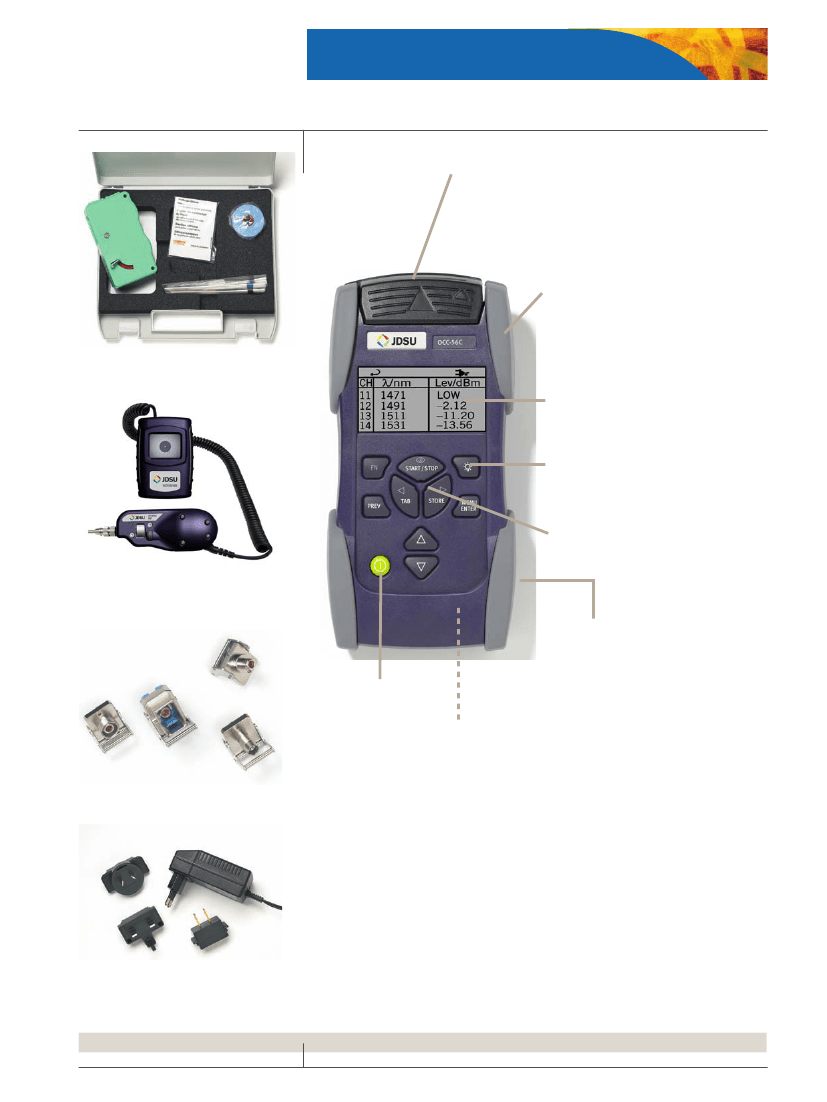

Dust cap to protect the optical interface
Shock-proof design
OCK-10 Optical Connector Cleaning Kit (accessory)
Display (128 x 64 dots) shows
up to three results simultane-
ously
Display backlight
Menu-oriented operation for
simple use
FBE-SM1 probe kit
Client USB connection
Power-on, auto power-off
(after 20 min)
Battery compartment
4x AA sized dry/rechargeable
batteries
Optical adapters (BN 2150) for signal input
Worldwide compatible AC adapter/charger
(SNT-121A)
OCC-55
Smart
OPTICAL CWDM CHANNEL CHECKER
Specifications
OCC-55
Wavelength range
Minimum channel spacing/
spectral resolution
Absolute wavelength
accuracy
(1)
Relative wavelength accuracy
Power level range/channel
Maximum composite power
Dynamic range
Channel power repeatability
Channel power accuracy
PDL
Measurement time
Optical interface
Return loss
Graphical display
Trace
Table
Functions
Sweep mode
Remote control
(1)
23°C ± 5°C
1260 nm to 1620 nm
2 nm (@ 3 dB)
± 0.2 nm
± 0.1 nm
+10 dBm to –50 dBm
+22 dBm
50 dB
± 0.4 dB
± 0.8 dB
± 0.3 dB
1 min
Universal PC (FC/SC/DIN...)
>35 dB
Bar graph
ch-no, wavelength, power
Marker, wavelength drift
Single, continuous
via USB interface
Calibration
Suggested calibration interval
Temperature
Operation
Storage
Dimensions and weight
W × H × D approximately
Weight approximately
Ordering Information
Ordering number
BN 2277/40
Instrument
OCC-55 CWDM Channel Checker
3 years
−10°C to +55°C
−40°C to +70°C
95 × 60 × 195 mm
(3.74 × 2.36 × 7.68 in)
500 g (1.1 lb)
Included items
Ordering number
BN 2237/90.02
BN 2277/90.01
BN 2277/90.02
BN 2150/00.xx
Description
Four NiMH rechargeable cells (AA)
SNT-121A AC adapter
Operating manual
MT-1S Belt bag
Interchangeable adapter
Display
Graphical display, resolution of 128 × 64 dots, displays up to
four laser status screens
Backlight function switchable via a separate key
Optical interface
Optical connector interchangeable adapter from
BN 2150/00.xx range
Power supply
Four dry batteries Mignon/AA, 1.5 V or NiMH rechargeable cells
Mignon/AA, 1.2 V
Operating time from dry batteries
typ. 7 h
(1)
Power saving
The instrument switches off automatically after ~20 min
(function can be disabled)
AC line operation via separate AC adapter
Integrated fast battery charging function (2 hours)
Electromagnetic compatibility
Corresponds to IEC 61326 (CE conformance)
Accessories
Ordering number
BN 2150/00.32
BN 2150/00.58
BN 2150/00.51
BN 2150/00.50
BN 2150/00.59
BN 2229/90.21
BN 2237/90.02
BN 2277/90.01
K804
FBE-SM1
BN 2277/90.02
BN 2126/03
BN 2126/04
BN 2093/31
Accessories
Optical adapter ST type
Optical adapter SC type
Optical adapter FC type
Optical adapter DIN type
Optical adapter LC type
OCK-10 Optical Connector Cleaning Kit
NiMH cells, Mignon/AA, 1.2 V (4 required
per instrument)
SNT-121A Worldwide compatible AC
adapter
USB connection cable
Probe kit: 200x FBE probe hardwared to
HD3 display
MT-1S belt bag for one instrument
MT-2S soft bag for two instruments
MT-3S soft bag for three instruments
MK-3S hard case for three instruments
(1) single sweep mode
