Features
Up to 2W CW
output power.
High Quality,
Reliability, &
Performance

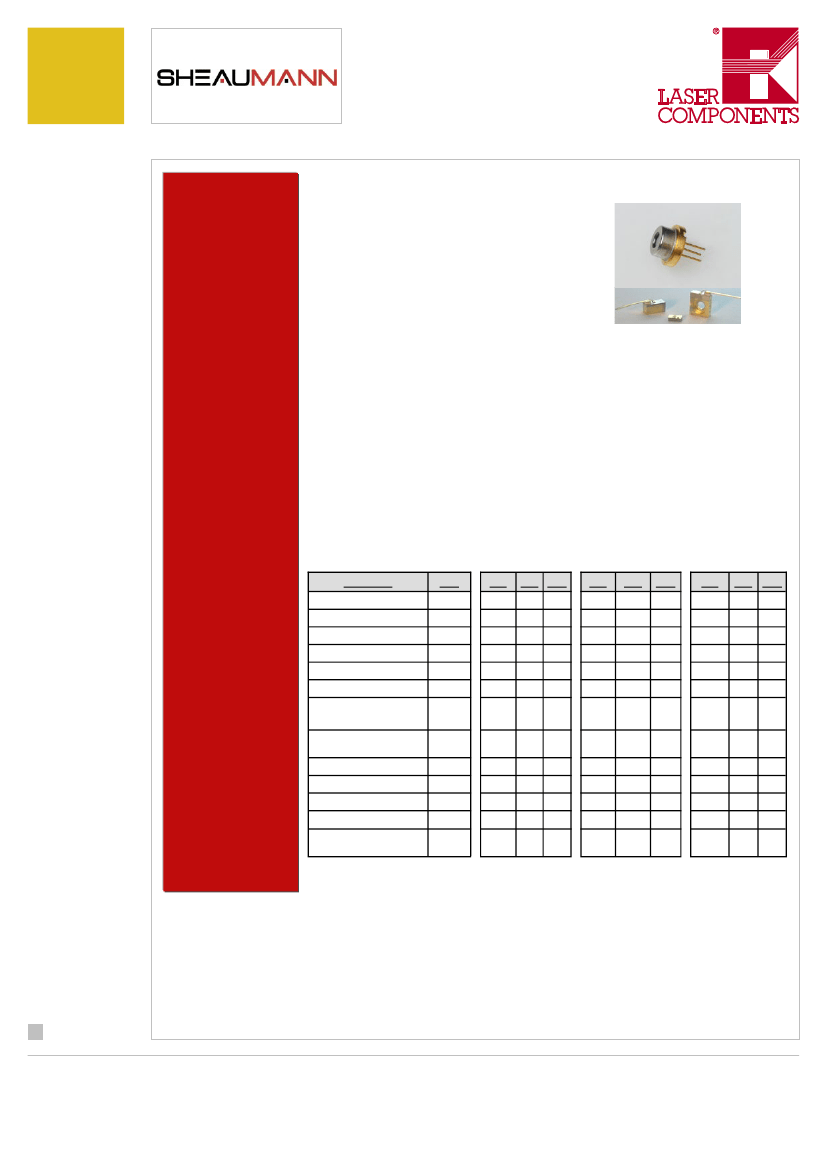

Product Specifications
780nm Multi-Mode Laser Diodes
100μm emitter (1W-2W)
Description
High brightness, high quality, and high reliability are
the foundation of our multi mode product line. Sheaumann’s 785nm multi
mode
laser diodes are available with up to 2W of continuous output power from a
single emitter chip. Sheaumann’s trademark laser chip design creates
un-measurable degradation and long lifetimes that make our chips among
the most reliable in the industry today. Our 785nm multi mode line serves a
broad range of applications including Raman Spectroscopy, laser pumping,
and medical laser therapy.
Packaging options include industry standard 9mm TO-can, C-mount, B-
mount, and QA-mount. More product options are available upon request.
Performance Data for 785nm Multi-Mode Diodes
2W Series
Parameter
Wavelength
Spectrum FWHM
Operating Power (P
o
)
Operating Current (I
o
)
Operating Voltage (V
o
)
Lifetime
Vertical Far Field
Parallel Far Field
Threshold (I
th
)
Slope Efficiency (dP/dI)
Storage Temp.
Operating Temp. (T
op
)
Lead Soldering Temp.(5
sec)
Applications
Raman Spectroscopy
Laser Pumping
Laser Therapy
1.5W Series
Min
780
-
-
-
-
10,000
-
-
-
1.0
-40
-20
-
1W Series
Min
780
-
-
-
-
10,000
-
-
-
1.0
-40
-20
-
Unit
nm
nm
W
A
V
hour
deg,
FWHM
deg,
FWHM
mA
W/A
o
o
o
Min
780
-
-
-
-
10,000
-
-
-
1.0
-40
-20
-
Typ Max
785
2
2.0
2.1
1.9
-
25
8
400
1.2
-
25
-
790
4
-
2.5
2.2
-
30
11
700
-
80
50
250
Typ
785
2
1.5
1.8
1.9
-
25
8
400
1.2
-
25
-
Max
790
4
-
2.2
2.2
-
30
11
700
-
80
50
250
Typ
785
2
1.0
1.4
1.9
-
25
8
400
1.2
-
25
-
Max
790
4
-
1.8
2.2
-
30
11
700
-
80
50
250
C
C
C
Note:
Specifications are subject to change without notice. All Sheaumann Laser products are TE
polarized
1
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
Nordic Countries
Laser Components Nordic AB
Tel: +46 31 703 71 73
Fax: +46 31 703 71 01
info@lasercomponents.se
www.lasercomponents.se
Laser
Diodes
Power Output
Danger Label

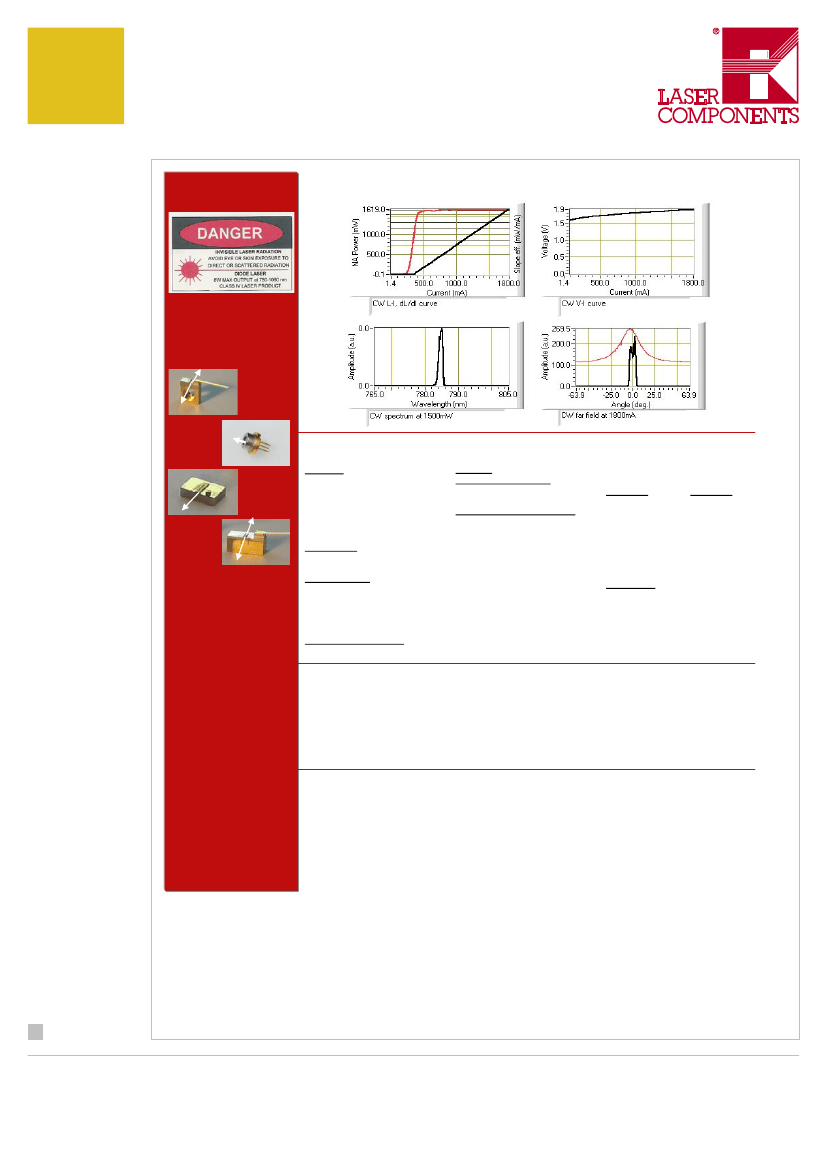

Product Performance Data Graphs
WARNING!
Invisible laser radiation
is emitted from devices
as shown below
Determining Your Product Number
Package:
CM
BM
QA
M9
Wavelength:
785
785nm
1W
1.5W
2W
100μm aperture
Power Options:
1000
1500
2000
1
C-mount
B-mount
Q-mount
9mm TO-can
Y Option
(wavelength tolerance)
5
0
P
±5 nm
none
w/ photodiode
Z Option (additional options)
MM—WWW—PPPP—XYZ—(custom add-ons)
(package)-(wavelength)-(power)-(options)
Standard Product Configurations
1W Series
CM-785-1000-150
BM-785-1000-150
QA-785-1000-150
M9-785-1000-150
M9-785-1000-15P
1.5W Series
CM-785-1500-150
BM-785-1500-150
QA-785-1500-150
2W Series
CM-785-2000-150
BM-785-2000-150
QA-785-2000-150
früher: axcel/mm/785nm-mm-diodes-2w
21 CFR 1040.10
Compliance
Because of the small size of
these devices, each of the
labels shown are attached to
the individual shipping
container. They are illustrated
here to comply with 21 CFR
1040.10 as applicable under
the Radiation Control for
Health and Safety Act of 1968.
X Option (aperture size)
Note:
These are our
standard product
configurations. Other options
may be available, please
inquire about any additional
options that you may require
when contacting our Sales
Team.
Safety
Caution: Laser light emitted from any diode laser
is invisible and may be harmful to the human eye.
Avoid looking directly into the diode laser aperture
when the device is in operation.
Note:
The use of
optical instruments with this product will increase
eye hazard.
ESD Caution
Always handle diode lasers with extreme care to
prevent electrostatic discharge, the primary cause
of unexpected diode failure. You can prevent ESD
by always wearing wrist straps, grounding all
applicable work surfaces, and following extremely
rigorous anti-static techniques when handling
10/15 / V6 / PS / sheaumann/diodes/mm/785nm-mm-diodes-2w
Operating Considerations
Operating the diode laser outside of its maximum ratings may cause device failure or a safety hazard.
