BTH-150-02-F-D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BTH-150-02-F-D

Preview

BTH-150-02-F-D: DescriptionBoard Stacking Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size1MB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

BTH-150-02-F-D Overview

Board Stacking Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

BTH-150-02-F-D Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BTH
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	300
Base Number Matches	1

Preview

Download Datasheet

View All

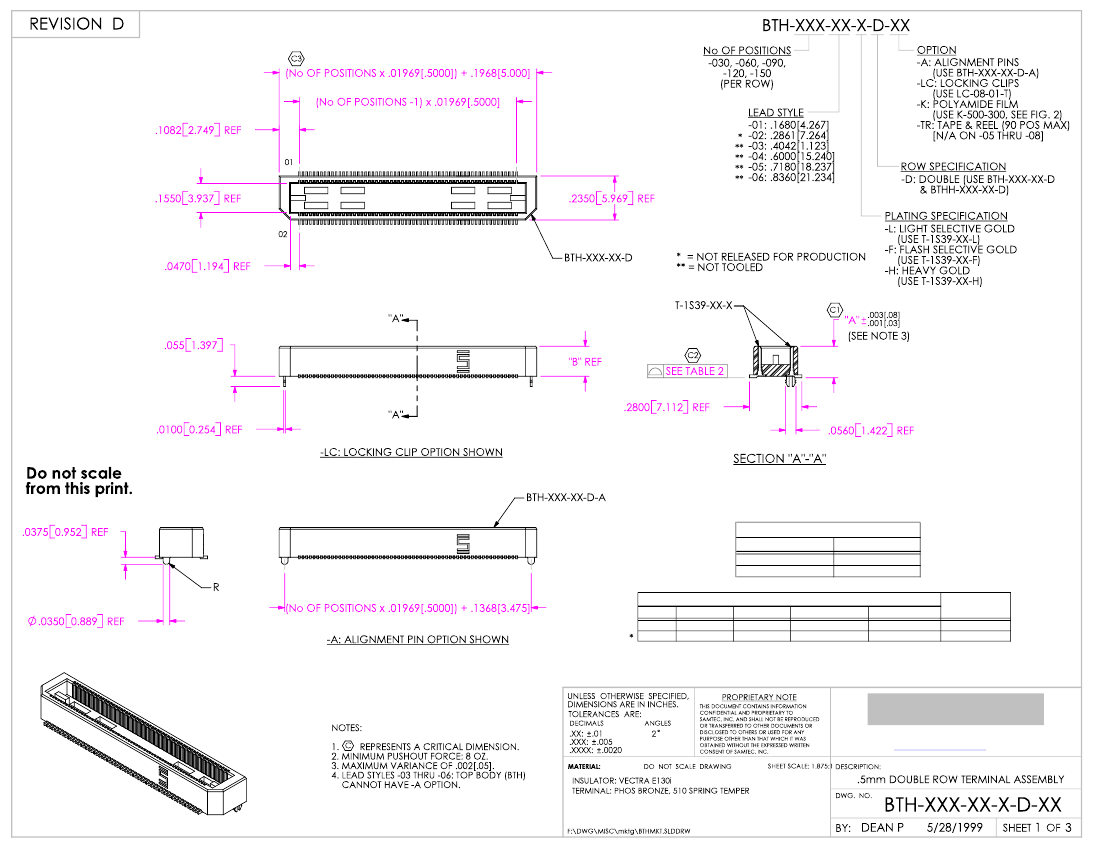

TABLE 2

NO. OF POSITIONS

-030 THRU -090

-120 THRU -150

TABLE 1

STYLE

-01

-02

"A"

.1680[4.267]

.2861[7.267]

"B"

.1600[4.064]

.2781[7.064]

BODY

BTH-XXX-01-D(-A)

BTH-XXX-02-D(-A)

TERMINAL

T-1S39-01-X

T-1S39-02-X

COPLANARITY

.004[.10]

.006[.15]

MATED HEIGHT

WITH BSH

.1969[5.001]

.3150[8.001]

S A M TE C

5 2 0 P a rk E a st B lv d . N e w A lb a n y , IN 4 7 1 5 1

P h o n e (8 1 2 ) 9 4 4 -6 7 3 3 F a x (8 1 2 ) 9 4 8 -5 0 4 7

e -M a il:

IN F O @ S A M T E C .C O M

C O D E : 5 5 3 2 2

BTH-150-02-F-D Related Products

	BTH-150-02-F-D	BTH-150-02-H-D	BTH-060-02-H-D	BTH-090-02-H-D
Description	Board Stacking Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Stacking Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Stacking Connector, 180 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD FLASH	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD FLASH	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	BTH	BTH	BTH	BTH
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	300	300	120	180
