MCP6L91/1R/2/4
10 MHz, 850 µA Op Amps
Features
•
•
•
•
•
•
•
Available in SOT-23-5 package
Gain Bandwidth Product: 10 MHz (typical)
Rail-to-Rail Input/Output
Supply Voltage: 2.4V to 6.0V
Supply Current: I
Q
= 0.85 mA/amplifier (typical)
Extended Temperature Range: -40°C to +125°C
Available in Single, Dual and Quad Packages
Description
The Microchip Technology Inc. MCP6L91/1R/2/4 family
of operational amplifiers (op amps) provides wide
bandwidth for the current. The input bias currents and
voltage ranges make it easier to fit into many
applications.
This family has a 10 MHz Gain Bandwidth Product
(GBWP) and a low 850 µA per amplifier quiescent
current. These op amps operate on supply voltages
between 2.4V and 6.0V, with rail-to-rail input and output
swing. They are available in the extended temperature
range.
Typical Applications
•
•
•
•
•
Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems
Package Types
MCP6L91
SOT-23-5
V
OUT
1
V
SS
2
V
IN
+ 3
4 V
IN
–
5 V
DD
MCP6L92
SOIC, MSOP
V
OUTA
1
V
INA
– 2
V
INA
+ 3
V
SS
4
8 V
DD
7 V
OUTB
6 V
INB
–
5 V
INB
+
Design Aids
•
•
•
•
FilterLab
®
Software
Microchip Advanced Part Selector (MAPS)
Analog Demonstration and Evaluation Boards
Application Notes
MCP6L91
SOIC, MSOP
NC 1
8 NC
7 V
DD
6 V
OUT
5 NC
V
IN
– 2
V
IN
+ 3
MCP6L94
SOIC, TSSOP
V
OUTA
1
V
INA
– 2
V
INA
+ 3
V
DD
4
V
INB
+ 5
V
INB
– 6
V
OUTB
7
14 V
OUTD
13 V
IND
–
12 V
IND
+
11 V
SS
10 V
INC
+
9 V
INC
–
8 V
OUTC
Typical Application
R
1
R
2
3.01 kΩ 6.81 kΩ
V
IN
C
1
120 nF
C
2
12 nF
MCP6L91
R
3
9.31 kΩ
C
3
27 nF
V
OUT
V
SS
4
MCP6L91R
SOT-23-5
V
OUT
1
V
DD
2
V
IN
+ 3
5 V
SS
4 V
IN
–
Low-pass Filter
©
2009 Microchip Technology Inc.
DS22141A-page 1
MCP6L91/1R/2/4
NOTES:
DS22141A-page 2
©
2009 Microchip Technology Inc.
MCP6L91/1R/2/4
1.0
1.1
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings †
†
Notice:
Stresses above those listed under “Absolute
Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of
the device at those or any other conditions above those
indicated in the operational listings of this specification is not
implied. Exposure to maximum rating conditions for extended
periods may affect device reliability.
†† See
Section 4.1.2 “Input Voltage and Current Limits”.
V
DD
– V
SS
.......................................................................7.0V
Current at Input Pins ....................................................±2 mA
Analog Inputs (V
IN
+, V
IN
–) †† ....... V
SS
– 1.0V to V
DD
+ 1.0V
All Inputs and Outputs ................... V
SS
– 0.3V to V
DD
+ 0.3V
Difference Input voltage ...................................... |V
DD
– V
SS
|
Output Short Circuit Current ................................ Continuous
Current at Output and Supply Pins ..........................±150 mA
Storage Temperature ...................................-65°C to +150°C
Max. Junction Temperature ........................................ +150°C
ESD protection on all pins (HBM, MM)
................≥
4 kV, 400V
1.2
Specifications
DC ELECTRICAL SPECIFICATIONS
TABLE 1-1:
Electrical Characteristics:
Unless otherwise indicated, T
A
= +25°C, V
DD
= 5.0V, V
SS
= GND, V
CM
= V
SS
, V
OUT
≈
V
DD
/2,
V
L
= V
DD
/2 and R
L
= 10 kΩ to V
L
(refer to
Figure 1-1).
Parameters
Input Offset
Input Offset Voltage
Input Offset Voltage Drift
Power Supply Rejection Ratio
Input Current and Impedance
Input Bias Current
Across Temperature
Across Temperature
Input Offset Current
Common Mode Input Impedance
Differential Input Impedance
Common Mode
Common-Mode Input Voltage Range
Common-Mode Rejection Ratio
Open Loop Gain
DC Open Loop Gain (large signal)
Output
Maximum Output Voltage Swing
Output Short Circuit Current
Power Supply
Supply Voltage
Quiescent Current per Amplifier
Note 1:
Sym
Min
(Note 1)
-4
—
—
—
—
—
—
—
—
-0.3
—
—
—
4.980
—
2.4
0.35
Typ
Max
(Note 1)
+4
—
—
—
—
—
—
—
—
5.3
—
—
0.020
—
—
6.0
1.35
Units
Conditions
V
OS
ΔV
OS
/ΔT
A
PSRR
I
B
I
B
I
B
I
OS
Z
CM
Z
DIFF
V
CMR
CMRR
A
OL
V
OL
V
OH
I
SC
V
DD
I
Q
±1
±1.3
89
1
50
2000
±1
10
13
||6
10 ||3
—
91
105
—
—
±25
—
0.85
13
mV
µV/°C T
A
= -40°C to+125°C
dB
pA
pA
pA
pA
Ω||pF
Ω||pF
V
dB
dB
V
V
mA
V
mA
I
O
= 0
V
CM
= -0.3V to 5.3V
V
OUT
= 0.2V to 4.8V
G = +2, 0.5V Input Overdrive
G = +2, 0.5V Input Overdrive
T
A
= +85°C
T
A
= +125°C
For design guidance only; not tested.
©
2009 Microchip Technology Inc.
DS22141A-page 3
MCP6L91/1R/2/4
TABLE 1-2:
AC ELECTRICAL SPECIFICATIONS
Electrical Characteristics:
Unless otherwise indicated, T
A
= +25°C, V
DD
= +5.0V, V
SS
= GND, V
CM
= V
SS
, V
OUT
≈
V
DD
/2,
V
L
= V
DD
/2, R
L
= 10 kΩ to V
L
and C
L
= 60 pF (refer to
Figure 1-1).
Parameters
AC Response
Gain Bandwidth Product
Phase Margin
Slew Rate
Noise
Input Noise Voltage
Input Noise Voltage Density
Input Noise Current Density
Sym
GBWP
PM
SR
E
ni
e
ni
i
ni
Min
—
—
—
—
—
—
Typ
10
65
7
2.5
9.4
3
Max
—
—
—
—
—
—
Units
MHz
°
V/µs
µV
P-P
fA/√Hz
G = +1
Conditions
f = 0.1 Hz to 10 Hz
f = 1 kHz
nV/√Hz f = 10 kHz
TABLE 1-3:
TEMPERATURE SPECIFICATIONS
Sym
T
A
T
A
T
A
θ
JA
θ
JA
θ
JA
θ
JA
θ
JA
Electrical Characteristics:
Unless otherwise indicated, all limits are specified for: V
DD
= +2.4V to +6.0V, V
SS
= GND.
Parameters
Temperature Ranges
Specified Temperature Range
Operating Temperature Range
Storage Temperature Range
Thermal Package Resistances
Thermal Resistance, 5L-SOT-23
Thermal Resistance, 8L-SOIC (150 mil)
Thermal Resistance, 8L-MSOP
Thermal Resistance, 14L-SOIC
Thermal Resistance, 14L-TSSOP
Note 1:
Min
-40
-40
-65
Typ
—
—
—
Max
+125
+125
+150
Units
°C
°C
°C
(Note 1)
Conditions
—
—
—
—
—
256
163
206
120
100
—
—
—
—
—
°C/W
°C/W
°C/W
°C/W
°C/W
Operation must not cause T
J
to exceed Maximum Junction Temperature specification (150°C).
1.3
Test Circuit
R
G
100 kΩ
V
P
V
IN+
MCP6L9X
V
IN–
V
M
R
G
100 kΩ
The circuit used for most DC and AC tests is shown in
Figure 1-1.
This circuit can independently set V
CM
and
V
OUT
; see
Equation 1-1.
Note that V
CM
is not the
circuit’s common mode voltage ((V
P
+ V
M
)/2), and that
V
OST
includes V
OS
plus the effects (on the input offset
error, V
OST
) of temperature, CMRR, PSRR and A
OL
.
C
F
6.8 pF
R
F
100 kΩ
V
DD
C
B1
100 nF
V
DD
/2
EQUATION 1-1:
G
DM
=
R
F
⁄
R
G
V
CM
=
(
V
P
+
V
DD
⁄
2
) ⁄
2
V
OST
=
V
IN–
–
V
IN+
V
OUT
=
(
V
DD
⁄
2
)
+
(
V
P
–
V
M
)
+
V
OST
(
1 +
G
DM
)
Where:
G
DM
= Differential Mode Gain
V
CM
= Op Amp’s Common Mode
Input Voltage
V
OST
= Op Amp’s Total Input Offset
Voltage
(V/V)
(V)
(mV)
C
B2
1 µF
V
OUT
R
F
100 kΩ
C
F
6.8 pF
R
L
10 kΩ
C
L
60 pF
V
L
FIGURE 1-1:
AC and DC Test Circuit for
Most Specifications.
DS22141A-page 4
©
2009 Microchip Technology Inc.
MCP6L91/1R/2/4
2.0
Note:

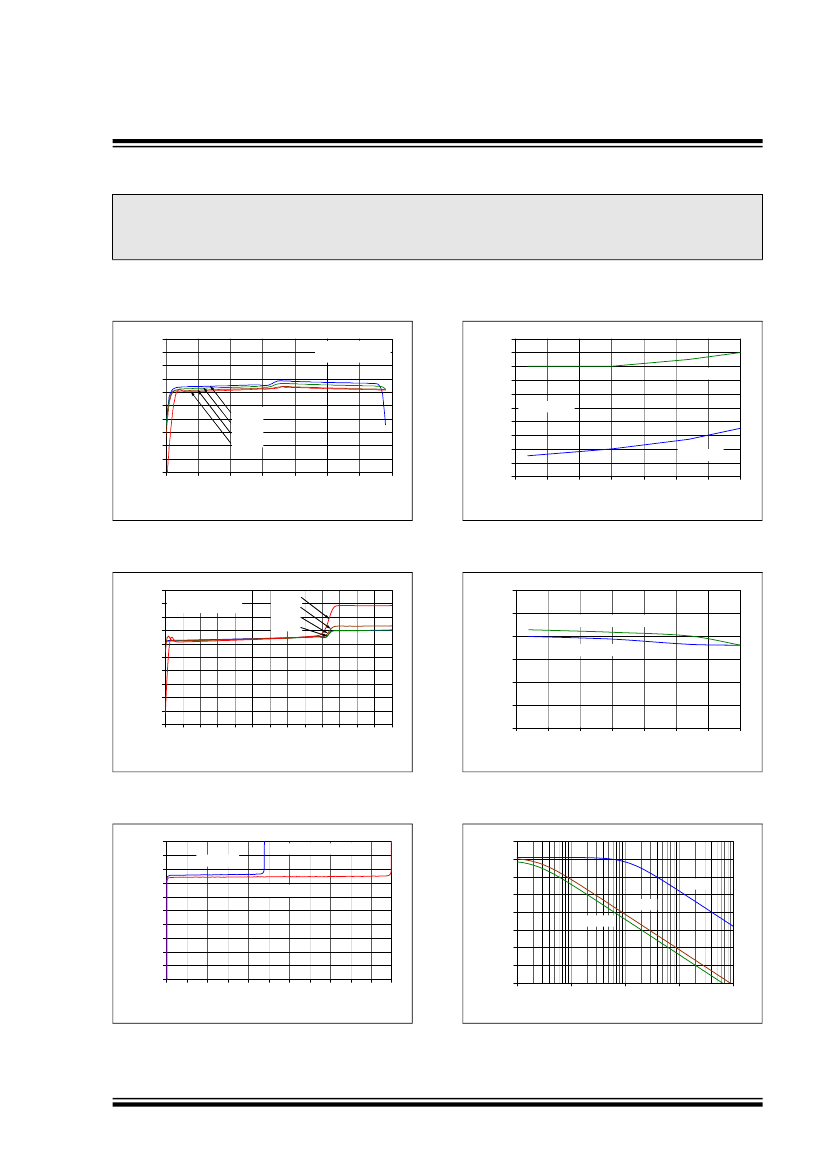

TYPICAL PERFORMANCE CURVES
The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
Note:
Unless otherwise indicated, T
A
= +25°C, V
DD
= 5.0V, V
SS
= GND, V
CM
= V
SS
, V
OUT
= V
DD
/2, V
L
= V
DD
/2,
R
L
= 10 kΩ to V
L
and C
L
= 60 pF.
1.0
0.8
0.6
0.4
0.2
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
0.0
-0.5
Input Offset Voltage (mV)
Common Mode Range (V)
V
DD
= 2.4V
Representative Part
-40°C
+25°C
+85°C
+125°C
2.0
2.5
0.5
1.0
1.5
3.0
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
V
CMRH
– V
DD
One Wafer Lot
V
CMRL
– V
SS
-50
-25
Common Mode Input Voltage (V)
0
25
50
75
Ambient Temperature (°C)
100
125
FIGURE 2-1:
Input Offset Voltage vs.
Common Mode Input Voltage at V
DD
= 2.4V.
1.0
0.8
0.6
0.4
0.2
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
FIGURE 2-4:
Input Common Mode Range
Voltage vs. Ambient Temperature.
100
95
CMRR, PSRR (dB)
90
PSRR (V
CM
= V
SS
)
CMRR (V
CM
= V
CMRL
to V
CMRH
)
Input Offset Voltage (mV)
V
DD
= 5.5V
Representative Part
+125°C
+85°C
+25°C
-40°C
85
80
75
70
-50
-25
0
25
50
75
Ambient Temperature (°C)
100
125
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Common Mode Input Voltage (V)
6.0
FIGURE 2-2:
Input Offset Voltage vs.
Common Mode Input Voltage at V
DD
= 5.5V.
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
FIGURE 2-5:
Temperature.
100
90
CMRR, PSRR (dB)
80
70
CMRR, PSRR vs. Ambient
Representative Part
V
DD
= 1.8V
Input Offset Voltage (mV)
V
DD
= 5.5V
CMRR
PSRR–
60
50
40
30
PSRR+
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
Output Voltage (V)
20
10
1.E+01
100
1.E+02
1k
10k
1.E+03
1.E+04
Frequency (Hz)
100k
1.E+05
FIGURE 2-3:
Output Voltage.
Input Offset Voltage vs.
FIGURE 2-6:
Frequency.
CMRR, PSRR vs.
©
2009 Microchip Technology Inc.
DS22141A-page 5
