CPOZB245-1.500TS datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CPOZB245-1.500TS

CPOZB245-1.500TS: DescriptionHCMOS/TTL Output Clock Oscillator, 1.5MHz Min, 70MHz Max, 1.5MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size702KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CPOZB245-1.500TS Overview

HCMOS/TTL Output Clock Oscillator, 1.5MHz Min, 70MHz Max, 1.5MHz Nom, ROHS COMPLIANT PACKAGE-4

CPOZB245-1.500TS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e3
Manufacturer's serial number	CPO
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	70 MHz
Minimum operating frequency	1.5 MHz
Nominal operating frequency	1.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	10 TTL, 50 pF
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMDIP4,.4,200
physical size	14.0mm x 9.8mm x 4.7mm
power supply	5 V
Certification status	Not Qualified
longest rise time	8 ns
Maximum slew rate	23 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

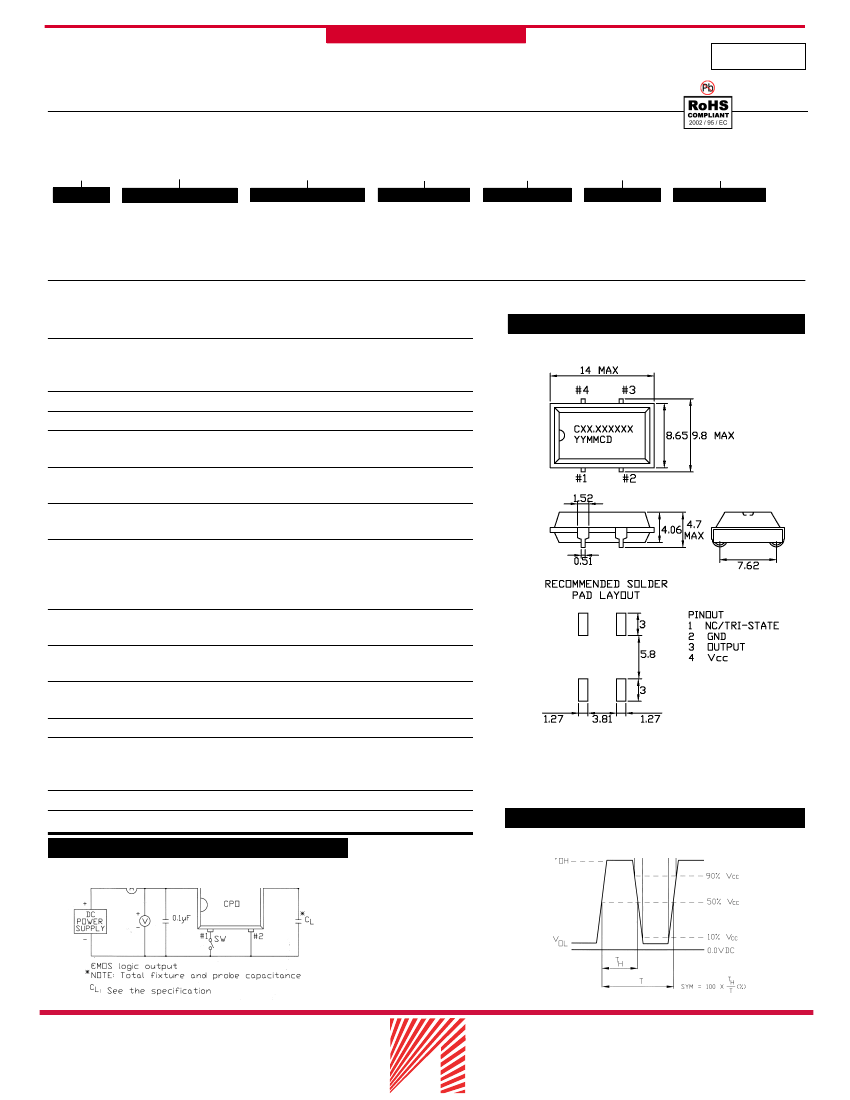

Surface Mount Clock Oscillator

• Tristate capable

• TTL/HCMOS compatible

CARDINAL COMPONENTS

Series CPO

Part Numbering Example: CP0 Z A2 B2 45 - 33.333 TS

CPO

SYMMETRY

Blank = 40/60%

45 = 45/55%

33.333

FREQUENCY

TRI STATE

Tri State Standard

SERIES

CPO

ADDED FEATURES

BLANK = BULK PACK

Z = TAPE AND REEL

OPERATING TEMP.

Blank = 0°C ~

70°C

40°C ~

85°C

STABILITY

Blank = ±100 ppm

= ± 50 ppm

Specifications:

Frequency Range:

1.500 MHz to 70.000 MHz

CPO

Available Stability Options:

±100 ppm

±50 ppm

±25 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Output Voltage:

Output Load:

Maximum Input Current:

TTL/HCMOS

Standard

+5.0 VDC ±10%

-10°C to +70°C

-40°C to +85°C

= 0.5 V Max.

= 4.5 V Min.

10 TTL or 50 pf (1.500 to 49.999 MHz)

10 TTL or 30 pf (50.000 to 70.000 MHz)

(1.500 to 26.999 MHz)

(27.000 to 29.999 MHz)

(30.000 to 49.999 MHz)

(50.000 to 69.999 MHz)

Standard

Maximum Rise/Fall Time:

Duty Cycle:

Maximum Frequency

Aging at +25°C:

Max. Start-Up Time:

Tristate Input:

8 ns (1.500 to 49.999 MHz)

7 ns (50.000 to 70.000 MHz)

40/60%

45/55%

±5 ppm/yr

10 ms

+0.80 VDC Max. to Disable

+3.60 VDC Min. to Enable

or open to Enable

-55°C to +125°C

Tape and Reel (1K per Reel)

Storage Temperature:

Package:

OUTPUT WAVE FORM

TEST CIRCUIT

155 Route 46 West

Wayne, NJ 07470

Rev: C-090414-11

Cardinal Components, Inc.

O-17

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
