CDBLB455KCAX25-B0 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> CDBLB455KCAX25-B0

CDBLB455KCAX25-B0: DescriptionCeramic BPF, CERAMIC PACKAGE-2; CategoryAnalog mixed-signal IC filter; File Size343KB，20 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

CDBLB455KCAX25-B0 Overview

Ceramic BPF, CERAMIC PACKAGE-2

CDBLB455KCAX25-B0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	AREA EXPANSION MODE; LEAD TYPE; QUADRATURE DETECTION; BULK
filter type	CERAMIC BPF
high	6.3 mm
length	6 mm
Installation type	THROUGH HOLE MOUNT
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
physical size	L6.0XB3.0XH6.3 (mm)/L0.236XB0.118XH0.248 (inch)
width	3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Please read rating and

!CAUTION

(for storage and operating, rating, soldering and mounting, handling) in this catalog to prevent smoking and/or burning, etc.

!Note

•Please read rating and

!CAUTION

(for storage and operating, rating, soldering and mounting, handling) in this PDF catalog to prevent smoking and/or burning, etc.

•This catalog has only typical specifications. Therefore, you are requested to approve our product specification please approve our product specification or transact the approval sheet for product specification before ordering.

This catalog has only typical specifications because there is no space for detailed specifications. Therefore, or to transact the approval sheet for product specificaion before ordering.

P05E11.pdf 02.9.2

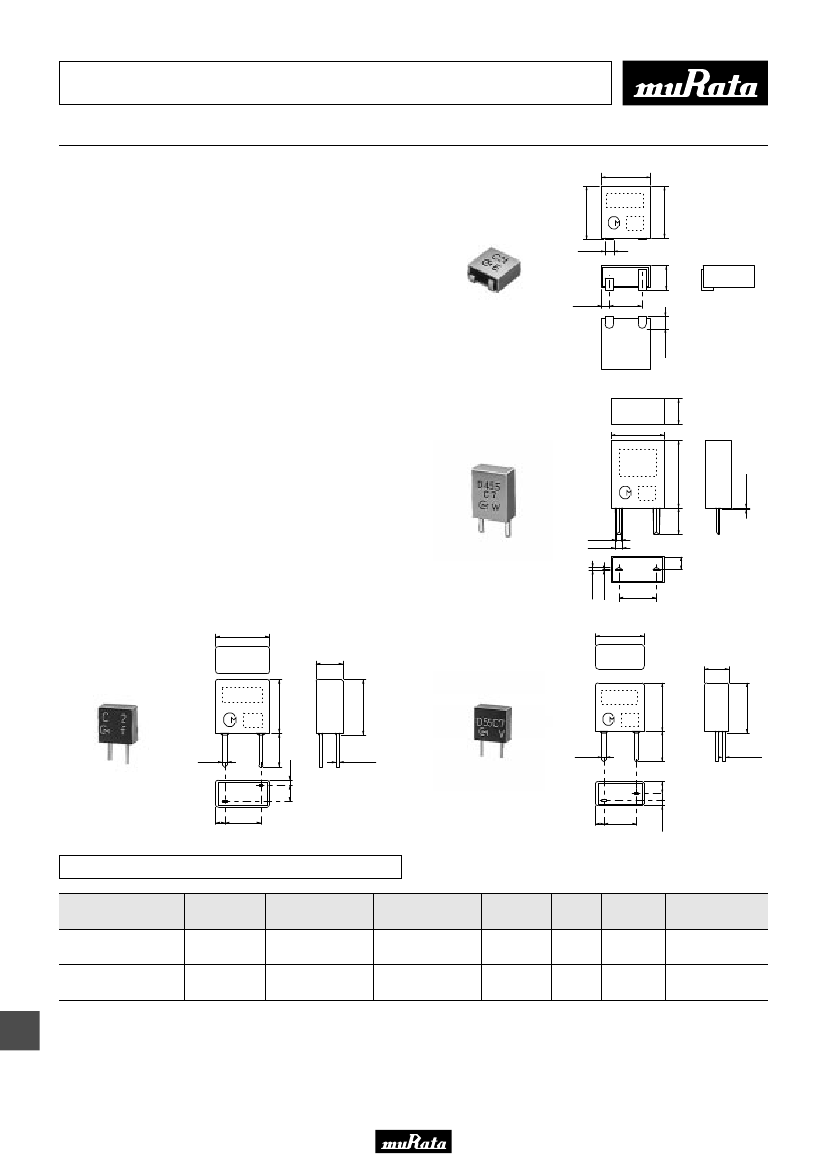

Ceramic Filters (CERAFILr)/Ceramic Discriminators for Communications Equipment

kHz Type Ceramic Discriminators

6.0±0.2

Ceramic discriminator consists of wide band

piezoelectric resonator.

It is ideal for mobile communication equipments due to

its small size and light weight.

Standard line include products for wide range of

application, from cordless telecom to cellular

telephone, making non-adjustment and shrinking of the

detection circuit possible.

CDBCB Series

6.6±0.3

EIAJ

CODE

1.0±0.1

3.1max.

1.15±0.2

3.7±0.2

1.5±0.3

Features

1. Small in size and light weight.

2. Realize no-adjustment in detection circuit.

3. High sensitivity and stability.

4. Wide range of standard products are available for

various ICs.

5. Operating temperature range : -20 to +80 (degree C)

Storage temperature range : -40 to +85 (degree C)

6.2±0.2

MARKING

(in mm)

7.0±0.3

9.0±0.3

MARKING

3.5±0.3

EIAJ

CODE

0.8±0.1

1.1±0.1

3.5±0.5

0.25±0.05

0.1±0.05

CDBLA Series

1.75±0.5

5.0±0.2

(in mm)

6.0±0.2

3.0±0.3

6.0max.

MARKING

EIAJ

CODE

EIAJ

CODE

4.2±0.5

1.8±0.2 0.6±0.2

0.5±0.1

0.15±0.05

0.5±0.1

4.2±0.5

0.15±0.05

1.0±0.3

1.5±0.3

CDBLB_CAX Series

4.2±0.2

0.9±0.2

CDBLB_CAY Series

(in mm)

4.2±0.2

0.9±0.2

0.5±0.2

(in mm)

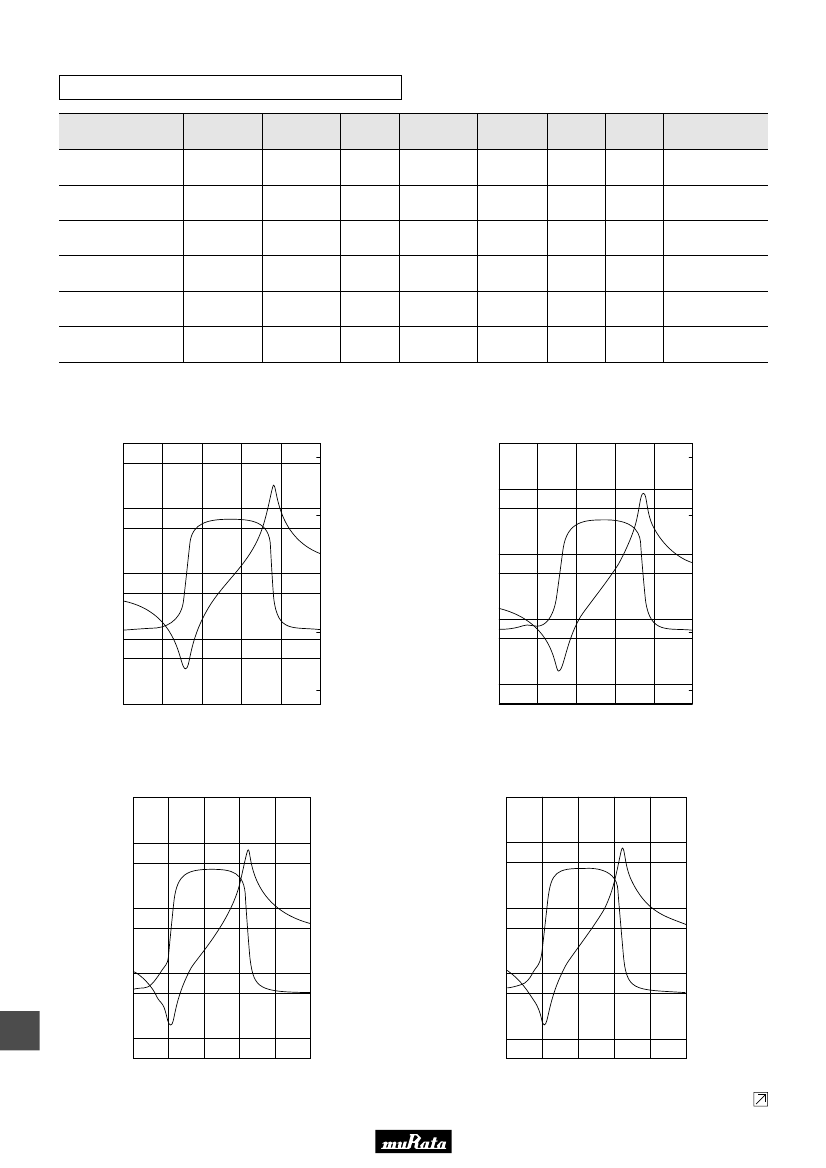

Specified by Impedance Characteristics 1

Part Number

CDBLB455KCAX02-B0

CDBLB455KCAX31-B0

Nominal Center

Inclination of

Frequency (fn)

Impedance Curve(1)

(kHz)

455

447.0±1.5kHz

(at |Z|=2.05kohm)

447.0±1.5kHz

(at |Z|=2.05kohm)

Inclination of

Capacitance

Impedance Curve(2)

(C)

463.0±1.5kHz

(at |Z|=10.0kohm)

463.0±1.5kHz

(at |Z|=10.0kohm)

140pF±20%

TA8104F

TA31141

IC Maker

TOSHIBA

Type

PLASTIC

6.3max.

MARKING

6.3max.

1.5max.

Recommended Resources

Comparison between hard board PCB and soft board FPC

TDA2030 audio power amplifier circuit diagram

Audio DA converter and amplifier circuit

Constant current drive LED circuit based on LM2734

Boost circuit diagram composed of LAS6350 and VDMOS
