C-15-001A-P-SHI-O-GR datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> C-15-001A-P-SHI-O-GR

C-15-001A-P-SHI-O-GR: DescriptionLaser Diode Module Emitter, 1530nm Min, 1570nm Max, Through Hole Mount, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Optical fiber; File Size160KB，4 Pages; ManufacturerSource Photonics; Environmental Compliance

Download Datasheet Parametric View All

C-15-001A-P-SHI-O-GR Overview

Laser Diode Module Emitter, 1530nm Min, 1570nm Max, Through Hole Mount, ROHS COMPLIANT PACKAGE

C-15-001A-P-SHI-O-GR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Built-in features	ISOLATOR, MONITOR PHOTODIODE
Communication standards	GR-468
Fiber optic equipment types	LASER DIODE MODULE EMITTER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1570 nm
Minimum operating wavelength	1530 nm
Nominal operating wavelength	1550 nm
Spectral width	3 nm
Supply current	30 mA
Maximum supply voltage	1.5 V
Nominal supply voltage	1.2 V
surface mount	NO
Minimum threshold current	10 mA
Transmission type	DIGITAL
Base Number Matches	1

Preview

Download Datasheet

View All

P/N: C-15-001A-P-SXXXI/XXX-X-XX

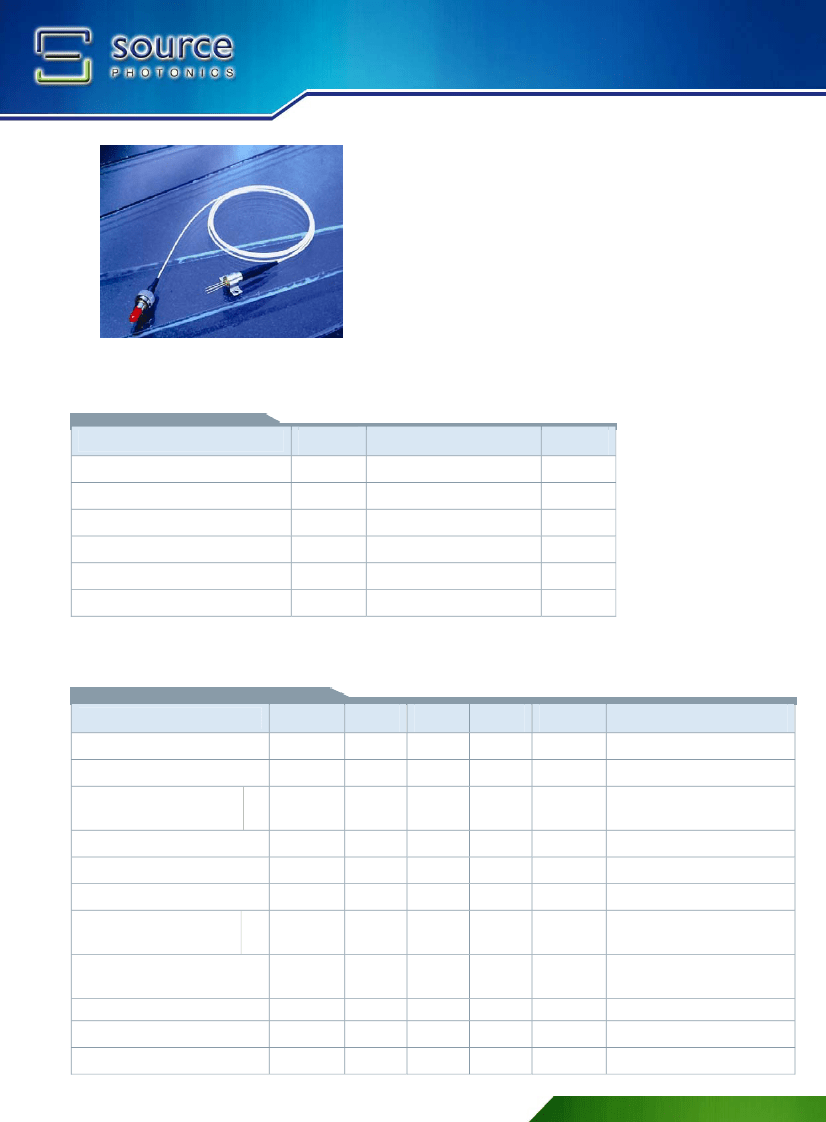

Analog 1550nm Laser Diode Module

Features

Laser diode with Multi-quantum-well structure

Un-cooled operation at -40 to +85°C

Built-in InGaAs monitor photodiode

Hermetically sealed active component

Complies with Telcordia Technologies GR-468-CORE

Fiber pigtailed with optional FC/ST/SC/MU/LC connector

Design for analog fiber optics application

RoHS Compliant available

Absolute Maximum Ratings (Tc=25°C)

Parameter

Fiber Output Power

LD Reverse Voltage

PD Reverse Voltage

PD Forward Current

Operating Temperature

Storage Temperature

H/2

Symbol

RLD

RPD

FPD

opr

stg

Rating

2(H)/2.6(2)

-40 ~ 85

Unit

°C

(All optical data refer to a coupled 9/125μm SM fiber)

Optical and Electrical Characteristics (Tc=25°C)

Parameter

Threshold Current

Operating Current

Optical Output Power

Operating Voltage

Center Wavelength

Spectral Width (RMS)

Slope Efficiency

Optical Isolation

Rise Time / Fall Time

Relative Intensity Noise

Second Order Distortion

Symbol

Ith

Δλ

/ T

RIN

SSO

Min.

1530

0.04

0.066

Typ.

2.4

1.2

1550

0.083

-145

DS-5741 Rev 0.0 2009-09-10

Max.

1.5

1570

0.08

0.3

-140

-50

Unit

mW/mA

Notes

CW, Ith+25mA, kink free

CW, Ith+30mA, kink free

CW, Pf = Pf (Min)

-40°C < T

< 85°C

Ibias=Ith, 10%~90%

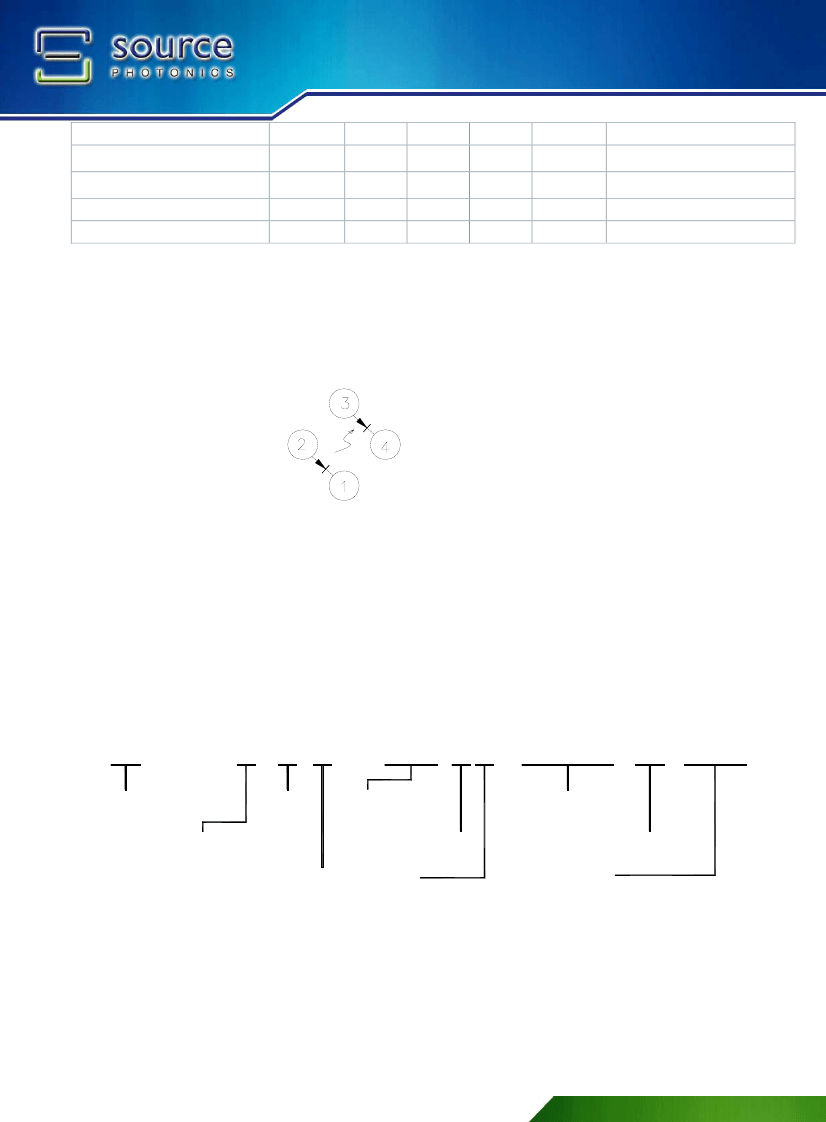

Note 1

dB/Hz

dBc

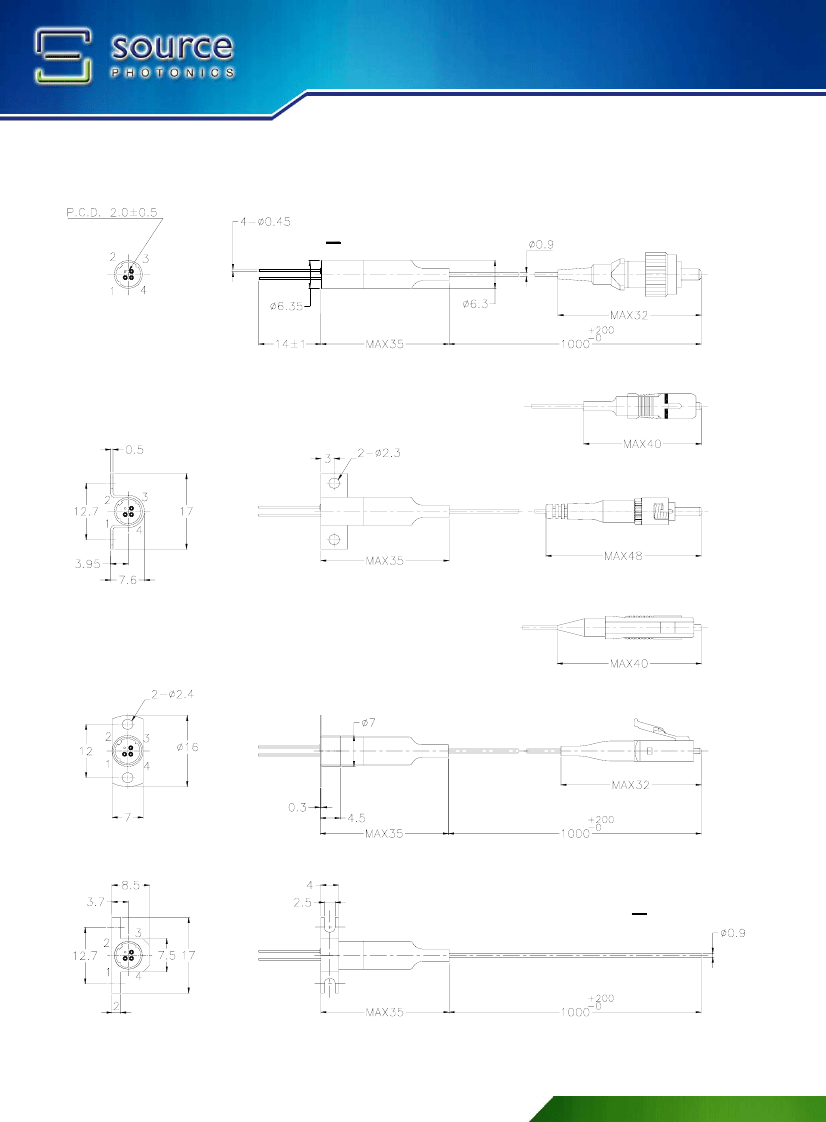

P/N: C-15-001A-P-SXXXI/XXX-X-XX

Analog 1550nm Laser Diode Module

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static

free environment is highly recommended. Follow guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or

indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Source Photonics’s sole and

absolute discretion. Source Photonics warrants performance of its products to current specifications only in

accordance with the company’s standard one-year warranty; however, specifications designated as

“preliminary”

are given to describe components only, and Source Photonics expressly disclaims any and all warranties for said

products, including express, implied, and statutory warranties, warranties of merchantability, fi tness for a particular

purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for

further warranty information.

Source Photonics assumes no liability for applications assistance, customer product design, software performance,

or infringement of patents, services, or intellectual property described herein. No license, either express or implied,

is granted under any patent right, copyright, or intellectual property right, and Source Photonics makes no

representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual

property rights. Products described in this document are NOT intended for use in implantation or other life support

applications where malfunction may result in injury or death to persons. Source Photonics customers using or

selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Source

Photonics for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN

“AS

IS” BASIS. Customer agrees

that Source Photonics is not liable for any actual, consequential, exemplary, or other damages arising directly or

indirectly from any use of the information contained in this document. Customer must contact Source Photonics to

obtain the latest version of this publication to verify, before placing any order, that the information contained herein is

current.

DS-5741 Rev 0.0 2009-09-10
