CTMC1210-471K: DescriptionGeneral Purpose Inductor, 470uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP, 1210; CategoryPassive components inductor; File Size62KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric Compare View All

CTMC1210-471K Overview

General Purpose Inductor, 470uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP, 1210

CTMC1210-471K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	40 Ω
Nominal inductance(L)	470 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTMC1210
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.025 A
self resonant frequency	4 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.796 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

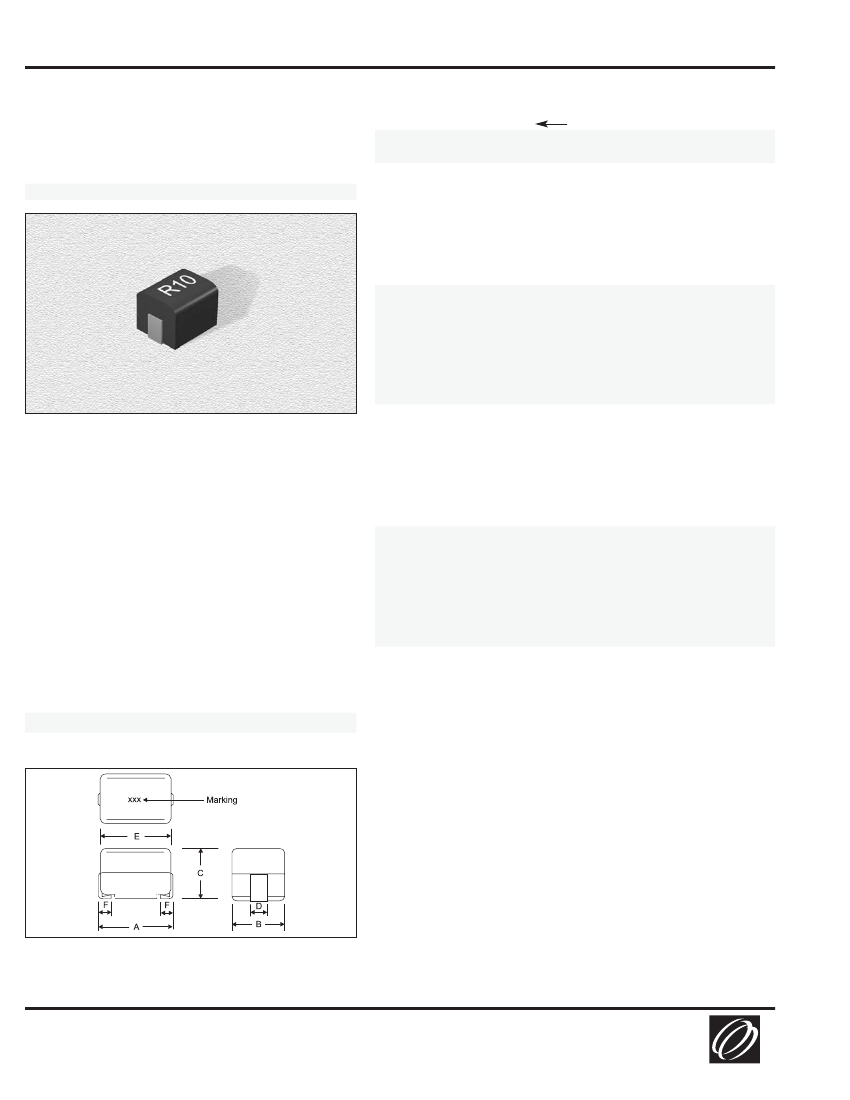

ctparts.com

Wire-wound Chip Inductors - Molded

SPECIFICATIONS

Please specify tolerance code when ordering.

CTMC1210-R010_

J = ±5%, K = ±10%, M = ±20%

Part

Number

CTMC1210-R010_

CTMC1210-R012_

CTMC1210-R015_

CTMC1210-R018_

CTMC1210-R022_

CTMC1210-R027_

CTMC1210-R033_

CTMC1210-R039_

CTMC1210-R047_

CTMC1210-R056_

CTMC1210-R068_

CTMC1210-R082_

CTMC1210-R10_

CTMC1210-R12_

CTMC1210-R15_

CTMC1210-R18_

CTMC1210-R22_

CTMC1210-R27_

CTMC1210-R33_

CTMC1210-R39_

CTMC1210-R47_

CTMC1210-R56_

CTMC1210-R68_

CTMC1210-R82_

CTMC1210-1R0_

CTMC1210-1R2_

CTMC1210-1R5_

CTMC1210-1R8_

CTMC1210-2R2_

CTMC1210-2R7_

CTMC1210-3R3_

CTMC1210-3R9_

CTMC1210-4R7_

CTMC1210-5R6_

CTMC1210-6R8_

CTMC1210-8R2_

CTMC1210-100_

CTMC1210-120_

CTMC1210-150_

CTMC1210-180_

CTMC1210-220_

CTMC1210-270_

CTMC1210-330_

CTMC1210-390_

CTMC1210-470_

CTMC1210-560_

CTMC1210-680_

CTMC1210-820_

CTMC1210-101_

CTMC1210-121_

CTMC1210-151_

CTMC1210-181_

CTMC1210-221_

CTMC1210-271_

CTMC1210-331_

CTMC1210-391_

CTMC1210-471_

Inductance

(µH)

.010

.012

.015

.018

.022

.027

.033

.039

.047

.056

.068

.082

.10

.12

.15

.18

.22

.27

.33

.39

.47

.56

.68

.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

L Test

Freq.

(MHz)

100

25.2

7.96

2.52

.796

Q

Fact.

Min.

15

17

19

21

23

25

26

27

28

30

20

Q Test

Freq.

(MHz)

100

25.2

7.96

2.52

.796

SRF

Min.

(MHz)

2500

2300

2100

1900

1700

1500

1400

1300

1200

1100

1000

900

700

500

450

400

350

320

300

250

220

180

160

140

120

100

85

80

75

70

60

55

50

47

43

40

36

33

30

27

25

20

17

16

15

13

12

11

10

8.0

7.0

6.0

5.0

4.0

Ver. 8.3

CTMC1210 Series

From .01 µH to 470 µH

ENGINEERING KIT # 12

Not shown at actual size.

DCR

Max.

Ω

(Ω)

.13

.14

.16

.18

.20

.22

.24

.27

.30

.33

.36

.40

.44

.22

.25

.28

.32

.36

.40

.45

.50

.55

.60

.65

.70

.75

.85

.90

1.0

1.1

1.2

1.3

1.5

1.6

1.8

2.0

2.1

2.5

2.8

3.3

3.7

5.0

5.6

6.4

7.0

8.0

9.0

10

11

15

17

21

28

34

42

40

Rated

DC

(mA)

450

400

390

370

350

320

290

260

250

220

200

180

170

150

140

130

120

110

80

70

65

60

55

50

45

40

70

65

60

50

45

40

35

25

CHARACTERISTICS

Description:

Ferrite core, wire-wound molded chip inductor

Applications:

TVs, VCRs, disk drives, computer peripherals,

telecommunication devices and electronic control boards

for automobiles

Operating Temperature:

-40°C to +100°C

Inductance Tolerance:

±5%, ±10%, ±20%

Testing:

Inductance and Q are tested on a HP4285A or a

HP4286A at a specified frequency

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

mm

inches

A

3.2±0.3

0.13±0.012

B

2.5±0.2

0.10±0.008

C

2.2±0.2

0.09±0.008

D

1

0.04

E

2.9±0.2

0.11±0.008

F

0.6

0.02

08.30.02

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

130

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

Technologies
