Rectangular Connectors
IAM-C11 · C84, CAM-C12
Connectors

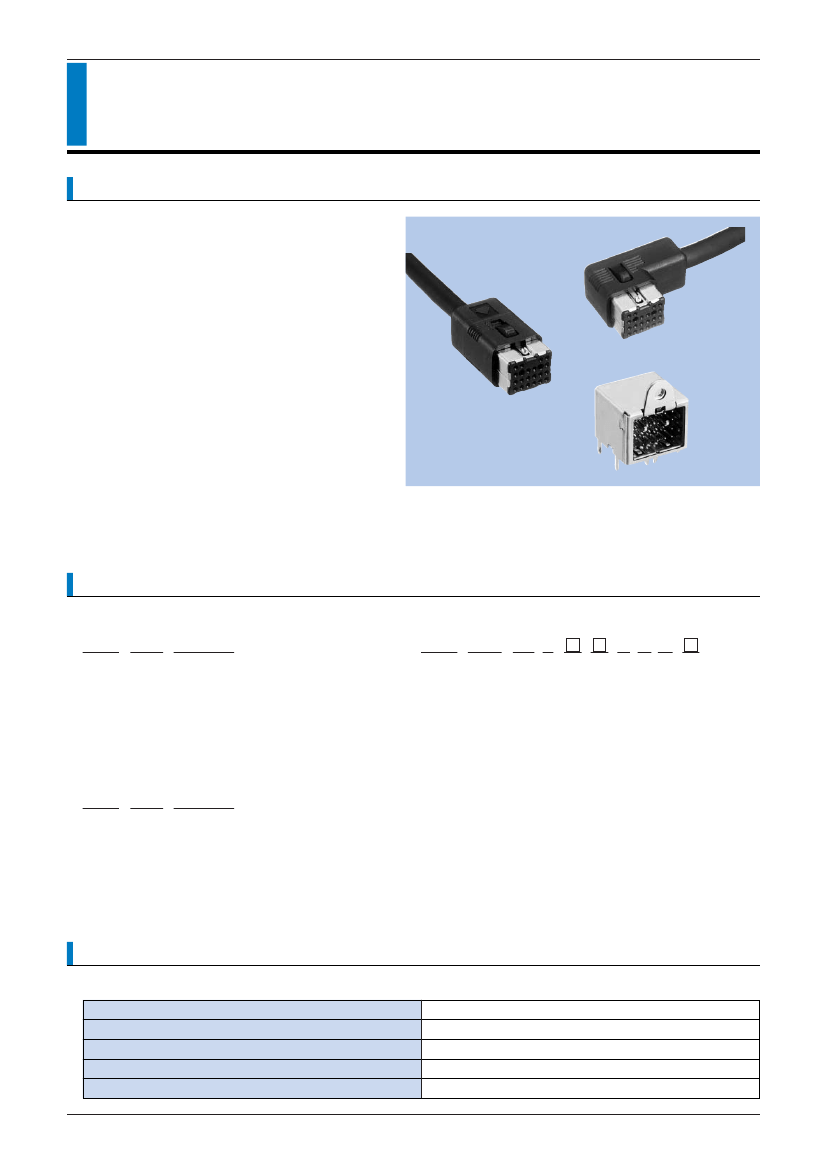

FEATURES
1. The 20 pins external interface connectors.
IAM-C11 is a cable assembly straight type
socket.
IAM-C84 is a cable assembly L type socket.
CAM-C12 is an angle dip type plug.
2 The coupling/decoupling cycle life is 200 times
and a one-touch locking mechanism is used.
In addition, the width has been reduced and
the area occupied by the circuit board
reduced.
Occupation ratio : Approx. 54% (MITSUMI
comparison)
IAM-C84 (20pins)
IAM-C11 (20pins)
CAM-C12 (20pins)
HOW TO ORDER
1. IAM-C11
3. CAM-C12
C11-020-2437A
1
2
3
1 Series No.
2 No. of contacts (020 : 20pins)
3 Product Specifications
C12-020-02 0-
1
1
2
3
4
5
2
3
4
5
6
B A A-
7 8 9 10
2. IAM-C84
C84-020-2946A
1
2
3
1 Series No.
2 No. of contacts (020 : 20pins)
3 Product Specifications
Series No.
No. of contacts (020 : 20pins)
Housing material (02 : PBT resin)
UL grade (0 : UL94V-0)
Contact plating
(A : Gold, I : Tin reflow plating)
6 Contact pin plating thickness
(G : Gold plating 0.3µ, I : Tin reflow plating 1µm)
7 Contact style (B : Angle)
8 Accessories (A : None)
9 Accessories (A : None)
10 Shield case flange (A : without, B : with)
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
14V DC
1A
500V AC (rms) 1minute
100MΩ min. (at 500V DC)
30mΩ max.
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
MITSUMI
Rectangular Connectors
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
Using Temperature Range
200 times
49N (5kgf) min.
3~49N (0.3~5kgf)
-30~+85˚C
MATERIAL & FINISH
Component Parts
Housing
Contact
IAM-C11,
IAM-C84
Shielded Case
Case
Locks
Cord Clamper
Housing
Contact
Shielded Case
Shielded Cover
Material
PBT resin
Copper Alloy
Steel
PBT resin
Copper Alloy
Aluminum
PBT resin
Copper Alloy
Copper Alloy
Steel
Finish
——
Gold plating (5,000 Times)
Tin reflow plating (200 Times)
Nickel plating
——
Nickel plating
——
——
Gold plating (5,000 Times)
Tin reflow plating (200 Times)
Tin reflow plating
Tin plating
CAM-C12

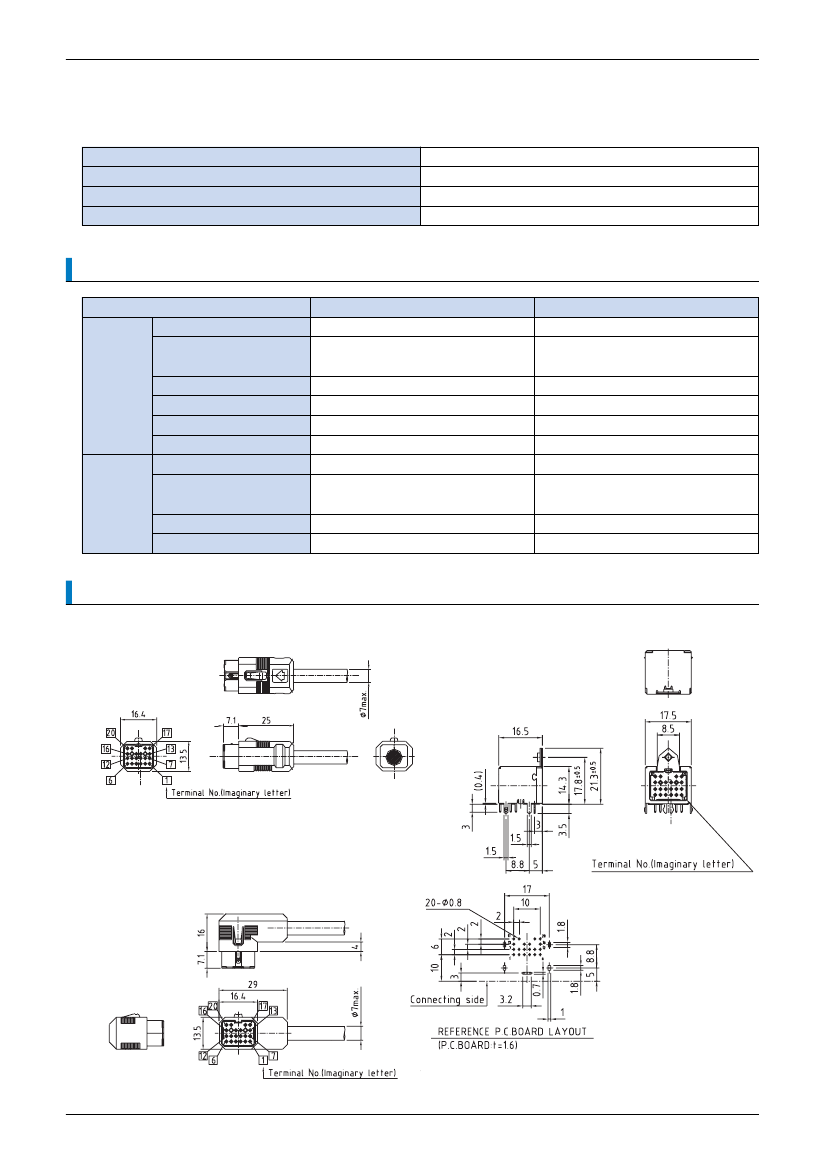

DIMENSIONS
IAM-C11 (20pins)
CAM-C12 (20pins)
IAM-C84 (20pins)
Unit : mm
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
