CFPA109-0150F: DescriptionCard Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CFPA109-0150F Overview

Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,

CFPA109-0150F Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ZIF, LOW PROFILE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FPC Connectors

EN-42

Series 0.4mm Pitch (SMT)

●

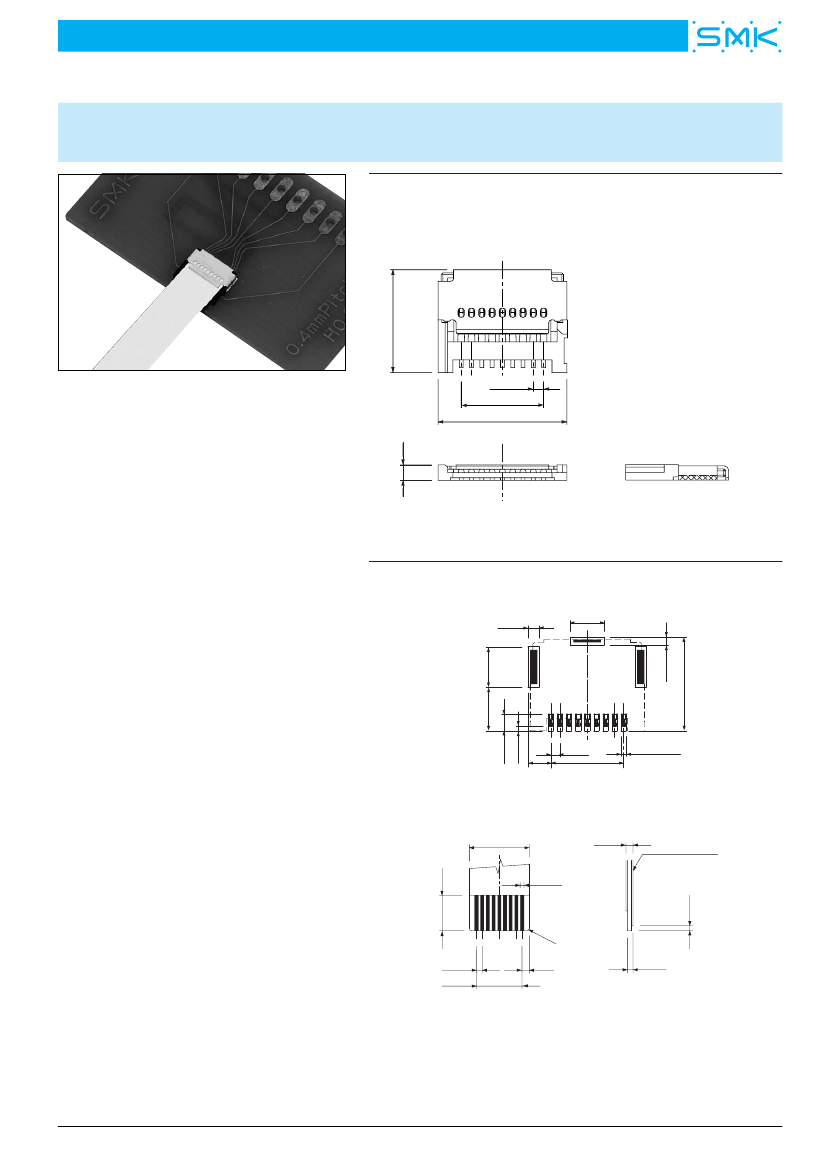

CFPA109-0150F

4

■

Features

1. Low and small profile of 0.6mm height and 4.0

mm depth when mounted.

2. The upper surface of the connector is made up of

a shield cover. Resulting provision of shielding

performance and enhancement of connector

strength further stabilize contact reliability.

Combined use with a shielded FPC will make

counter-noise efforts more effective.

3. One single action completes FPC insertion

because the contacts are of an N-ZIF structure.

4. Lower contact design.

0.4

3.2

5

■

Specification

1. Rating : 0.3A, 50V AC/DC

2. Contact Resistance : 30mΩ, max., initially

3. Insulation Resistance : 100MΩ, min. at 100V DC

4. Withstanding Voltage : 100V AC (for one minute)

5. Operating Temperature Range : –40˚C to +85˚C

■

P.C.

0.6

Board Dimension

0.5

1.5

●

Cover : Steel Use Stainless (SUS),

●

Contact : Cu Alloy, Au Plating

●

Insert Mold :Thermoplastic Resin, Black, 94V-0

0.35

0.75

0.2

0.4

1

3.2

TOLERANCE

±0.03

0.22

±0.22

1.8

■

Material and Plating

■

Applicable

FPC Dimension

(t=0.13±0.03)

4.2

±0.05

0.18

±0.03

Shield(Ag)

2.5

±0.3

1.9

0.25

–0.02

0.35

±0.15

R0

.15

+0.03

0.4

±0.03

3.2

±0.03

0.5

±0.07

0.13

±0.03

t=0.13±0.03

●

FPC plating to recommend : Au plating

4.1

11
