CELP2X97SC-3Z48 datasheet, PDF

CELP2X97SC-3Z48: DescriptionCard Edge Connector, 194 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket; CategoryThe connector The connector; File Size77KB，3 Pages; ManufacturerParadigm Technology Inc

Download Datasheet Parametric Compare View All

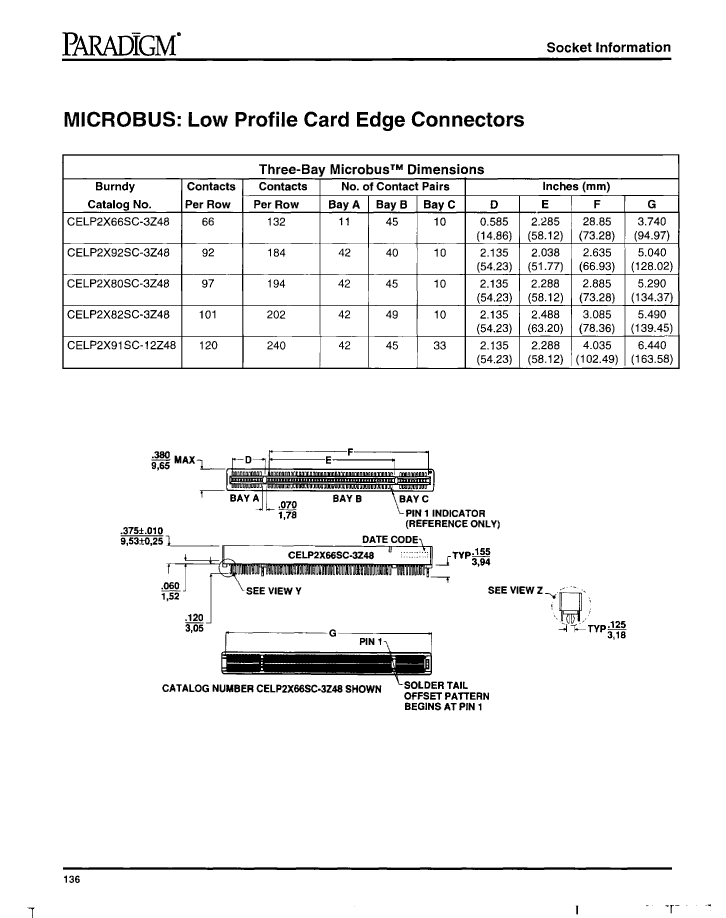

CELP2X97SC-3Z48 Overview

Card Edge Connector, 194 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket

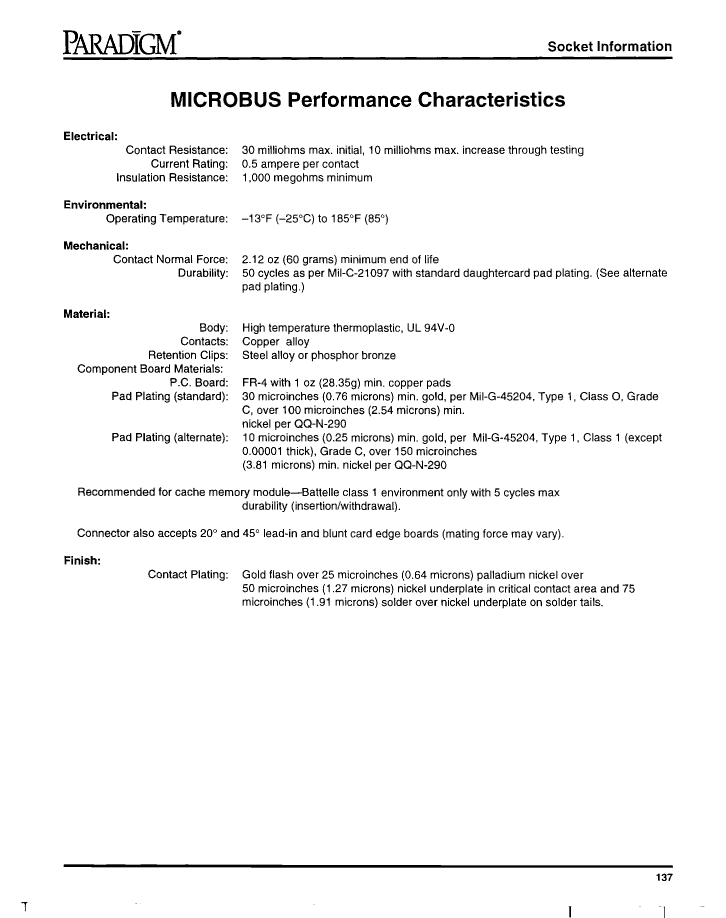

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LOW PROFILE, THREE-BAY MICROBUS
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CELP2X
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Termination type	SOLDER
Total number of contacts	194
UL Flammability Code	94V-0
Base Number Matches	1

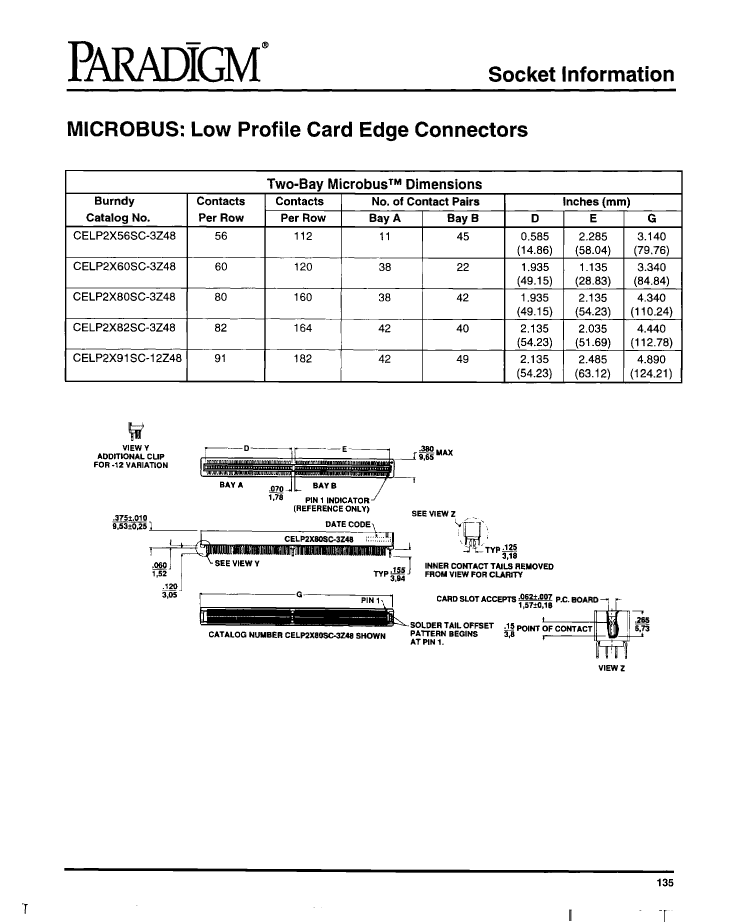

	CELP2X97SC-3Z48	CELP2X82SC-3Z48
Description	Card Edge Connector, 194 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Card Edge Connector, 164 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket
Reach Compliance Code	unknown	unknown
Other features	LOW PROFILE, THREE-BAY MICROBUS	LOW PROFILE, TWO-BAY MICROBUS
Body/casing type	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	CELP2X	CELP2X
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Termination type	SOLDER	SOLDER
Total number of contacts	194	164
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
