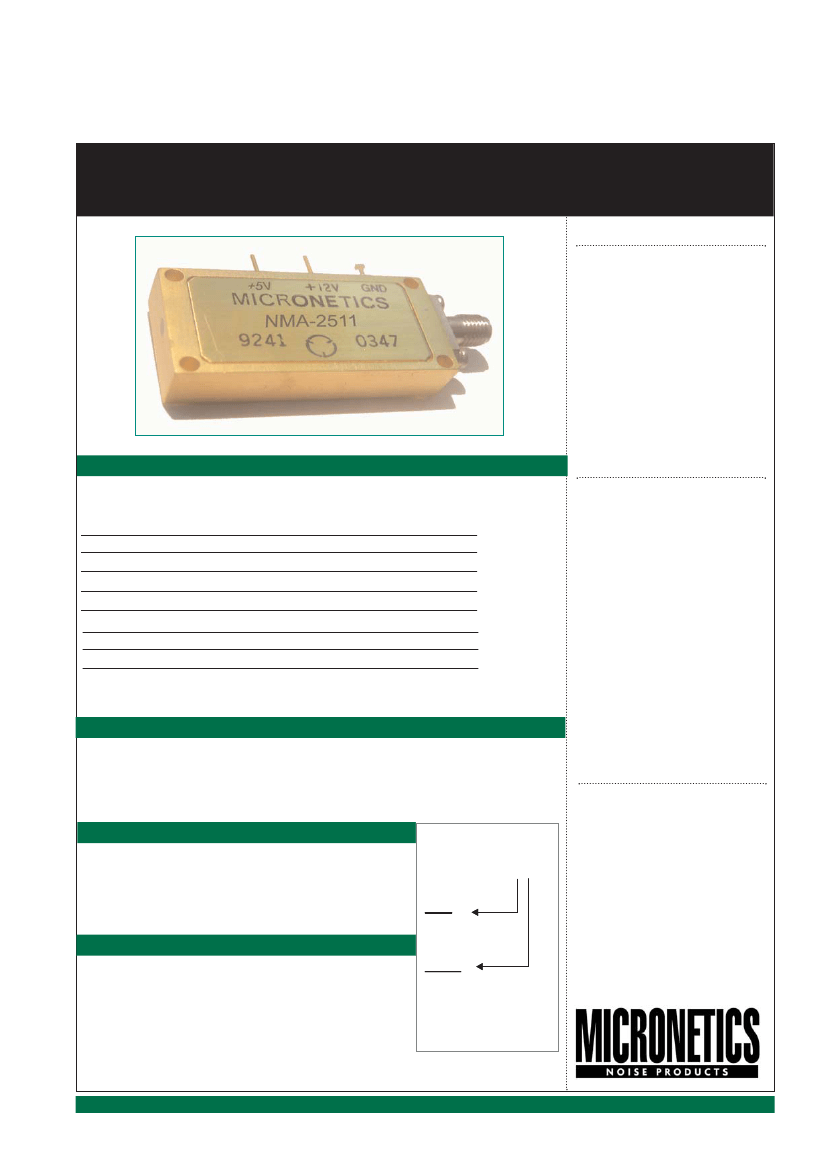

NMA 2500 SERIES DUAL BIAS NOISE MODULES

Preview

Download Datasheet

View All

NMA 2500 S

ERIES

UAL

IAS

OISE

ODULES

10 MH

Z TO

8.5 GH

5V and 12V Bias

ESCRIPTION

REV

6.2008

NMA 2500 M

ODULES

MODEL

NMA2510

NMA2511

NMA2512

NMA2513

NMA2514

NMA2515

NMA2516

NMA2517

FREQUENCY

10MHz - 1.0GHz

10MHz - 1.5GHz

10MHz - 2.0GHz

10MHz - 4.0GHz

100MHz - 6.0GHz

30MHz - 3.0GHz

7.8GHz - 8.5GHz

2.0GHz - 8.0GHz

The NMA 2500 Dual Bias Noise

Module is a compact high power

noise source ideal for appliations

in jamming, dithering, built-in test

and calibration. The dual bias

voltage allows for greater flexibitli-

ty in system integration and lower

power consumption. The NMA

2500 is packaged in a sealed

housing for ease of integration

into a wide range of military and

commerical applications.

RF SPECIFICATIONS BY MODEL NUMBER

NOISE OUTPUT LEVEL

FLATNESS

(window)

dBm/BAND

(min)

dBm/Hz

(min)

ENR(dB)

(min)

PECIFICATIONS

84.0

82.2

81.0

78.0**

74.0

78.0

74.0

■

Operating Temperature:

-30 to +85

■

Storage Temperature:

-65 to +95

■

Supply Voltage: Dual Bias

+5.0 V Bias

- Voltage Range: +/- 3%

- Current Draw @ 300 mA max

+12 V Bias

- Voltage Range: +11.8 to 18.0 V

- Current Draw @ 25 mA max

■

Output Impedance: 50 ohm

■

Peak Factor: 5:1

specifications subject to change based

on technological advances

2.0dB

3.0dB

4.0dB

3.0dB

2.0dB

4.0dB

-3

-1

-11

-2

-90.0

-91.8

-93.0

-96.0

-100.0

-96.0

-100.0

* Flatness is defined as the decibel ratio of the highest amplitude peak minus the lowest

across the frequency band.

**90 mA max.

ERFORMANCE

EST

ATA

Each unit ships standard with a spectrum analyzer plot of the noise output.

Upon special request, Micronetics can supply tabular data in text file format on CD-

ROM or floppy disk. The data points consist of power spectral density at discrete

frequency points across the frequency band.

PPLICATIONS

■

Frequency response built-in-test

(BIT) for communication receivers

■

Antenna/RF front end testing

■

70/140 MHz & L-Band modem

BER testing

■

Noise and interference simulation

■

Jamming / jamming simulation

■

Power distribution calibration of

multiple receiver systems

SEFUL

OISE

ONVERSIONS

0 dB ENR = -174 dBm/Hz

Power (dBm) = N0 +10

log

(BW)

where:

N0 = Noise spectral density in dBm/Hz

BW = Bandwidth in Hz

(equ 1)

(equ 2)

HOW TO ORDER

NMA-25XX-XX

Option

1 = Stnd

2 = TTL*

NSTALLATION

OTES

(1) Should be mounted to a thermally conductive baseplate

(2) Select style code T for mechanical clearance of

mating SMA (m) connector nut with respect to

thermally conductive baseplate

(3) Warning: when using a narrow band filter following the

noise module, use a 3 dB or reater pad to prevent

damage caused by refective power.

Package

S=Pkg Style S

T=Pkg Style T

* “1” noise on (internal pull-up)

“0” noise off

MICRONETICS / 26 HAMPSHIRE DRIVE / HUDSON, NH 03051 / TEL: 603-883-2900 / FAX: 603-882-8987

WEB: WWW.MICRONETICS.COM
