DN74LS280 datasheet, PDF - EEWORLD Datasheet

DN74LS280: DescriptionParity Generator/Checker, TTL, PDIP14; Categorylogic logic; File Size90KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

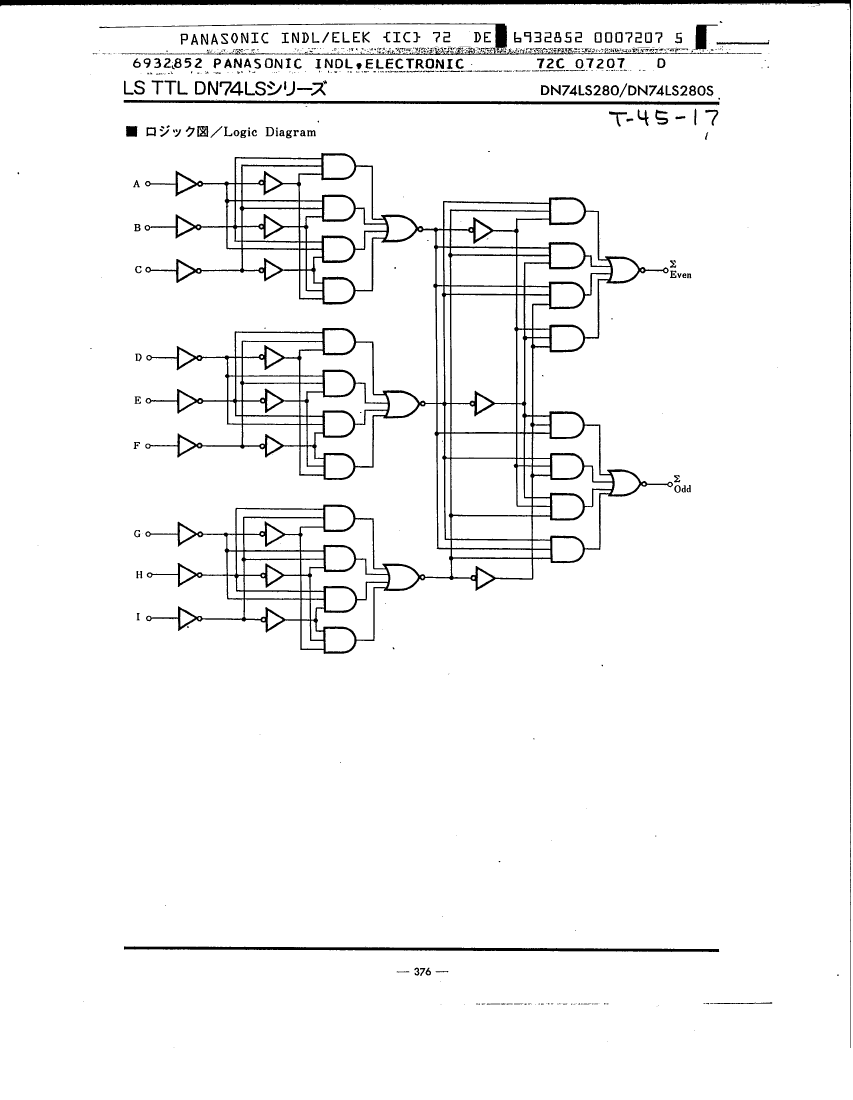

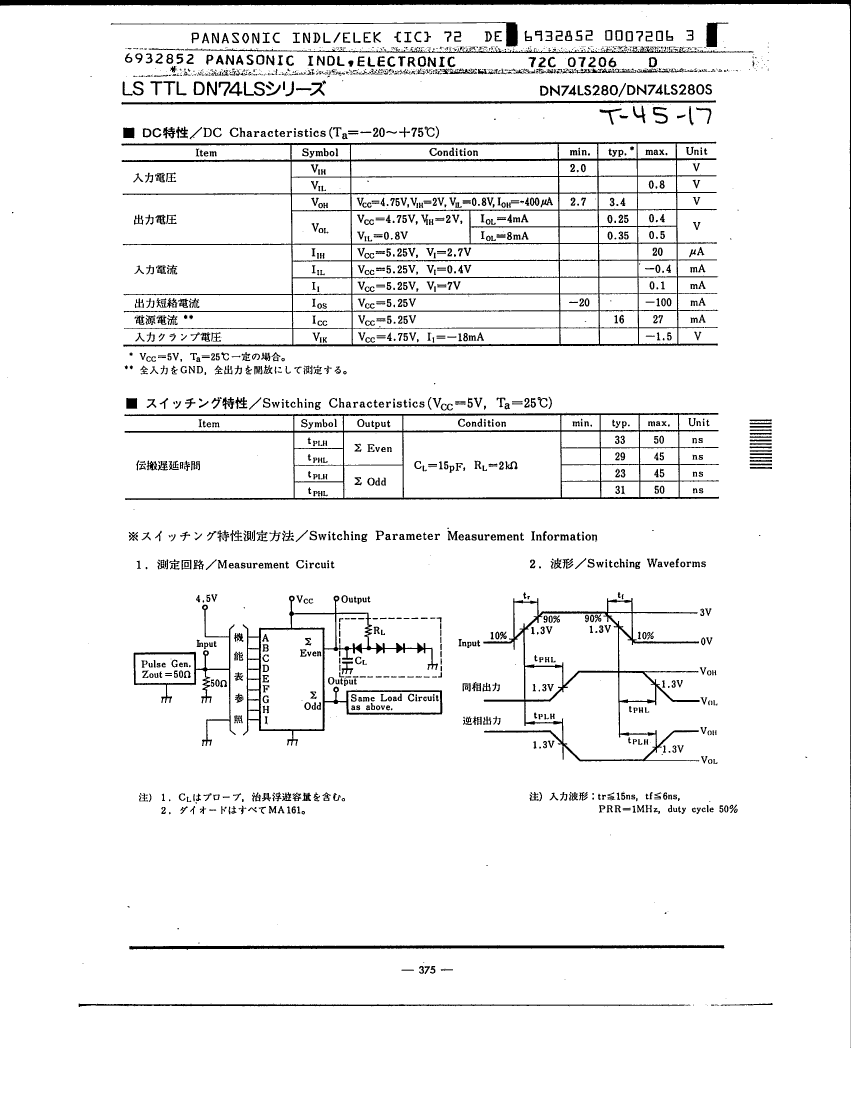

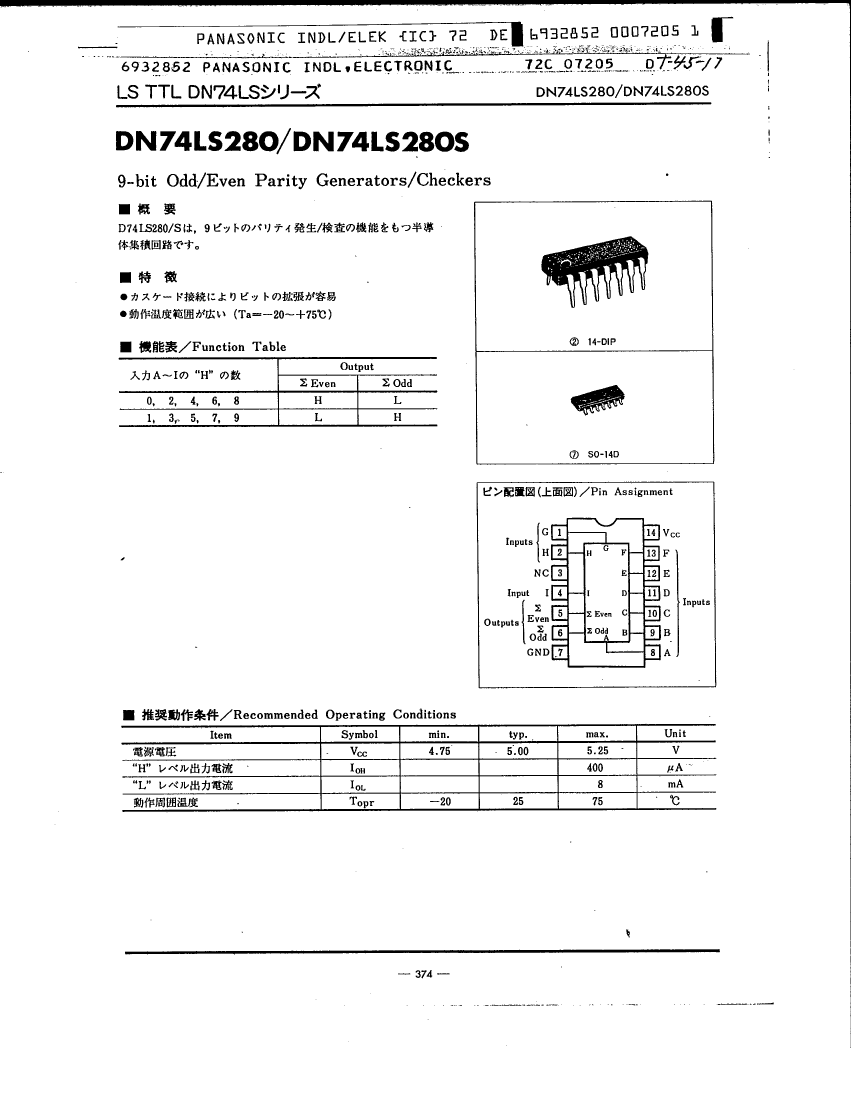

DN74LS280 Overview

Parity Generator/Checker, TTL, PDIP14

Parameter Name	Attribute value
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
Logic integrated circuit type	PARITY GENERATOR/CHECKER
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	DN74LS280	DN74LS280S
Description	Parity Generator/Checker, TTL, PDIP14	Parity Generator/Checker, TTL, PDSO14
package instruction	DIP, DIP14,.3	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T14	R-PDSO-G14
Logic integrated circuit type	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
