DGB9F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DGB9F

DGB9F: DescriptionRectangular Connector Adapter, 9 Contacts(Side1), 9 Contacts(Side2), Cable Mount, Female-Female, ROHS COMPLIANT; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerL-com Global Connectivity; Environmental Compliance

Download Datasheet Parametric View All

DGB9F Overview

Rectangular Connector Adapter, 9 Contacts(Side1), 9 Contacts(Side2), Cable Mount, Female-Female, ROHS COMPLIANT

DGB9F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold Flash (Au)
Contact point gender	FEMALE-FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
触点数量:侧 1	9
触点数量:侧 2	9
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
direct connection	YES
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

REV

REVISIONS

DESCRIPTION

ECN #1630 - CHG'D COMPONENT SPECIFICATION TABLE

REVISED;ADDED HARDWARE DETAIL (ECN #1284)

REVISED;UPDATED ELECTRICAL SPECS

ECN# 2698; REVISED SHEET TOLERANCE

DATE

01/05/04

01/06/03

02/21/03

01/17/07

APPROVED

B.MAZEJKA

MCCORMICK

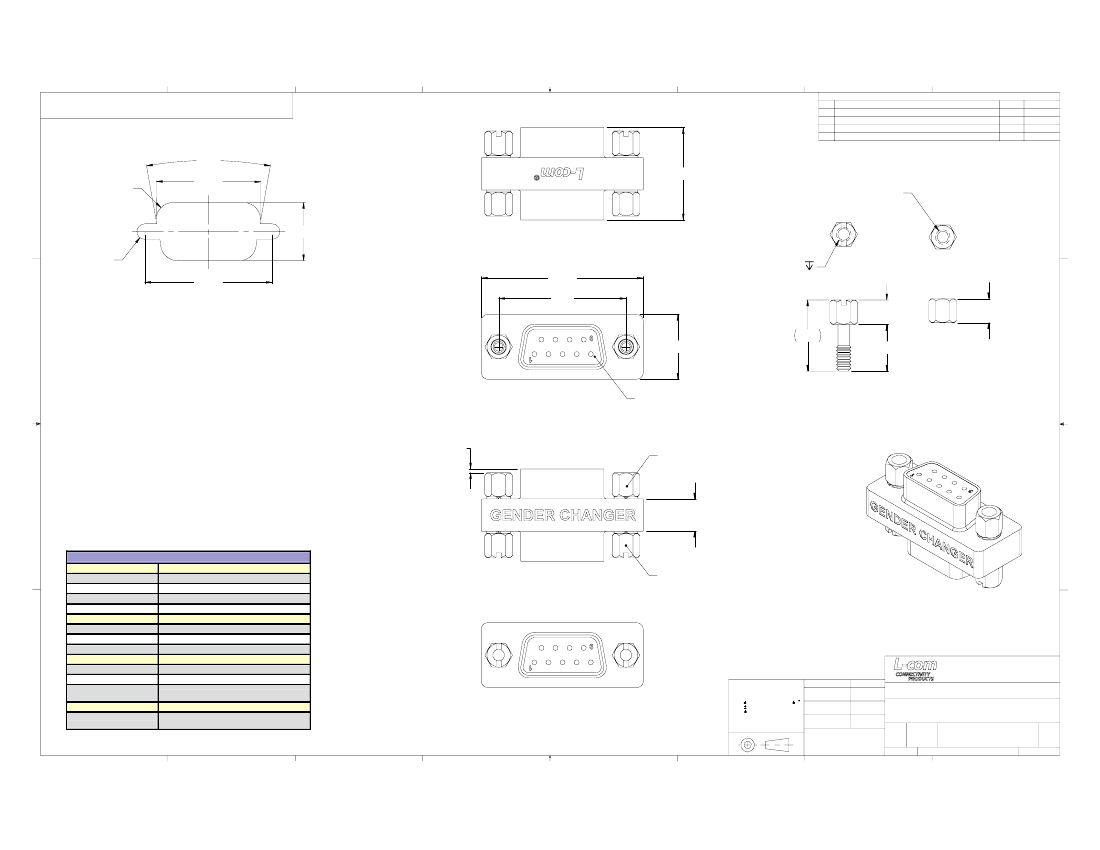

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN

PERMISSION OF L-COM, INC. IS PROHIBITED.

20°

4X R.130

.806

.70

4-40 UNC-2B THRU

.450

2X R.06

.984

RECOMMENDED PANEL OPENING

(MAX PANEL THICKNESS: 0.06")

1.25

.98

.19±.01

.51

.55

.36±.01

4-40 UNC-2B

X .180

.19±.01

2X FEMALE, 9 PIN

D-SUB CONNECTOR

+.00

4 X .03

- .03

JACKSCREW & HEX STANDOFF

SPECIFICATION

APPLICATION NOTES:

ALL PINS WIRED STRAIGHT THROUGH

LABELING:

PANTONE 2945 BLUE. "L-COM" FONT MyriaMM ITALIC.

"GENDER CHANGER" FONT ARIAL BOLD, TEXT HEIGHTS; .085"

TEXT COLOR; WHITE.

2X 4-40 HEX STANDOFF

.23

Component Specifications

Material

Shell

Contacts/Terminals

Hardware

Insulator

Finish

Shell

Contacts/Terminals

Hardware

Electrical

Tin/Nickel Plated

Gold Flash Plated: 1 – 1.5μ inches

Nickel Plated

3 AMP

1000 MΩ Min @ 500 VDC

1000 VAC (for One minute)

DIMENSIONS ARE IN INCHES [mm]

UNLESS OTHERWISE SPECIFIED,

TOLERANCES TO BE:

ANGLES 2

.X .1 [2.5]

.XX .05 [1.3]

.XXX .005 [.13]

OVERALL CABLE LENGTH TOL:

≤

60 [1524] +3 [76.2] / - 0

> 60 [1524] +5% / -0%

PROJ

APPROVALS

DRAWN BY

D.PARHAM

CHECKED BY

T.CLARK

APPROVED BY

R.CARRICK

DATE

11/12/2001

PRODUCT DESCRIPTION

11/12/2001

11/13/2001

SIZE
