D4C0406N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> D4C0406N

D4C0406N: DescriptionRotary Switch, 2 Positions, DP6T, Momentary, 1.5A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size74KB，2 Pages; ManufacturerElectroswitch

Download Datasheet Parametric Compare View All

D4C0406N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D4C0406N	-	-	View	Buy Now

D4C0406N Overview

Rotary Switch, 2 Positions, DP6T, Momentary, 1.5A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded

D4C0406N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	SHAFT TYPE
body height	30.48 mm
Body length or diameter	36.5 mm
Contact (AC) maximum rated R load	.5A@115VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	1.5 A
Contact (DC) maximum rated R load	1.5A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Graduation angle	30 deg
Manufacturer's serial number	D4
Installation features	PANEL MOUNT-THREADED
Number of positions	2
Number of switching segments	2
surface mount	NO
Switch action	MOMENTARY
switch function	DP6T
Switch type	ROTARY SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

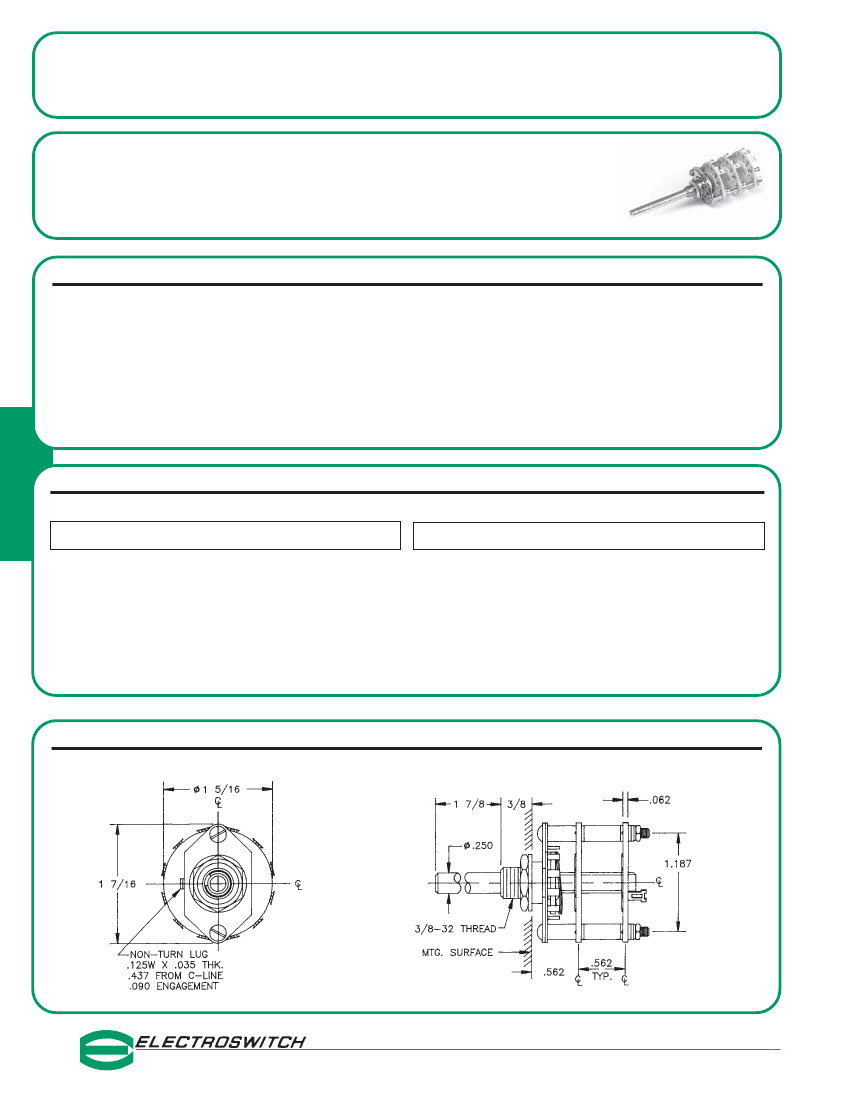

D4 - SERIES

SPECIFICATIONS AND ORDERING INFORMATION

1.437" DIAMETER 1.5 AMPS @ 28 VDC

The D4 Series switch is the most economical and versatile switch in our

open frame rotary line. This series offers the quality feel of a ball and spring

index mechanism and is available with up to 12 positions and 30° or 60°

indexing.

SPECIFICATIONS

ELECTRICAL

Current and Voltage Rating:

Make and break resistive load

1.5 amps @ 28 VDC; 0.5 amp @ 115 VAC.

Current Carrying Capacity:

9 amps.

Dielectric Strength:

1,500 VAC between current carrying parts and

ground.

Contact Resistance:

Average initial 3.5 milliohms.

Insulation Resistance:

Glass epoxy in excess of 750,000 megohms.

Ceramic in excess of 1,000,000 megohms.

Diallyl in excess of 900,000 megohms.

Hardware:

Mounting nut and lockwasher are shipped assembled.

MECHANICAL

Materials and Finishes:

All parts utilize non-corrosive materials

as standard.

Clips and Rotors:

Brass with silver plate as standard.

Insulation:

Glass epoxy, ceramic, or diallyl phthalate.

Index:

Single-ball, hill and valley.

Index Life:

25,000 cycles minimum.

Index Torque:

Switches have lowest practical torque consistent

with crisp detenting and smooth, reliable operation.

Index Angles:

Positive 30° standard, 60° available.

Index Stops:

Adjustable standard, fixed or continuous.

Stop Strength:

10 in. lbs. minimum.

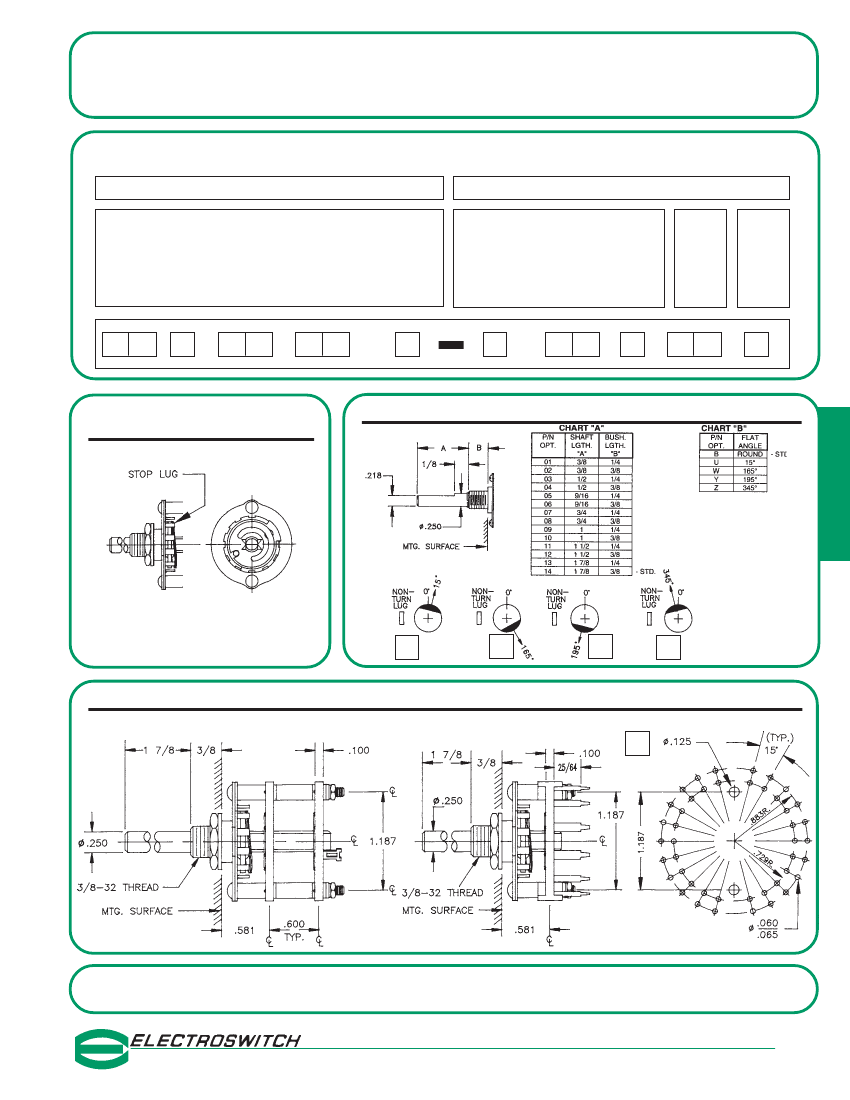

STANDARD PART NUMBER

GLASS EPOXY INSULATION

SWITCHES - SOLDER LUG TERMINALS - 30° INDEX - ADJUSTABLE STOPS

CERAMIC INSULATION

SWITCHES - SOLDER LUG TERMINALS - 30° INDEX - ADJUSTABLE STOPS

ACTIVE

POLES/

POLES POSITIONS SECTION

02-11

02-05

02-11

02-03

02-11

02-05

02-11

02-05

02-03

NO. OF

SECTIONS

SHORTING

D4G0111S

D4G0211S

D4G0205S

D4G0311S

D4G0303S

D4G0411S

D4G0405S

D4G0511S

D4G0611S

D4G0605S

D4G0603S

D4G0903S

NON-

SHORTING

D4G0111N

D4G0211N

D4G0205N

D4G0311N

D4G0303N

D4G0411N

D4G0405N

D4G0511N

D4G0611N

D4G0605N

D4G0603N

D4G0903N

FIG.

ACTIVE

POLES/

POLES POSITIONS SECTION

02-12

02-06

02-12

02-05

02-12

02-06

02-12

02-03

02-12

02-06

02-05

NO. OF

SECTIONS

SHORTING

D4C0112S

D4C0212S

D4C0206S

D4C0312S

D4C0305S

D4C0412S

D4C0406S

D4C0512S

D4C0503S

D4C0612S

D4C0606S

D4C0605S

NON-

SHORTING

D4C0112N

D4C0212N

D4C0206N

D4C0312N

D4C0305N

D4C0412N

D4C0406N

D4C0512N

D4C0503N

D4C0612N

D4C0606N

D4C0605N

FIG.

* FIGURES ARE SHOWN ON PAGES 55 AND 56.

DIMENSIONS

STANDARD CONSTRUCTION

D4G -

STANDARD GLASS EPOXY CONSTRUCTION

•

ELECTRONIC PRODUCTS

UNIT OF ELECTRO SWITCH CORP.

2010 Yonkers Road

Raleigh, NC 27604

Telephone: (888) ROTARYS or (919) 833-0707

Fax: (800) 909-9171 or (919) 833-8016

D4C0406N Related Products

	D4C0406N	D4C0112N
Description	Rotary Switch, 2 Positions, DP6T, Momentary, 1.5A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded	Rotary Switch, 1 Positions, SP12T, Momentary, 1.5A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Actuator type	SHAFT TYPE	SHAFT TYPE
body height	30.48 mm	15.24 mm
Body length or diameter	36.5 mm	36.5 mm
Contact (AC) maximum rated R load	.5A@115VAC	.5A@115VAC
Maximum contact current (AC)	0.5 A	0.5 A
Maximum contact current (DC)	1.5 A	1.5 A
Contact (DC) maximum rated R load	1.5A@28VDC	1.5A@28VDC
Maximum contact voltage (AC)	115 V	115 V
Maximum contact voltage (DC)	28 V	28 V
Graduation angle	30 deg	30 deg
Manufacturer's serial number	D4	D4
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Number of positions	2	1
Number of switching segments	2	1
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	DP6T	SP12T
Switch type	ROTARY SWITCH	ROTARY SWITCH
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
