DF20CA160 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DF20CA160

Preview

DF20CA160: DescriptionBridge Rectifier Diode, 20A, 1600V V(RRM),; CategoryDiscrete semiconductor diode; File Size275KB，2 Pages; ManufacturerSanRex; Websitehttp://www.ecomallbiz.com/sanrex

Download Datasheet Parametric Compare View All

DF20CA160 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF20CA160	-	-	View	Buy Now

DF20CA160 Overview

Bridge Rectifier Diode, 20A, 1600V V(RRM),

DF20CA160 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 6 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	600 A
Number of components	6
Maximum operating temperature	150 °C
Maximum output current	20 A
Maximum repetitive peak reverse voltage	1600 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

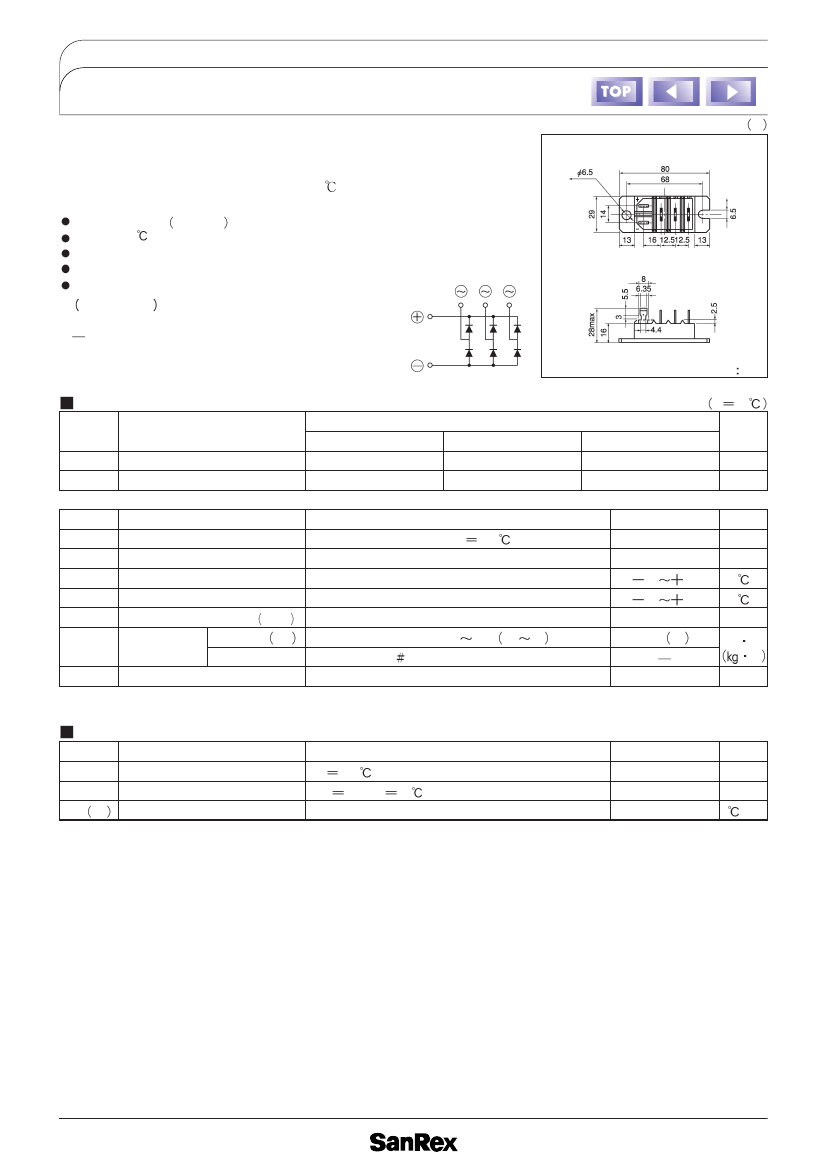

DIODE

(THREE PHASES BRIDGE TYPE)

DF20CA80/120/160

UL;E76102 M

Power Diode Module

DF20CA

is designed for three phase full wave rectification, which

has six diodes connected in a three phase bridge configuration. The mounting base of the

module is electrically isolated from semiconductor elements for simple heatsink

construction output DC current is 20Amp (Tc=123 ) Repetitive peak reverse voltage is

up to 1,600V.

IFSM=550/600A 50/60Hz

TjMax=150

Isolated Mounting Base

High reliability by unique glass passivation

Easy Assemble by the #250 terminal Tab

Applications

AC. DC Moter Drive/AVR/Switching

for three phase rectification

Unit

a

Maximum Ratings

Symbol

V

RRM

V

RSM

Symbol

I

D

I

FSM

Tj

Tstg

V

ISO

Item

Repetitive Peak Reverse Voltage

Non-Repetitive Peak Reverse Voltage

Item

Output current (D.C.)

Surage Forward Current

Junction Temperature

Storge Temperature

Isolation Breakdown Voltage R.M.S.

Mounting

Torque

Mass

Mounting M6

Terminal

Main Terminal to case 1minute

Recommended Value 2.5 3.9 25 40

Tub Terminal

Typical Value

250

90

Ratings

DF20CA80

800

960

Conditions

Three phase. full wave. T

C

123

1 cycle, 50/60H

Z

, peak value, non-repetitive

DF20CA120

1200

1300

DF20CA160

1600

1700

Ratings

20

550/600

40

150

40

125

2500

4.7 48

Tj 25

Unit

V

Unit

A

V

N m

f

B

g

Electrical Characteristics

Symbol

I

RRM

V

FM

Rth j-c

Item

Repetitive Peak Reverse Current, max.

Forward Voltage Drop, max.

Thermal Impedance, max.

Tj 150

I

FM

20A, Tj 25

Junction to case

Conditions

at V

RRM

Inst. measurement

Ratings

8.0

1.1

0.6

Unit

mA

V

/W

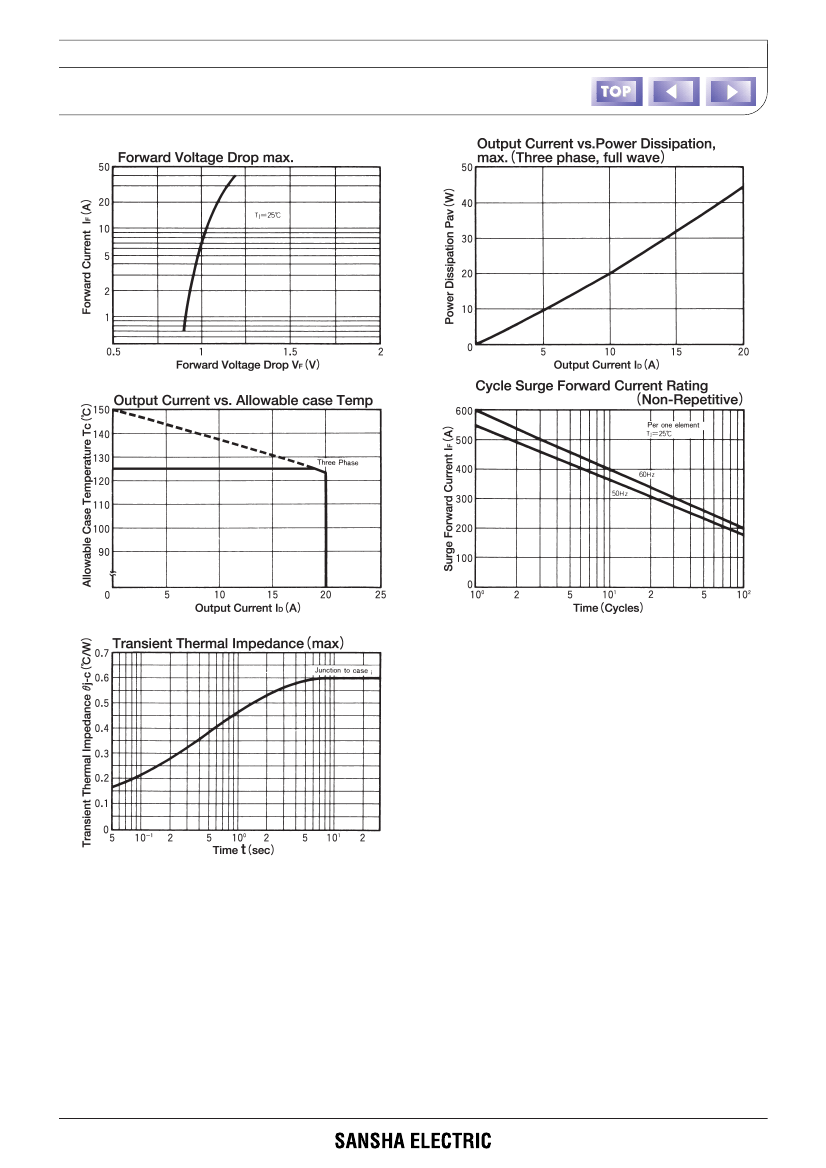

113

DF20CA160 Related Products

	DF20CA160	DF20CA120	DF20CA80
Description	Bridge Rectifier Diode, 20A, 1600V V(RRM),	Bridge Rectifier Diode, 20A, 1200V V(RRM),	Bridge Rectifier Diode, 20A, 800V V(RRM),
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	600 A	600 A	600 A
Number of components	6	6	6
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	20 A	20 A	20 A
Maximum repetitive peak reverse voltage	1600 V	1200 V	800 V
surface mount	NO	NO	NO
Base Number Matches	1	1	1
