DBM25PTK127-A220 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DBM25PTK127-A220

DBM25PTK127-A220: DescriptionD Type Connector, 25 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug,; CategoryThe connector The connector; File Size248KB，3 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DBM25PTK127-A220 Overview

D Type Connector, 25 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug,

DBM25PTK127-A220 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.684 inch
body length	2.087 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	7.5 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulator color	GREEN
insulator material	THERMOPLASTIC
Manufacturer's serial number	D*M
Installation option 1	HOLE .112-.124
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.153 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

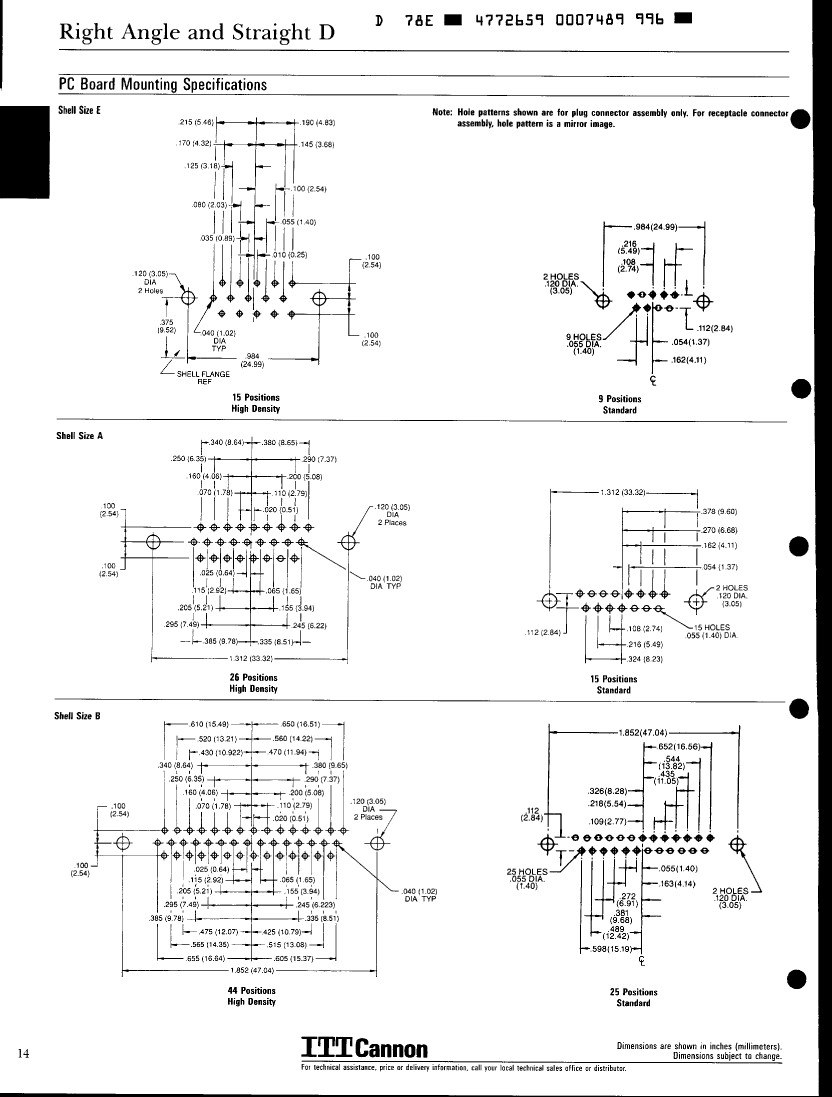

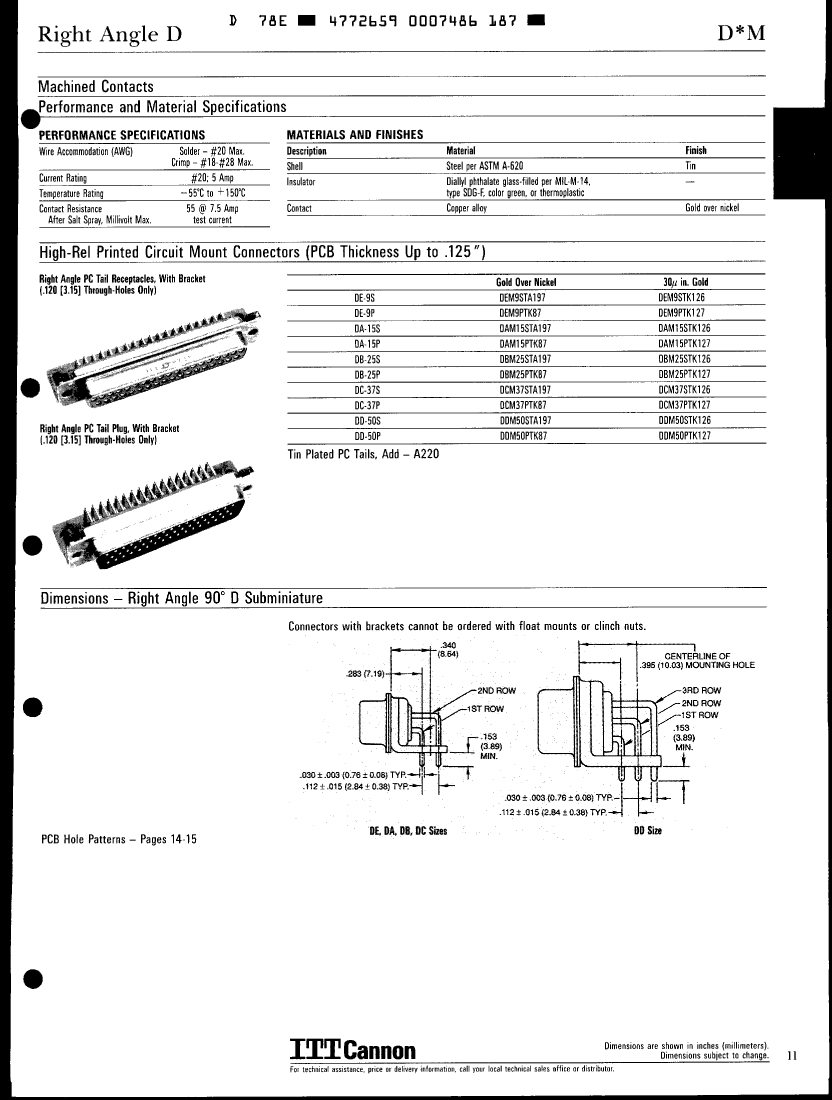

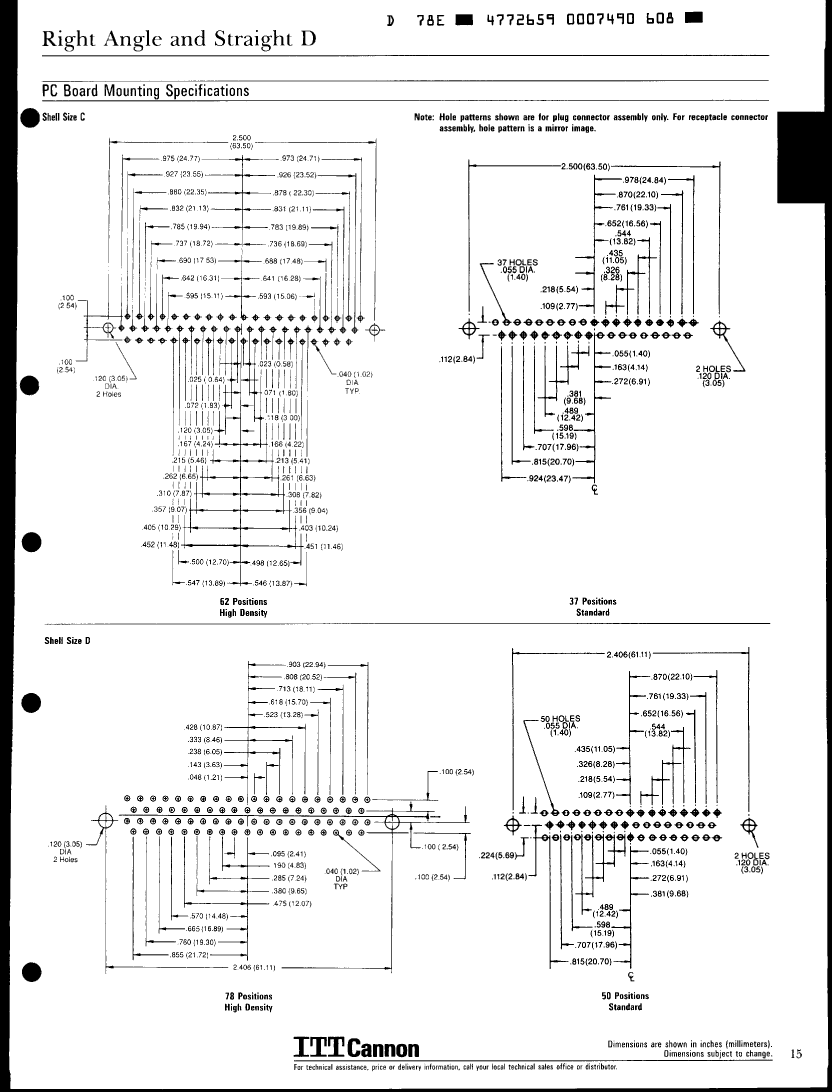

Preview

Download Datasheet

View All

DBM25PTK127-A220 Related Products

	DBM25PTK127-A220	DCM37STA197-A220	DAM15STA197-A220	DAM15STK126-A220	DBM25STK126-A220	DCM37STK126-A220	DDM50PTK87-A220	DEM9PTK87-A220	DEM9STK126-A220	DEM9STA197-A220
Description	D Type Connector, 25 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug,	D Type Connector, 37 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle	D Type Connector, 25 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle,	D Type Connector, 37 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle	D Type Connector, 50 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug	D Type Connector, 9 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug	D Type Connector, 9 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle	D Type Connector, 9 Contact(s), Male, Solder Terminal, Hole .112-.124, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.605 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.684 inch	0.678 inch	0.678 inch	0.678 inch	0.678 inch	0.678 inch	0.796 inch	0.684 inch	0.678 inch	0.678 inch
body length	2.087 inch	2.728 inch	1.539 inch	1.539 inch	2.087 inch	2.728 inch	2.634 inch	1.213 inch	1.213 inch	1.213 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	7.5 mΩ	7.5 mΩ	7.5 mΩ	7.5 mΩ	7.5 mΩ	7.5 mΩ	7.5 mΩ	7.5 mΩ	7.5 mΩ	7.5 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	D*M	D*M	D*M	D*M	D*M	D*M	D*M	D*M	D*M	D*M
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	3	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.153 inch	0.153 inch	0.153 inch	0.153 inch	0.153 inch	0.153 inch	0.153 inch	0.153 inch	0.153 inch	0.153 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7432 mm	2.7432 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7432 mm	2.7432 mm	2.7432 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	37	15	15	25	37	50	9	9	9
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Maker	-	ITT	ITT	ITT	ITT	ITT	ITT	-	-	-
