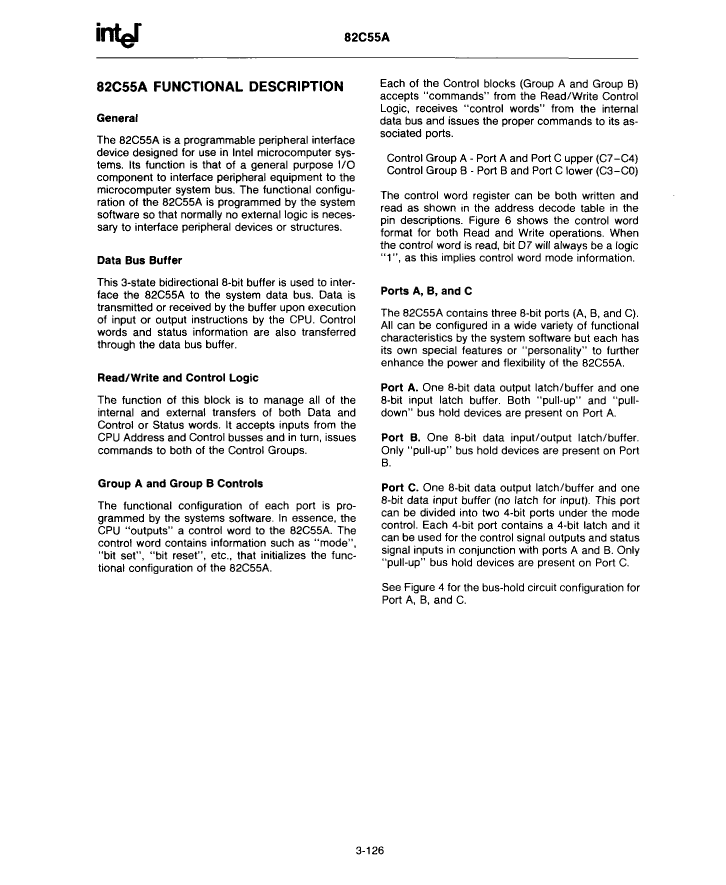

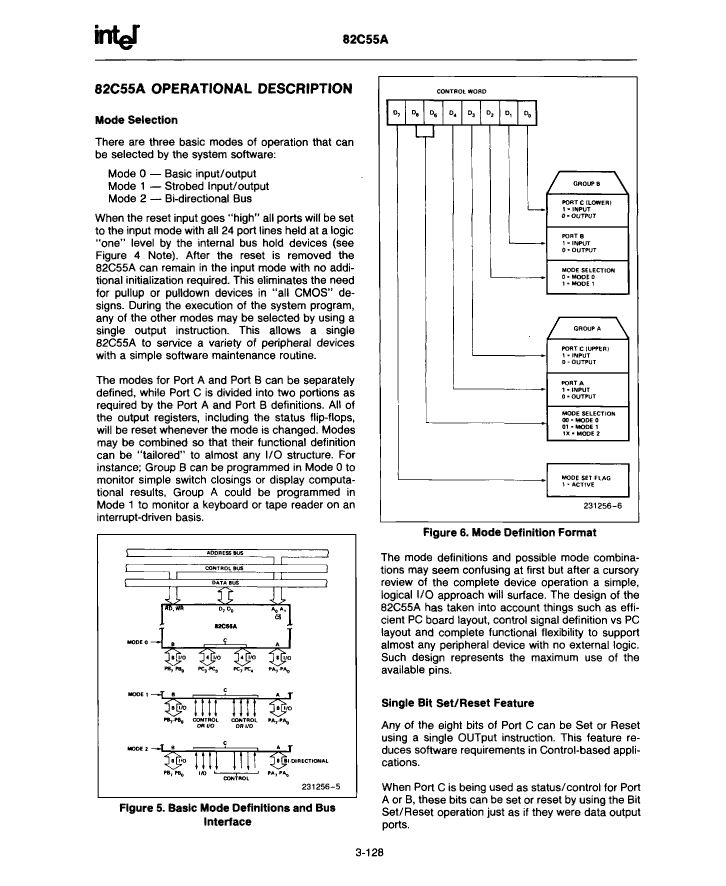

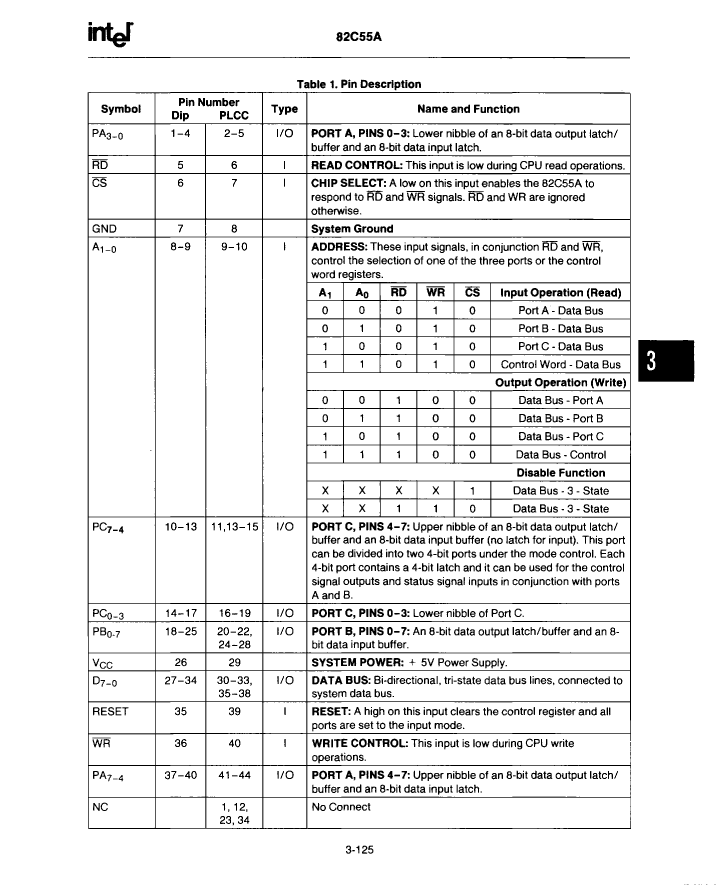

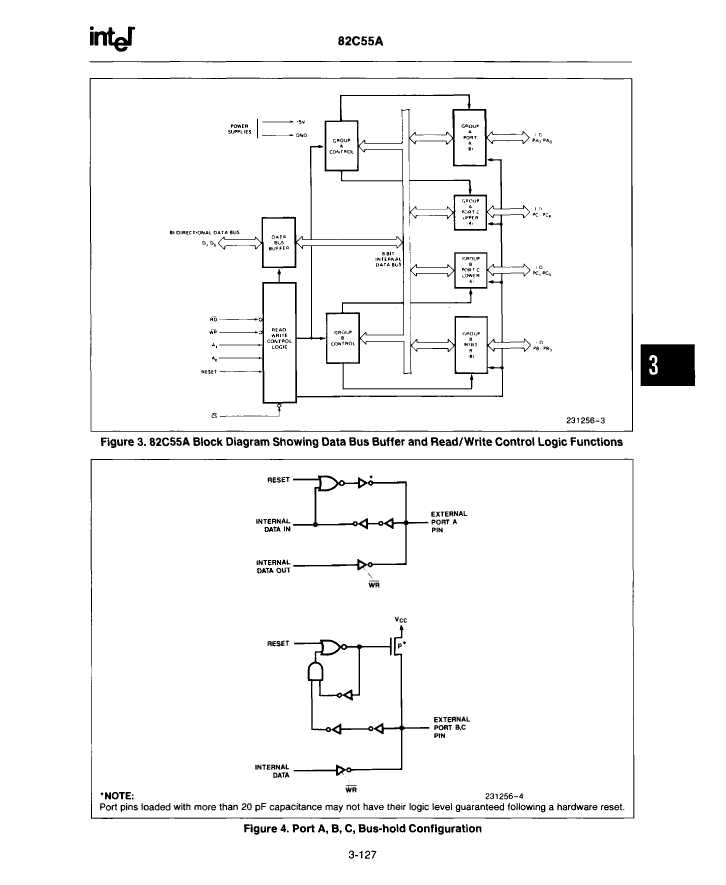

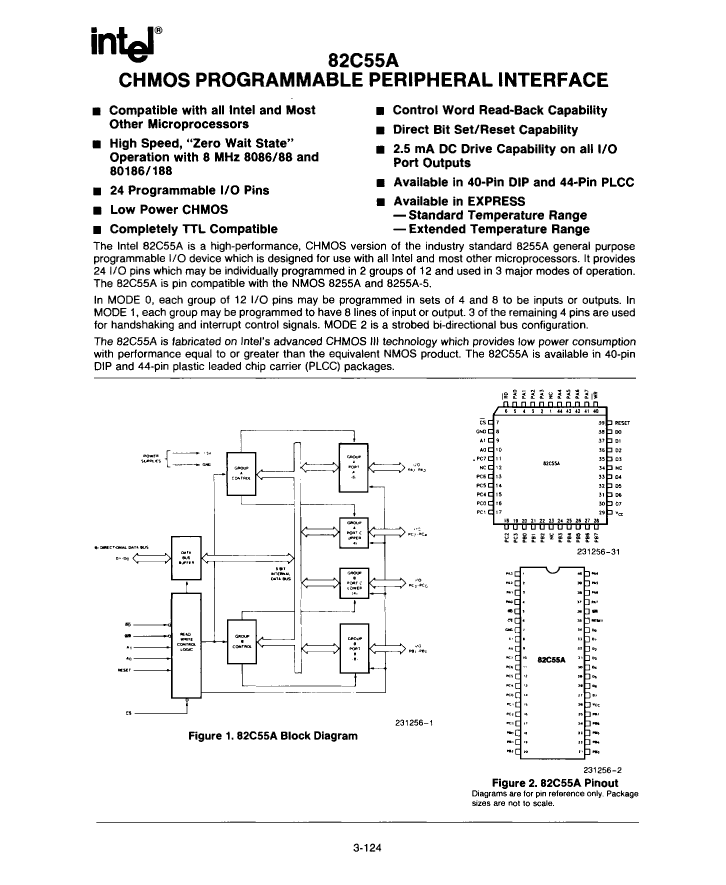

Parallel I/O Port, 24 I/O, CMOS, CDIP40, DIP-40
| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 40 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| maximum clock frequency | 8 MHz |
| External data bus width | 8 |
| JESD-30 code | R-GDIP-T40 |
| length | 52.325 mm |
| Number of I/O lines | 24 |
| Number of ports | 3 |
| Number of terminals | 40 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 5.72 mm |
| Maximum slew rate | 10 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | PARALLEL IO PORT, GENERAL PURPOSE |
| Base Number Matches | 1 |
| D82C55A-2 | QD82C55A-2 | LD82C55A-2 | QP82C55A-2 | QN82C55A-2 | TD82C55A-2 | |
|---|---|---|---|---|---|---|
| Description | Parallel I/O Port, 24 I/O, CMOS, CDIP40, DIP-40 | Parallel I/O Port, 24 I/O, CMOS, CDIP40, DIP-40 | Parallel I/O Port, 24 I/O, CMOS, CDIP40, DIP-40 | Parallel I/O Port, 24 I/O, CMOS, PDIP40, DIP-40 | Parallel I/O Port, 24 I/O, CMOS, PQCC44, PLASTIC, LCC-44 | Parallel I/O Port, 24 I/O, CMOS, CDIP40, DIP-40 |
| Parts packaging code | DIP | DIP | DIP | DIP | LCC | DIP |
| package instruction | DIP, | DIP, | DIP, | DIP, DIP40,.6 | QCCJ, | DIP, |
| Contacts | 40 | 40 | 40 | 40 | 44 | 40 |
| Reach Compliance Code | unknown | unknown | unknown | compliant | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| maximum clock frequency | 8 MHz | 8 MHz | 8 MHz | 8 MHz | 8 MHz | 8 MHz |
| External data bus width | 8 | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | R-GDIP-T40 | R-GDIP-T40 | R-GDIP-T40 | R-PDIP-T40 | S-PQCC-J44 | R-GDIP-T40 |
| length | 52.325 mm | 52.325 mm | 52.325 mm | 52.26 mm | 16.6 mm | 52.325 mm |
| Number of I/O lines | 24 | 24 | 24 | 24 | 24 | 24 |
| Number of ports | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of terminals | 40 | 40 | 40 | 40 | 44 | 40 |
| Maximum operating temperature | 70 °C | 70 °C | 85 °C | 70 °C | 70 °C | 85 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP | DIP | QCCJ | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.72 mm | 5.72 mm | 5.72 mm | 5.08 mm | 4.57 mm | 5.72 mm |
| Maximum slew rate | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | J BEND | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | QUAD | DUAL |
| width | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm | 16.6 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE |
| Maximum supply voltage | 5.5 V | 5.5 V | - | 5.5 V | 5.5 V | - |
| Minimum supply voltage | 4.5 V | 4.5 V | - | 4.5 V | 4.5 V | - |
| Maker | - | Intel | - | Intel | Intel | Intel |
