D1RW-G13-006-EU Overview

Single Color LED Display Cluster, Red

D1RW-G13-006-EU Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
color	RED
Number of functions	1
Maximum operating temperature	55 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Base Number Matches	1

Preview

Download Datasheet

View All

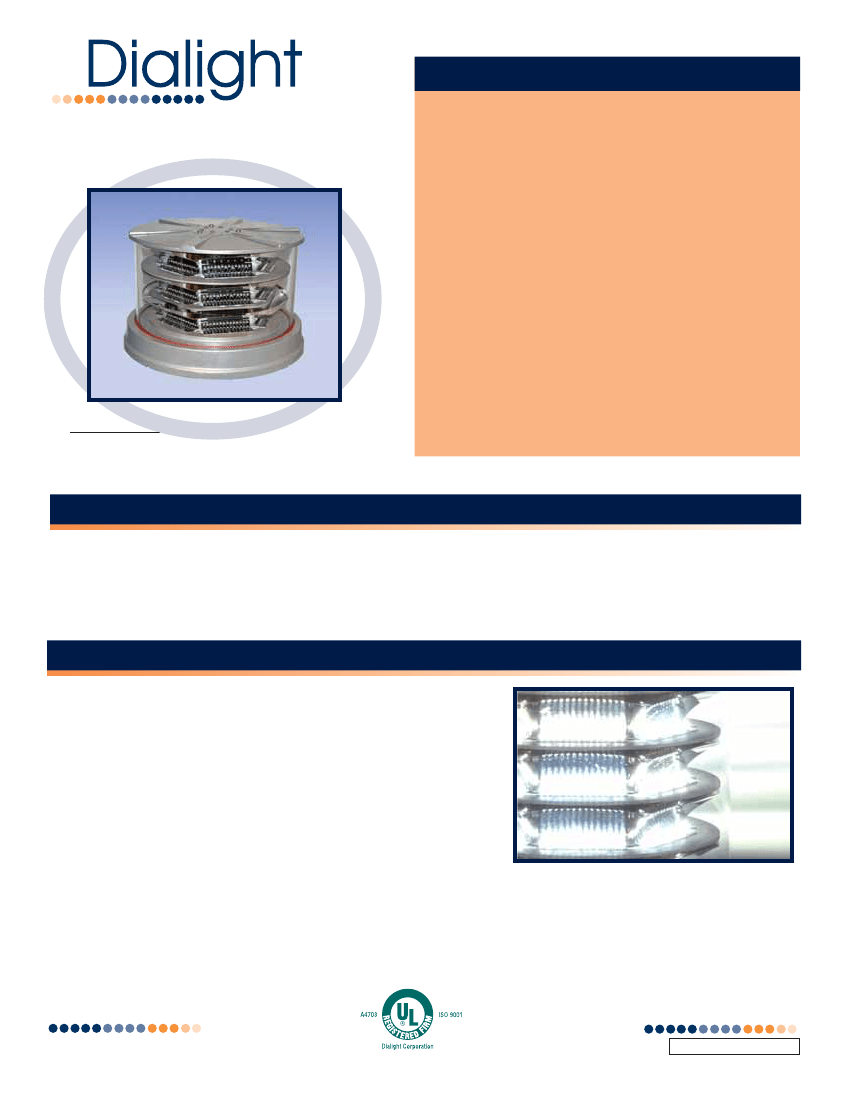

FEATURES / BENEFITS

DUAL RED / WHITE MEDIUM

INTENSITY BEACON

“LED BASED”

20,000 cd nominal daytime white and three nighttime

modes; 2,000 cd white, 2,000 cd red or 170 cd red

Capable of 10%, 30% or 100% intensity settings

Designed to replace Dual Xenon Strobe units, Medium

Intensity Type A/B

Resistant to shock and vibration

Universal 100/240 VAC input 50/60Hz or 24 VDC

Can be controlled and monitored by Dialight approved,

industry accepted, obstruction lighting system

manufacturers

Eliminates high voltage parts and issues associated

with traditional strobes

Dramatically reduces cable sizing requirements

Meets or exceeds industry EMI/RFI standards

Compliant to:

ICAO

(Annex 14 - Fourth Edition, July 2004)

IP66 / NEMA 4X rated

PATENT PENDING

APPLICATION

The Dialight dual beacon is the first production medium intensity Red/White beacon, utilizing state of the art optics.

With the use of a simple controller, the beacon provides over 20,000 cd white for daytime use and has the following

three night modes; 2,000 cd white, 2,000 cd red or 170 cd red. Its advanced passive temperature management

system maintains the LEDs well within their temperature tolerance in all operating conditions. The beacon has a micro-

processor controlled driver and a default flash mode if it loses communication with the controller.

SPECIFICATIONS

Operating Voltage

: 100 - 240 VAC, 50 - 60 Hz or 24 VDC

Lightsource

: LEDs > 10+ year life expectancy

Effective Intensity

: 20,000 cd white ± 25% in daytime mode,

2,000 cd white ± 25% in nighttime mode,

2,000 cd or 170 cd red ± 25% in nighttime mode

Operating Temperature

= -40ºC to +55ºC

Storage Temperature

= -55ºC to +55ºC

Surge

Lighting Protection

: Designed to withstand

IEC61000-4-5, 6kV/3000A, 1.2/50us, 8/20us, 2 ohm output

impedance, combination wave, line-line and line-ground minimums

Flash Rate

: 20 fpm

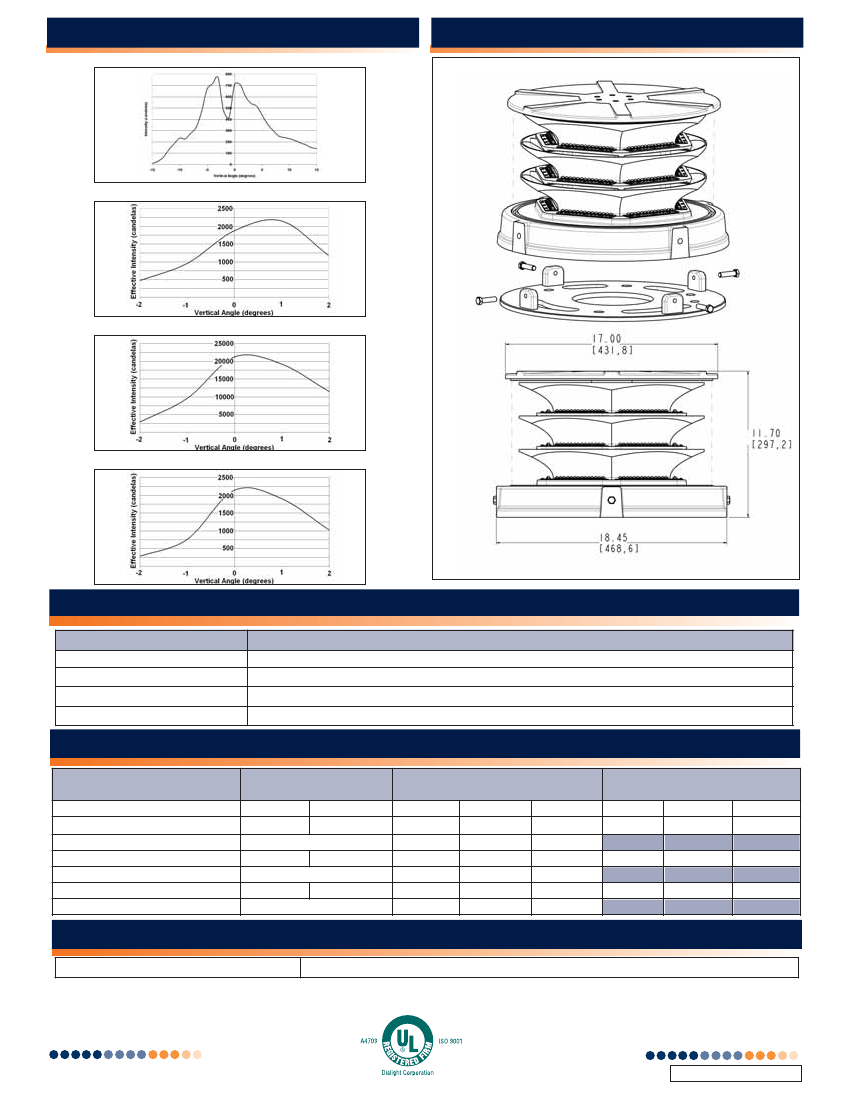

Dialight Europe Ltd.

Exning Road, Newmarket, England, CB8 0AX

Tel: +44 (0) 1638 666541 • Fax: +44 (0) 1638 561735

www.dialight-obstruction-lights.com

A Subsidiary of Dialight PLC

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778

www.dialight.com

MDTFD265EU001_G
