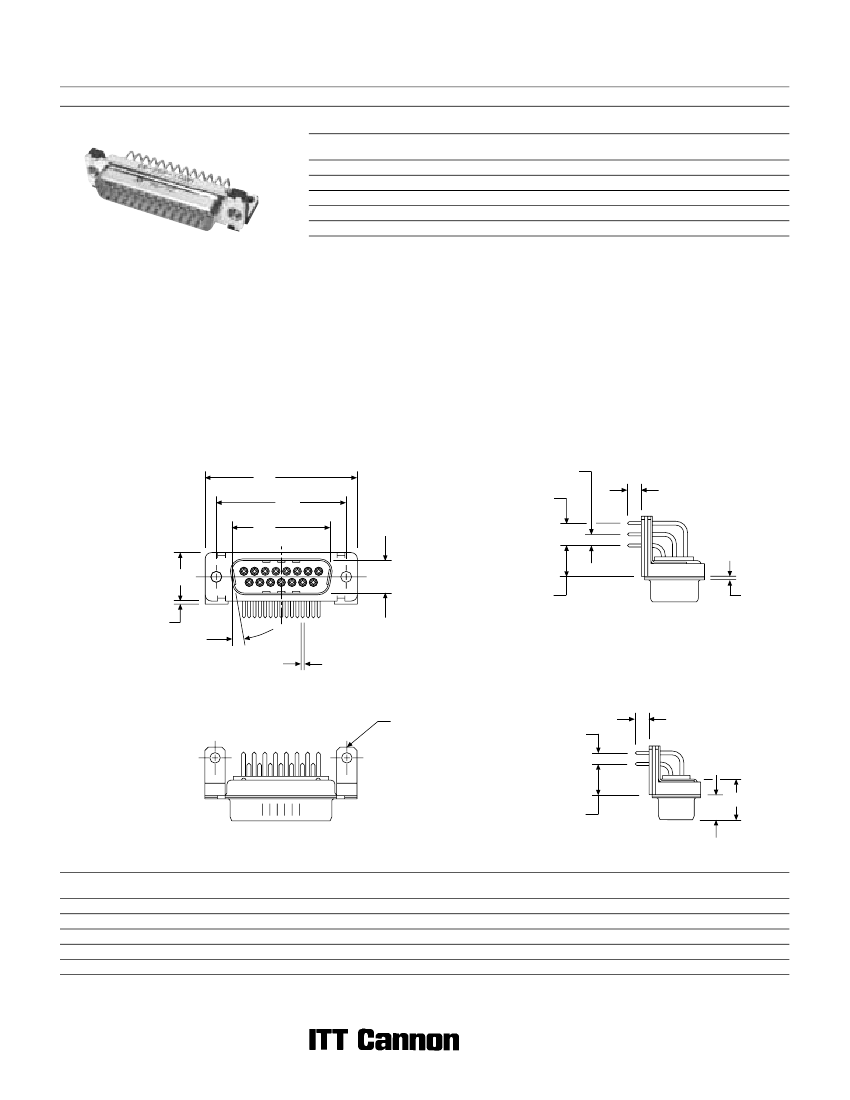

D Subminiature
D*
90° Solder Termination (Machined) with Plastic Bracket and Grounding Strap — European Footprint 10,2 or 9,4 mm
Plug
Part Numbers
Shell Size
DE
DA
DB
DC
DD
Layout
9
15
25
37
50
Through Hole
DE9P-1ADN-K87
DA15P-1ADN-K87
DB25P-1ADN-K87
DC37P-1ADN-K87
DD50P-1ADN-K87
Captive Nut
#4-40 UNC
DE9P-1AWN-K87
DA15P-1AWN-K87
DB25P-1AWN-K87
DC37P-1AWN-K87
DD50P-1AWN-K87
Captive Nut
M3
DE9P-1AVN-K87
DA15P-1AVN-K87
DB25P-1AVN-K87
DC37P-1AVN-K87
DD50P-1AVN-K87
Post
#4-40 UNC
DE9P-1AJN-K87
DA15P-1AJN-K87
DB25P-1AJN-K87
DC37P-1AJN-K87
DD50P-1AJN-K87
Selection Guide
For Product Features, Specifications,
Materials and Finishes, see pages 14-15.
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
Notes: For pushfit/boardlock option add -146. Example: DE9P-1ADN-K87-146
For performance class 2 add -A191. Example: DE9P-1ADN-A191-K87
Engaging Face
A
C
B
2,54 (.100)
5,08 (.200)
DD Configuration
3,70 (.146)
E
D
9,40 (.370)
L
1,00 (.039)
10°
Ø 0,60 (.024)
BRACKET, PLASTIC,
WITH GROUNDING
STRAP
3,70 (.146)
2,54 (.100)
9,40 (.370)
W
F
Dimensions
Shell Size
DE
DA
DB
DC
DD
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
66,93 (2.635)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
52,81 (2.079)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,11 (2.406)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
11,07 (.436)
E
±0.38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
15,37 (.605)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
10,82 (.426)
W
±0,368
(.0145)
6,693 (.2635)
6,693 (.2635)
—
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
24
Dimensions are shown in mm (inch)
Dimensions subject to change
