PRODUCT DATA SHEET
ULTRA LOW PROFILE
POWER INDUCTOR
Features
∗
∗
∗
∗
∗
∗
∗
Lead-free (Pb-free)
RoHS compliant
Current handling (Saturation to 2A)
Ultra Low profile (to 1mm)
Surface Mount
Robust construction
Flat top for pick & place
P7606
Family
Applications
∗
∗
∗
∗
∗
∗
PC Cards
Electroluminescent displays
LCD drivers
Hybrids
Daughter boards
Portable equipment
DESCRIPTION
The P7606 family comprises very low profile
inductors for height constrained applications.
Four sizes are available using the same PCB
footprint but varying in height from 1.0 to 2.5mm.
Despite their small size, these inductors are
capable of being used in genuine power
applications with saturation currents up to 2A.
The family covers inductance over a wide range
from 2.2µH to 3300µH.
The parts are mechanically robust and are
supplied with Pb-free terminations, compliant
with RoHS Directive 2002/95/EC, and suitable for
Pb-free and conventional placement and reflow.
P7606-5210
P7606-5212
P7606-5215
P7606-5225
ETALDOC 836/2
Page 1 of 4
July 2005
P7606

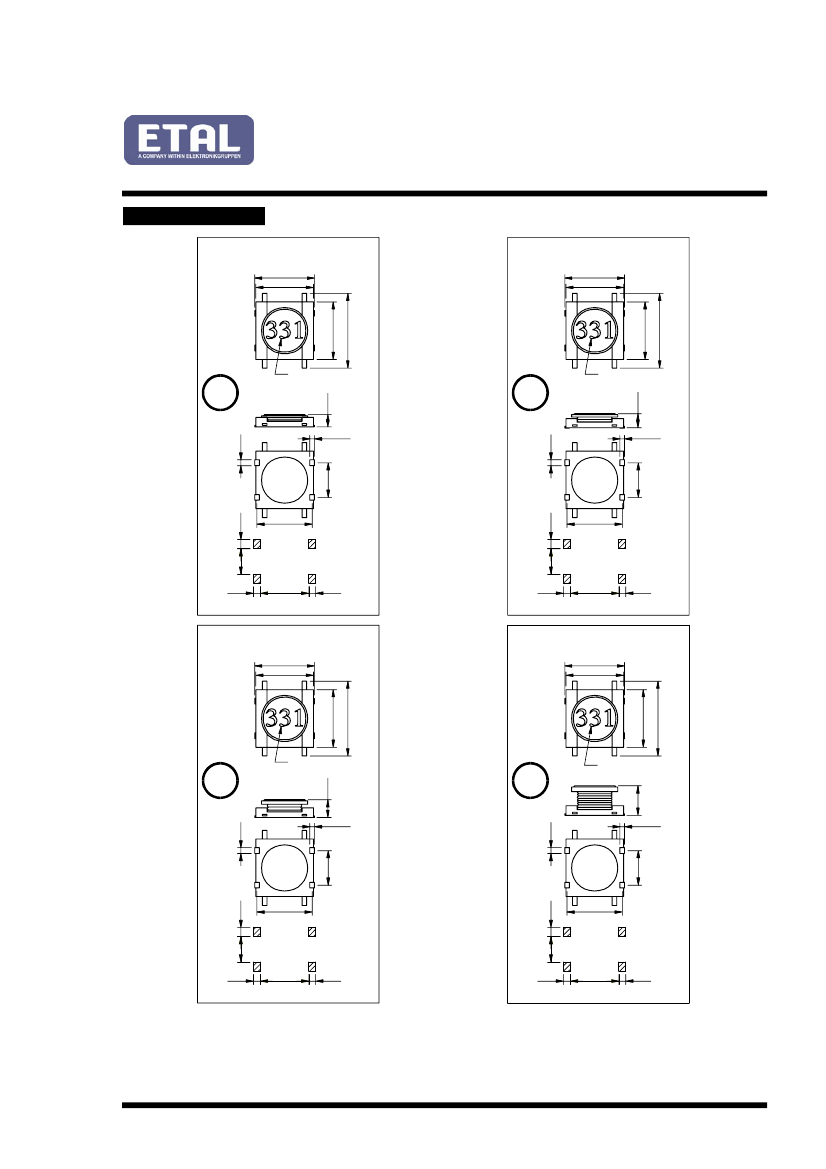

CONSTRUCTION
P7606-5210 dimensions
Fig. 1
5.2± 0.1
5.0± 0.1
1
4
P7606-5212 dimensions
Fig. 2
5.2± 0.1
5.0± 0.1
1
4
5.0± 0.1
6.5 m ax
5.0± 0.1
0.6
5.0± 0.1
0.6
2
3
2
3
1.05
m ax
0.4
± 0.1
3
3.0
± 0.1
0.5
± 0.1
2
0.5
± 0.1
2
3
3.0
± 0.1
1
4.8
± 0.1
0.8
4
0.8
1
4.8
± 0.1
4
2.2
0.6
4.2
PCB P T
AT ERN
0.6
0.6
2.2
4.2
PCB P T
AT ERN
P7606-5215 dimensions
Fig. 3
5.2± 0.1
5.0± 0.1
1
4
P7606-5225 dimensions
Fig. 4
5.2± 0.1
5.0± 0.1
1
4
6.5 m ax
1.25
max
0.4
± 0.1
2
3
MARKING
INDUCT
ANCE CODE
2.55
max
0.4
± 0.1
3
3.0
± 0.1
1
4.8
± 0.1
4
2
4.2
PCB P T
AT ERN
6.5 m ax
e
3
MARKING
INDUCT
ANCE CODE
e
3
MARKING
INDUCT
ANCE CODE
2
3
0.5
± 0.1
1.55
max
e
3
2
MARKING
INDUCT
ANCE CODE
5.0± 0.1
e
3
0.5
± 0.1
0.4
± 0.1
3
3.0
± 0.1
1
4.8
± 0.1
0.8
4
0.8
2.2
0.6
4.2
PCB P T
AT ERN
0.6
0.6
Dimensions shown are in millimetres.
Connection is made using pins 1 and 3.
Terminal plating JESD97 category = e3.
Recommended reflow solder profile: 2 minutes @ 150-200ºC, 10 seconds @ 260ºC; time above 217ºC
60 seconds maximum.
ETALDOC 836/2
Page 2 of 4
2.2
6.5 m ax
July 2005
P7606
SPECIFICATIONS
Electrical
5210 size
Part Number
P7606-5210-2R2M
P7606-5210-3R3M
P7606-5210-4R7M
P7606-5210-6R8M
P7606-5210-100M
P7606-5210-150M
P7606-5210-220M
P7606-5210-330M
P7606-5210-470M
5212 size
Part Number
P7606-5212-2R2M
P7606-5212-3R3M
P7606-5212-4R7M
P7606-5212-6R8M
P7606-5212-100M
P7606-5212-150M
P7606-5212-220M
P7606-5212-330M
P7606-5212-470M
5215 size
Part Number
P7606-5215-101M
P7606-5215-151M
P7606-5215-221M
P7606-5215-331M
P7606-5215-471M
P7606-5215-631M
P7606-5215-102M
Notes
1.
2.
3.
4.
5.
Inductance measured at 100kHz, 1V.
I
RMS1
and I
RMS2
are the currents at which the temperature rises 20ºC and 40ºC typical respectively.
Saturation Current, I
sat
, is the DC current at which the zero current inductance drops by 10% (typ).
Operating temperature -25ºC to +85ºC.
For non-standard inductance values, please contact Profec.
Inductance
(1)
(µH)
100±20%
150±20%
220±20%
330±20%
470±20%
630±20%
1000±20%
DCR (Ω) Max
3.2
5.0
6.5
12
22
27
33
I
RMS1
(A)
0.16
0.13
0.11
0.085
0.060
0.055
0.050
(2)
Inductance
(1)
(µH)
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10±20%
15±20%
22±20%
33±20%
47±20%
DCR (Ω) Max
0.18
0.22
0.28
0.38
0.61
0.82
1.1
1.9
2.4
I
RMS1
(A)
0.51
0.46
0.41
0.35
0.27
0.24
0.20
0.15
0.14
(2)
I
RMS2
(A)
0.76
0.69
0.61
0.52
0.41
0.35
0.31
0.23
0.21
(2)
I
sat
(A)
(3)
1.7
1.5
1.3
1.1
0.90
0.73
0.62
0.52
0.42
Inductance
(1)
(µH)
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10±20%
15±20%
22±20%
33±20%
47±20%
DCR (Ω) Max
0.18
0.22
0.27
0.37
0.48
0.62
1.0
1.4
2.2
I
RMS1
(A)
0.55
0.50
0.45
0.38
0.33
0.29
0.23
0.19
0.15
(2)
I
RMS2
(A)
0.82
0.74
0.67
0.57
0.50
0.44
0.35
0.29
0.23
(2)
I
sat
(A)
(3)
2.0
1.8
1.5
1.3
1.1
0.95
0.77
0.60
0.51
I
RMS2
(A)
0.24
0.19
0.17
0.12
0.090
0.080
0.075
(2)
I
sat
(A)
(3)
0.50
0.35
0.30
0.22
0.17
0.15
0.13
ETALDOC 836/2
Page 3 of 4
July 2005
P7606
5225 size
Part Number
P7606-5225-101M
P7606-5225-151M
P7606-5225-221M
P7606-5225-331M
P7606-5225-471M
P7606-5225-681M
P7606-5225-102M
P7606-5225-152M
P7606-5225-222M
P7606-5225-332M
Notes
1.
2.
3.
4.
5.
Inductance measured at 100kHz, 1V.
I
RMS1
and I
RMS2
are the currents at which the temperature rises 20ºC and 40ºC typical respectively.
Saturation Current, I
sat
, is the DC current at which the zero current inductance drops by 10% (typ).
Operating temperature -25ºC to +85ºC.
For non-standard inductance values, please contact Profec.
Inductance
(1)
(µH)
100±20%
150±20%
220±20%
330±20%
470±20%
680±20%
1000±20%
1500±20%
2200±20%
3300±20%
DCR (Ω) Max
1.6
2.5
3.8
5.9
7.5
12
20
25
45
60
I
RMS1
(A)
0.24
0.19
0.16
0.13
0.11
0.090
0.070
0.060
0.045
0.040
(2)
I
RMS2
(A)
0.36
0.29
0.23
0.19
0.17
0.13
0.10
0.090
0.065
0.060
(2)
I
sat
(A)
(3)
0.45
0.35
0.30
0.25
0.22
0.18
0.14
0.12
0.09
0.08
ORDERING CODE
P7606-
-
MT
Tape and Reel
Tolerance (±20%)
Inductance code
Size :
(5210, 5212, 5215 or 5225)
Type code
ABSOLUTE MAXIMUM RATINGS
Storage temperature
Operating temperature
-40ºC to
+105ºC
-25ºC to
+85ºC
Soldering temperature profile peak 260ºC 10s
Handle in accordance with IPC/JEDEC
J-STD-033
procedure
for
components
classified as IPC/JEDEC J-STD-020 Moisture
Sensitivity Level 2.
ISO 9001
FM 25326
ETAL Group Oy, Kuormatie 14, FIN-03101, Nummela
Telephone: +358 (0)20 7500 330
Fax: +358 (0)20 7500 333
Website: www.etalgroup.com
Email: etalgroup@egruppen.com
ETALDOC 836/2
Page 4 of 4
July 2005
