RADIAL CHOKE COIL
1. PART NO. EXPRESSION :
RCC1008 SERIES
RCC1008100MZF
(a)
(b)
(c) (d)(e)(f)
(a) Series code
(b) Dimension code
(c) Inductance code : 100 = 10.0uH
(d) Tolerance code : K = ±10%, M = ±20%
(e) X, Y, Z : Standard part
(f) F : Lead Free
2. CONFIGURATION & DIMENSIONS :
A
B
C
F1
2
3
F2
ØW
F3
10.00±0.5
3. SCHEMATIC :
100
1
4
A
B
8.00±0.5
C
15.00±3.0
F1
4.00±0.5
F2
5.00±0.5
Cut off Pin
1
,
3
Unit:m/m
F3
6.40±0.5
ØW
0.65±0.10
2
4
4. MATERIALS :
d
a
b
(a) Core : DR Ferrite Core
(b) Wire : Enamelled Copper Wire
(c) Lead : Tinned Copper Wire
(d) Ink : Bon Margue
c
5. GENERAL SPECIFICATION :
a) The inductance drop at rated is 10% max.
b) Temp. rise : 40°C max. at rated current
c) Storage temp. : -40°C to +125°C
d) Operating temp. : -40°C to +85°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
RADIAL CHOKE COIL
6. ELECTRICAL CHARACTERISTICS :
Part No.
RCC1008100MZF
RCC1008120MZF
RCC1008150MZF
RCC1008180MZF
RCC1008220MZF
RCC1008270MZF
RCC1008330KZF
RCC1008390KZF
RCC1008470KZF
RCC1008560KZF
RCC1008680KZF
RCC1008820KZF
RCC1008101KZF
RCC1008121KZF
RCC1008151KZF
RCC1008181KZF
RCC1008221KZF
RCC1008271KZF
RCC1008331KZF
RCC1008391KZF
RCC1008471KZF
RCC1008561KZF
RCC1008681KZF
RCC1008821KZF
RCC1008102KZF
Inductance
( µH )
10±20%
12±20%
15±20%
18±20%
22±20%
27±20%
33±10%
39±10%
47±10%
56±10%
68±10%
82±10%
100±10%
120±10%
150±10%
180±10%
220±10%
270±10%
330±10%
390±10%
470±10%
560±10%
680±10%
820±10%
1000±10%
Test
Frequency
( Hz )
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
RCC1008 SERIES
RDC
( )
Max.
0.027
0.031
0.036
0.049
0.055
0.062
0.079
0.087
0.099
0.130
0.140
0.160
0.210
0.240
0.320
0.350
0.450
0.610
0.690
0.780
1.000
1.200
1.400
1.800
2.100
IDC
(A)
Max.
4.50
4.10
3.70
3.40
3.10
2.80
2.50
2.30
2.10
1.90
1.70
1.60
1.40
1.30
1.20
1.10
0.96
0.87
0.79
0.72
0.66
0.60
0.55
0.50
0.45
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERINGS
10s max.
260°C
230°C
180°C
150°C
Pre-heating
40s max.
Natural
cooling
90 to 120s
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
RADIAL CHOKE COIL

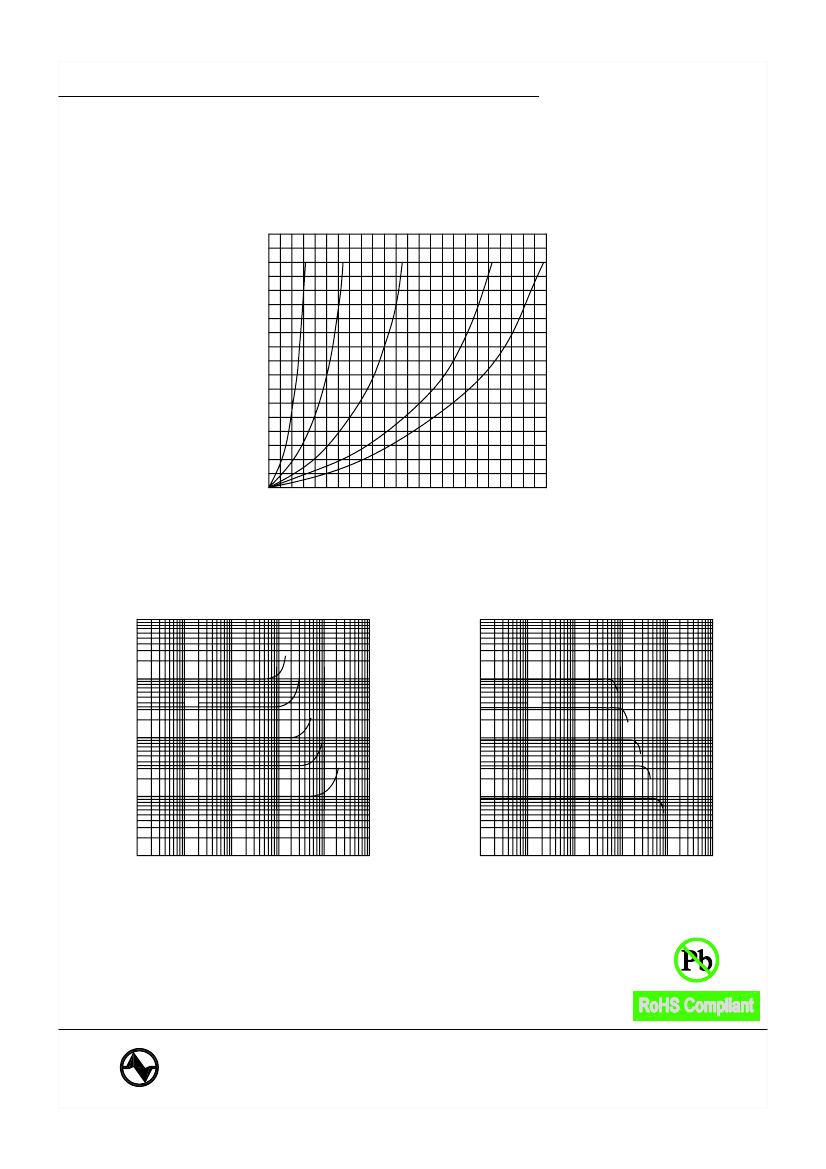

7. CHARACTERISTICS CURVES :
RCC1008 SERIES
@ TEMP. RISE VS. DC SUPERPOSITION RESPONSE CURVE
90
80
70
60
50
40
30
20
10
0 0
1
2
3
4
5
6
102K
331K
101K
330K
100M
t
(°C)
DC CURRENT (A)
@ INDUCTANCE VS. FREQUENCY RESPONSE CURVE
104
5
3
103
5
3
102K
@ INDUCTANCE VS. DC SUPERPOSITION RESPONSE CURVE
104
5
3
103
5
3
102K
331K
331K
L
(uH)
102
5
3
1
10
5
3
100
10-3
101K
L
(uH)
102
5
3
101K
330K
330K
100M
1
10
5
3
100
10-3
100M
3 5
10-2 3 5
-1
10
3 5
0
10
3 5
1
10
3 5
102
3 5
10-2 3 5
-1
10
3 5
0
10
3 5
1
10
3 5
102
FREQUENCY(MHZ)
DC CURRENT (A)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
RADIAL CHOKE COIL
8. PACKAGING INFORMATION :
Size
Inner Package
Quantity
RCC1008
Box (small)
150 pcs
RCC1008 SERIES

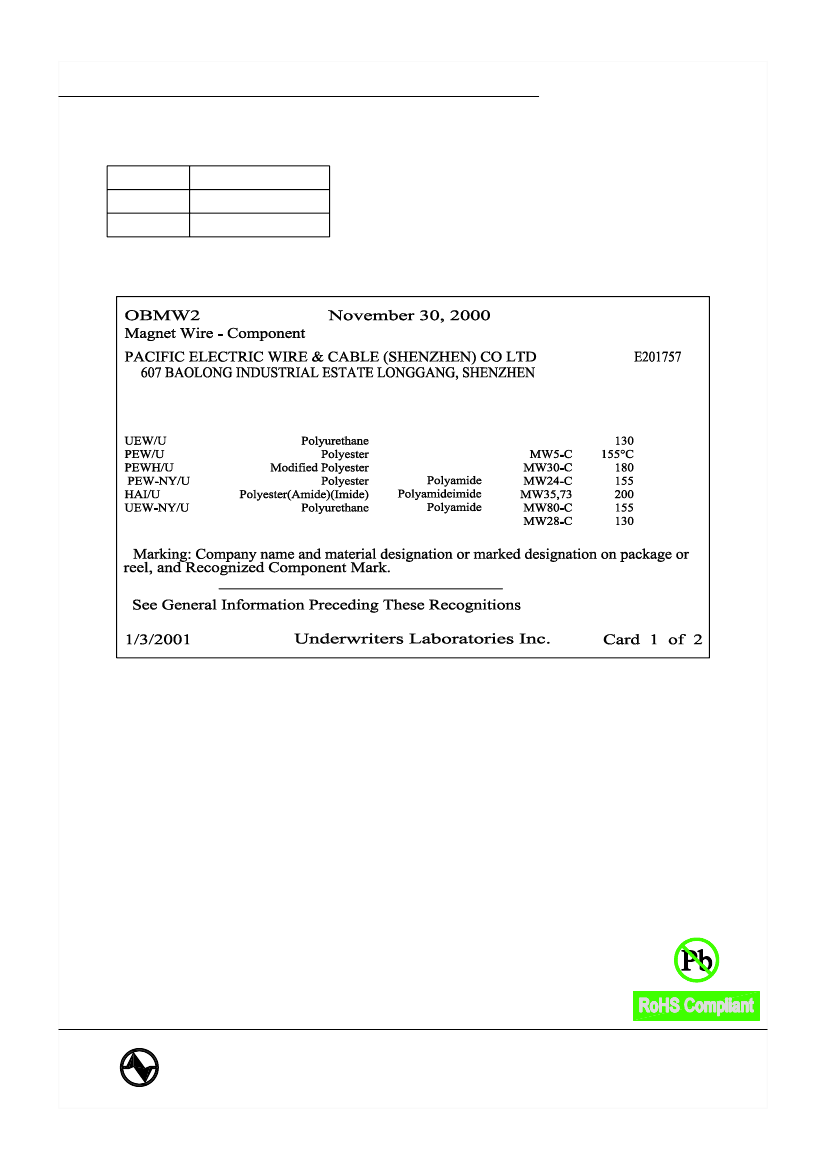

9. UL CARD :
GUANGDONG CHINA
Mtl Dsg
BC
Coating Type
TC
__
__
__
ANSI
Type
__
TI
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
