8-382480-4 datasheet, PDF - EEWORLD Datasheet

8-382480-4: DescriptionSIMM/DIMM SOCKET,84 CONTACTS,1; CategoryThe connector The connector; File Size152KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

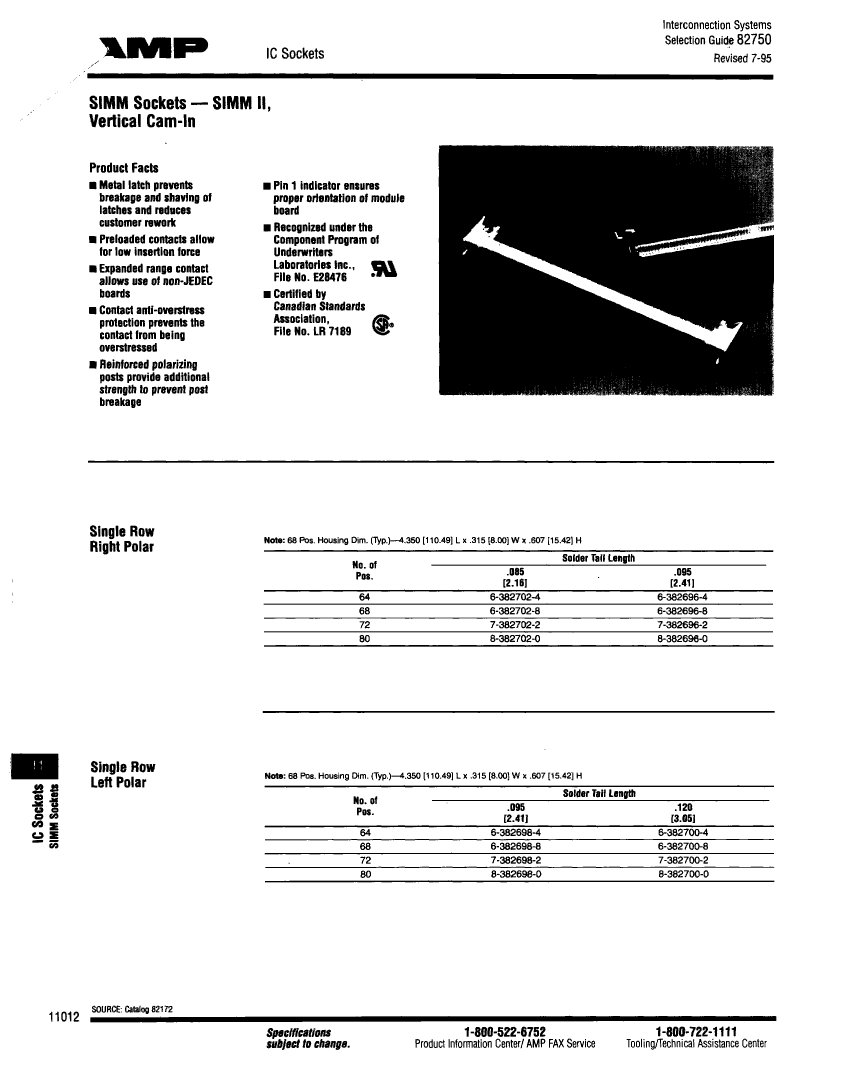

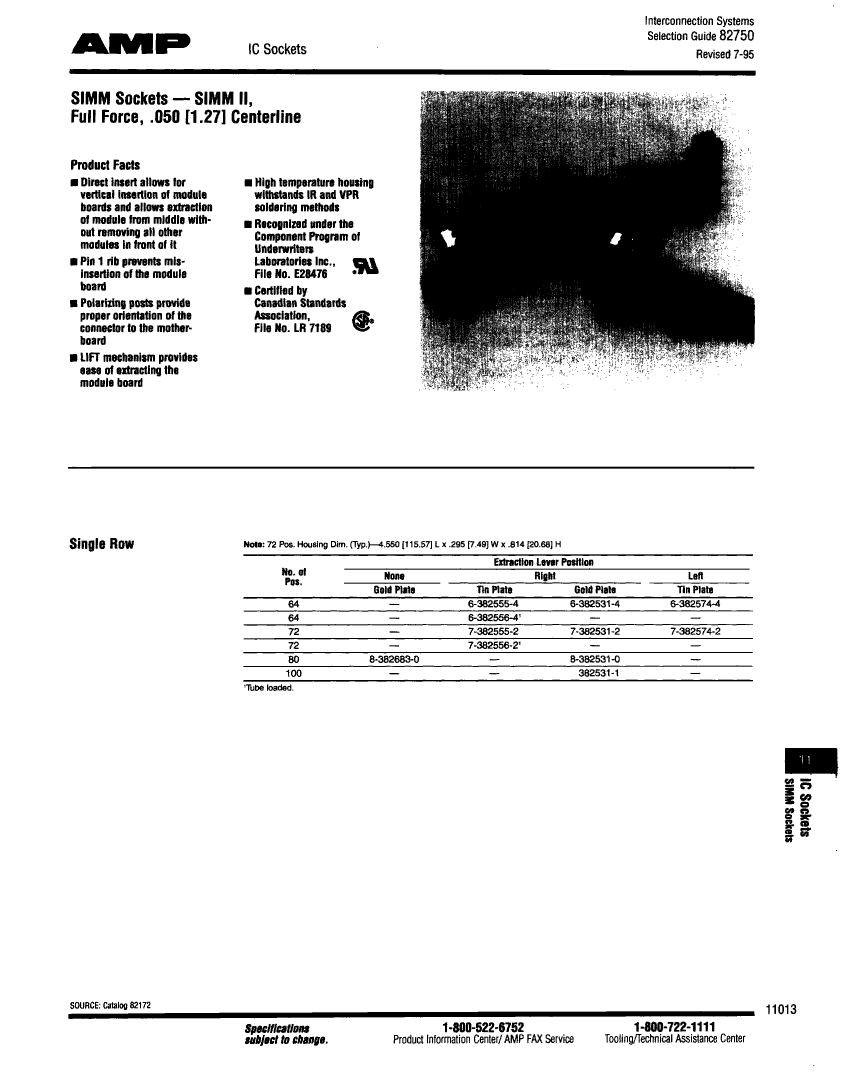

8-382480-4 Overview

SIMM/DIMM SOCKET,84 CONTACTS,1

Parameter Name	Attribute value
Objectid	302499560
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PLASTIC LATCHES
Board mount options	POLARIZATION POST
body width	0.325 inch
subject depth	0.607 inch
body length	5.15 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	GOLD
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	LIF N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	8-382480
Plug contact pitch	0.05 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.1 mm
Plating thickness	150u inch
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	84
