33523196 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 33523196

33523196: DescriptionBoard Connector, 2 Contact(s), 1 Row(s); CategoryThe connector The connector; File Size392KB，1 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric Compare View All

33523196 Overview

Board Connector, 2 Contact(s), 1 Row(s)

33523196 Parametric

Parameter Name	Attribute value
Maker	Delphi Connection Systems
Reach Compliance Code	unknown
body width	0.886 inch
body length	1.244 inch
Connector type	BOARD CONNECTOR
contact mode	RECTANGULAR
Manufacturer's serial number	33523196
Number of rows loaded	1
reliability	COMMERCIAL
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

NOTA

/ NOTES

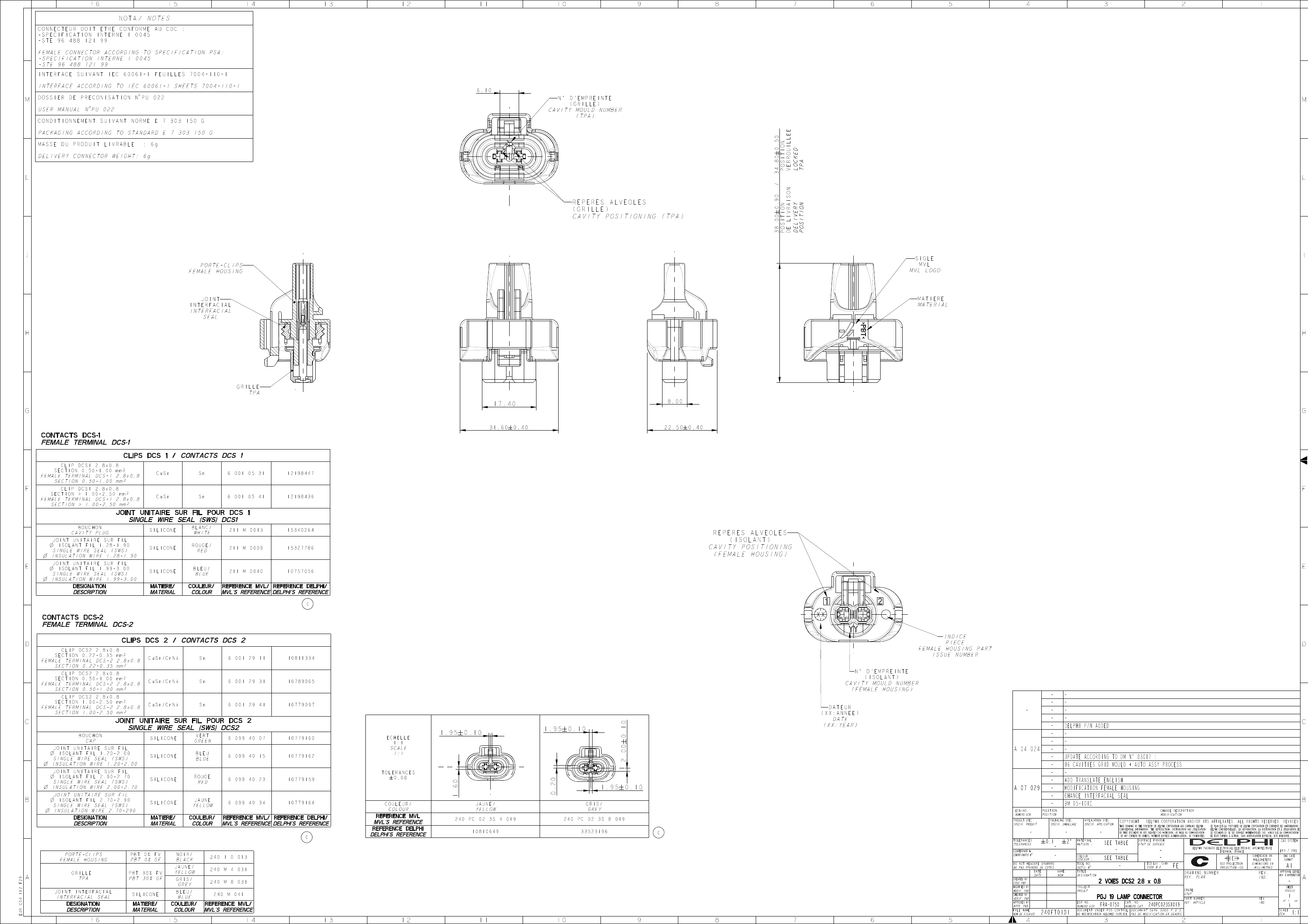

CONNECTEUR DOIT ETRE CONFORME AU CDC :

-SPECIFICATION INTERNE I 0045

-STE 96 488 121 99

FEMALE CONNECTOR ACCORDING TO SPECIFICATION PSA:

-SPECIFICATION INTERNE I 0045

-STE 96 488 121 99

INTERFACE SUIVANT IEC 60061-1 FEUILLES 7004-110-1

INTERFACE ACCORDING TO IEC 60061-1 SHEETS 7004-110-1

DOSSIER DE PRECONISATION N

PU 022

6.10

N° D'EMPREINTE

(GRILLE)

CAVITY MOULD NUMBER

(TPA)

USER MANUAL N

PU 022

CONDITIONNEMENT SUIVANT NORME E 7 303 150 G

PACKAGING ACCORDING TO STANDARD E 7 303 150 G

MASSE DU PRODUIT LIVRABLE

: 6g

34.80

0.50

POSITION

VERROUILLEE

LOCKED

TPA

DELIVERY CONNECTOR WEIGHT: 6g

REPERES ALVEOLES

(GRILLE)

CAVITY POSITIONING (TPA)

38.00 #

0.90

POSITION

DE LIVRAISON

DELIVERY

POSITION

PORTE-CLIPS

FEMALE HOUSING

SIGLE

MVL

MVL LOGO

JOINT

INTERFACIAL

SEAL

MATIERE

MATERIAL

GRILLE

TPA

COUPE

F-F

17.40

8.00

31.60

0.40

22.50

0.40

CONTACTS DCS-1

FEMALE TERMINAL DCS-1

CLIPS DCS 1 /

CLIP DCS1 2.8x0.8

SECTION 0.50-1.00 mm²

FEMALE TERMINAL DCS-1 2.8x0.8

SECTION 0.50-1.00 mm²

CLIP DCS1 2.8x0.8

SECTION > 1.00-2.50 mm²

FEMALE TERMINAL DCS-1 2.8x0.8

SECTION > 1.00-2.50 mm²

CuSn

CONTACTS DCS 1

6 001 05 31

12198447

CuSn

6 001 05 41

12198436

JOINT UNITAIRE SUR FIL POUR DCS 1

SINGLE WIRE SEAL (SWS) DCS1

BOUCHON

CAVITY PLUG

JOINT UNITAIRE SUR FIL

ISOLANT FIL 1.28-1.90

SINGLE WIRE SEAL (SWS)

INSULATION WIRE 1.28-1.90

JOINT UNITAIRE SUR FIL

ISOLANT FIL 1.99-3.00

SINGLE WIRE SEAL (SWS)

INSULATION WIRE 1.99-3.00

SILICONE

BLANC/

WHITE

ROUGE/

RED

211 M 0013

15340264

SILICONE

211 M 0009

15327786

REPERES ALVEOLES

(ISOLANT)

CAVITY POSITIONING

(FEMALE HOUSING)

SILICONE

BLEU/

BLUE

211 M 0010

10757056

DESIGNATION

DESCRIPTION

MATIERE/

MATERIAL

COULEUR/

COLOUR

REFERENCE MVL/

MVL'S REFERENCE

REFERENCE DELPHI/

DELPHI'S REFERENCE

CONTACTS DCS-2

FEMALE TERMINAL DCS-2

CLIPS DCS 2 /

CLIP DCS2 2.8x0.8

SECTION 0.22-0.35 mm²

FEMALE TERMINAL DCS-2 2.8x0.8

SECTION 0.22-0.35 mm²

CLIP DCS2 2.8x0.8

SECTION 0.50-1.00 mm²

FEMALE TERMINAL DCS-2 2.8x0.8

SECTION 0.50-1.00 mm²

CLIP DCS2 2.8x0.8

SECTION 1.00-2.50 mm²

FEMALE TERMINAL DCS-2 2.8x0.8

SECTION 1.00-2.50 mm²

CuSn/CrNi

CONTACTS DCS 2

6 001 29 11

10811334

INDICE

PIECE

FEMALE HOUSING PART

ISSUE NUMBER

N° D'EMPREINTE

(ISOLANT)

CAVITY MOULD NUMBER

(FEMALE HOUSING)

DATEUR

(XX:ANNEE)

DATE

(XX:YEAR)

CuSn/CrNi

6 001 29 31

10789065

CuSn/CrNi

6 001 29 41

10779097

BOUCHON

CAP

JOINT UNITAIRE SUR FIL

ISOLANT FIL 1.20-2.00

SINGLE WIRE SEAL (SWS)

INSULATION WIRE 1.20-2.00

JOINT UNITAIRE SUR FIL

ISOLANT FIL 2.00-2.70

SINGLE WIRE SEAL (SWS)

INSULATION WIRE 2.00-2.70

SILICONE

VERT

GREEN

BLEU

BLUE

6 099 40 07

10779160

SILICONE

6 099 40 15

10779162

1.60

0.20

SILICONE

ROUGE

RED

6 099 40 23

10779159

TOLERANCES

0.08

1.95

GRIS/

GREY

240 PC 02 3S 8 019

33523196

2.00

ECHELLE

1:1

SCALE

1:1

1.95

0.10

1.95

0.10

JOINT UNITAIRE SUR FIL POUR DCS 2

SINGLE WIRE SEAL (SWS) DCS2

A 04 024

0.10

A 07 029

JOINT UNITAIRE SUR FIL

ISOLANT FIL 2.70-2.90

SINGLE WIRE SEAL (SWS)

INSULATION WIRE 2.70-290

ECHELLE

1:1

SILICONE

JAUNE

YELLOW

6 099 40 34

10779161

COULEUR/

COLOUR

JAUNE/

YELLOW

240 PC 02 3S 4 019

10810649

DELPHI P/N ADDED

UPDATE ACCORDING TO DM N° 03017 :

16 CAVITIES GRID MOULD + AUTO ASSY PROCESS

ADD TRANSLATE ENGLISH

MODIFICATION FEMALE HOUSING

CHANGE INTERFACIAL SEAL

DM 05-101C

DESIGNATION

DESCRIPTION

MATIERE/

MATERIAL

COULEUR/

COLOUR

REFERENCE MVL/

MVL'S REFERENCE

REFERENCE DELPHI/

DELPHI'S REFERENCE

REFERENCE MVL

MVL'S REFERENCE

REFERENCE DELPHI

DELPHI'S REFERENCE

0.1

2°

SEE TABLE

PORTE-CLIPS

FEMALE HOUSING

GRILLE

TPA

JOINT INTERFACIAL

INTERFACIAL SEAL

PBT 0% FV

PBT 0% GF

PBT 30% FV

PBT 30% GF

SILICONE

NOIR/

BLACK

JAUNE/

YELLOW

GRIS/

GREY

BLEU/

BLUE

240 I 0 013

240 M 4 031

240 M 8 031

240 M 041

01/12/1999

2014/10/08

DEUBEL

F FAURIE

S LACOTE

Pascal MENARD

2 VOIES DCS2 2.8 x 0.8

PGJ 19 LAMP CONNECTOR

FRA-0750

240PC023SX019

240FT0101

SERIAL RELEASED

See Table

DESIGNATION

DESCRIPTION

MATIERE/

MATERIAL

COULEUR/

COLOUR

REFERENCE MVL/

MVL'S REFERENCE

2014/10/08

240FT0101

1:1

33523196 Related Products

	33523196	10810649
Description	Board Connector, 2 Contact(s), 1 Row(s)	Board Connector, 2 Contact(s), 1 Row(s)
Maker	Delphi Connection Systems	Delphi Connection Systems
Reach Compliance Code	unknown	unknown
body width	0.886 inch	0.886 inch
body length	1.244 inch	1.244 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
contact mode	RECTANGULAR	RECTANGULAR
Manufacturer's serial number	33523196	10810649
Number of rows loaded	1	1
reliability	COMMERCIAL	COMMERCIAL
Total number of contacts	2	2
