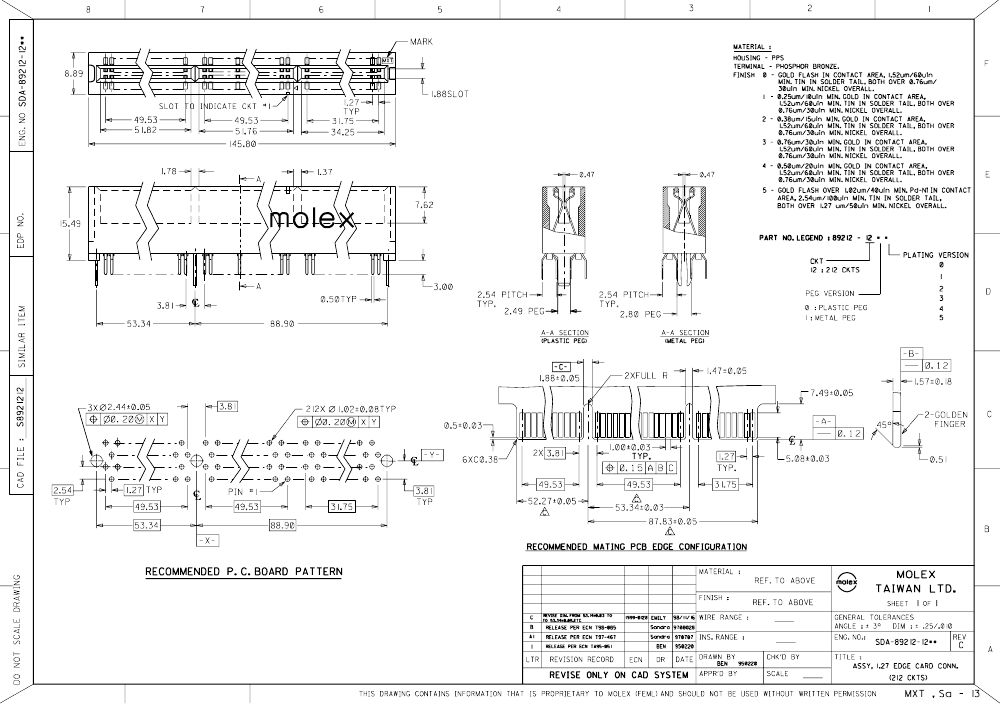

Card Edge Connector, 212 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | ROHS AND ELV COMPLIANT |
| Board mount options | LOCATING POSTS |
| body width | 0.35 inch |
| subject depth | 0.61 inch |
| body length | 5.74 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | POLYPHENYLENE SULPHIDE |
| MIL compliance | NO |
| Manufacturer's serial number | 89212 |
| Plug contact pitch | 0.05 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 10u inch |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 1.27 mm |
| Termination type | SOLDER |
| Total number of contacts | 212 |
| Base Number Matches | 1 |
| 89212-1211 | 89212-1210 | 89212-1215 | |
|---|---|---|---|
| Description | Card Edge Connector, 212 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle | Card Edge Connector, 212 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle | Card Edge Connector, 212 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle |
| Maker | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | ROHS AND ELV COMPLIANT | ROHS AND ELV COMPLIANT | ROHS AND ELV COMPLIANT |
| Board mount options | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS |
| body width | 0.35 inch | 0.35 inch | 0.35 inch |
| subject depth | 0.61 inch | 0.61 inch | 0.61 inch |
| body length | 5.74 inch | 5.74 inch | 5.74 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU-PD-NI ON NI |
| Contact point gender | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| DIN compliance | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| insulator material | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULPHIDE |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 89212 | 89212 | 89212 |
| Plug contact pitch | 0.05 inch | 0.05 inch | 0.05 inch |
| Mixed contacts | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 |
| Number of rows loaded | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | 10u inch | FLASH inch | FLASH inch |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.118 inch | 0.118 inch | 0.118 inch |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 212 | 212 | 212 |
| Base Number Matches | 1 | 1 | 1 |
| ECCN code | EAR99 | - | EAR99 |
