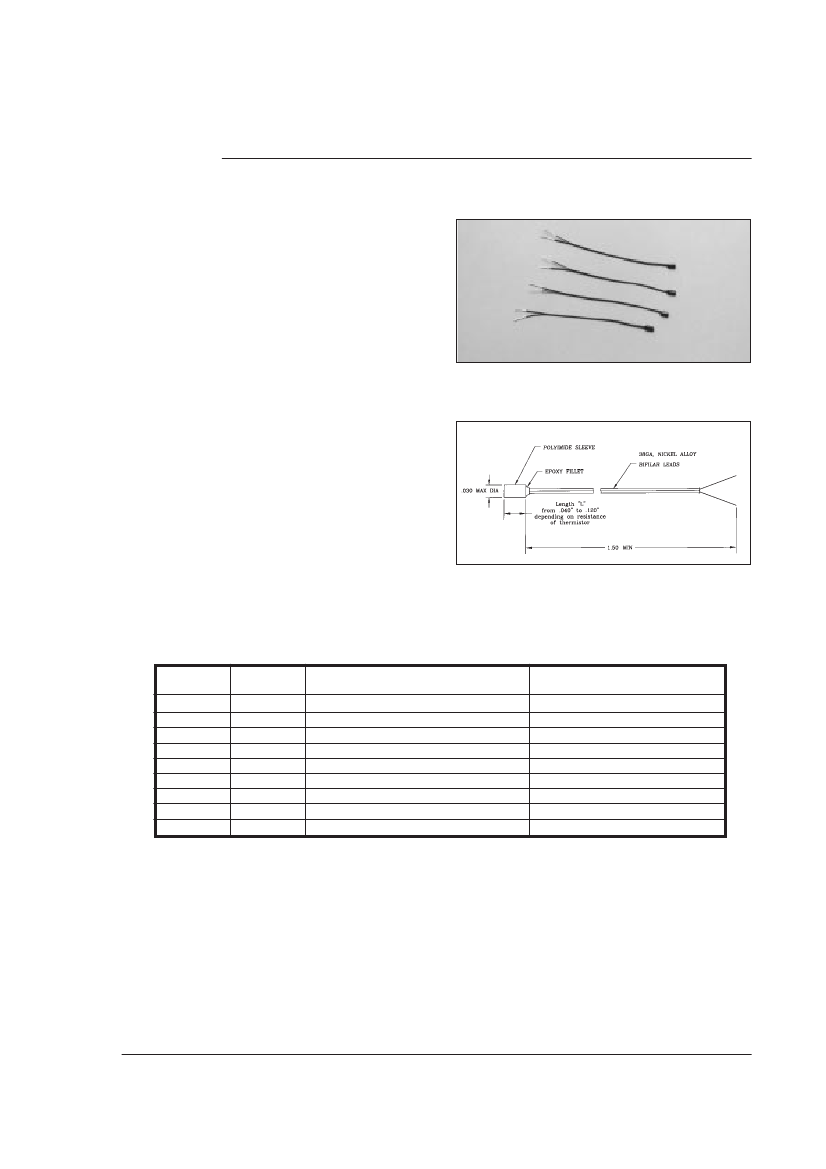

NTC THERMISTORS:
TYPE SC30
INSULATED LEAD INTERCHANGEABLE CHIP THERMISTOR
DESCRIPTION:
Sleeved interchangeable chip thermistors with
heavy isomid insulated Nickel lead-wires.
FEATURES:
•
Precision, solid state temperature sensor
•
Epoxy filled sleeve for controlled diameter
•
Interchangeability down to ±0.1°C
•
Suitable for use over the range of
–40°C to +105°C
•
Small size, fast response
•
High sensitivity greater than –4% / °C at 25°C
•
Suitable for temperature measurement,
control and compensation
•
High reliability and stability over
interchangeable range
•
Ideal for Medical applications
•
Most popular R-vs-T curves are available
•
Fully insulated
•
Sleeved for good mechanical strength and
resistance to solvents
•
.004" (.1 mm) dia. heavy isomid insulated
Bifilar Nickel lead-wires
DIMENSIONS:
Select appropriate part number below for resistance and temperature tolerance desired
R25°C
MATERIAL
SYSTEM
± .1°C
0°C to 70°C
± .2°C
0°C to 70°C
2252
3000
5000
10000
10000
30000
50000
100000
100000
F
F
F
F
Y
H
G
Y
G
SC30F232V
SC30F302V
SC30F502V
SC30F103V
SC30Y103V
SC30H303V
SC30G503V
SC30Y104V
SC30G104V
SC30F232W
SC30F302W
SC30F502W
SC30F103W
SC30Y103W
SC30H303W
SC30Y503W
SC30Y104W
SC30G104W
OPTIONS:
Consult factory for availability of options:
•
Other resistance values in the range of
100Ω - 100kΩ
•
Other tolerances or ranges
•
Alternative lead wires or lengths
•
Non standard R-vs-T curves
•
Controlled dimensions
DATA:
THERMAL AND ELECTRICAL PROPERTIES:
Dissipation constant:........(still
air)
.4 mW/°C
(stirred oil) 3 mW/°C
Thermal time constant:.....(still
air)
5 sec.
(stirred oil)
.3 sec.
Maximum power at 25°C
............................ mW
(derated from 100% at 25°C to 0% at 100°C)
