Multilayer Chip Ceramic Inductors
——SCI-1608
Features
1. SMD type chip inductors utilizing monolithic structure provide highly reliable surface mount applications.
2. Superior Q characteristics is guaranteed over the wide frequency range for high frequency applications.
3. Excellent solder heat resistance for soldering.
4. Lead Free (RoHS Compliance)
PAGE
1/2
Applications
1. RF module of telecommunication products.
- Cellular phone, Cordless telephone etc.
2. GSM Phone, PCS Phone.
3. Computer communications, Radar detectors.
4. Automotive electronics, Keyless remote.
Ordering Information
SCI - B
(1)
(2)
1608 - 120 -
(3)
(4)
K
(5)
J
(6)
T
(7)
(5) Tolerance
S :
±
0.3nH
J :
±
5%
K :
±
10%
(6) Termination
J : Nickel barrier
⑺
Packing
B : Bulk Packing
T : Tape & Reel (Φ 178㎜ [ 7inches])
L : Tape & Reel (Φ 254㎜ [10inches])
(1) Series
(2) Material & design
(3) Dimensions
The first two digits : length(㎜)
The last two digits : width(㎜)
(4) Inductance
The first two digits are values.
The last digit is the number of zeros.
N : a decimal point placed between first two digits
Shape and Dimensions
unit : mm [inches]
Type
T
W
L
1.6±0.15
〔.063±.006〕
W
0.8±0.15
〔.031±.006〕
T
0.8±0.15
〔.031±.006〕
C
0.30±0.20
〔.012±.008〕
SCI-□1608-
C
L
※
The polarity mark can be provided upon customer's request.
*All specifications are subject to change without notice.
Multilayer Chip Ceramic Inductors
——SCI-1608
Electrical Parameters
Part No.
SCI-B1608-10N□□□
SCI-B1608-12N□□□
SCI-B1608-15N□□□
SCI-B1608-18N□□□
SCI-B1608-22N□□□
SCI-B1608-27N□□□
SCI-B1608-33N□□□
SCI-B1608-39N□□□
SCI-B1608-47N□□□
SCI-B1608-56N□□□
SCI-B1608-68N□□□
SCI-B1608-82N□□□
SCI-B1608-100□□□
SCI-B1608-120□□□
SCI-B1608-150□□□
SCI-B1608-180□□□
SCI-B1608-220□□□
SCI-B1608-270□□□
SCI-B1608-330□□□
SCI-B1608-390□□□
SCI-B1608-470□□□
SCI-B1608-560□□□
SCI-B1608-680□□□
SCI-B1608-820□□□
SCI-B1608-101□□□
SCI-B1608-121□□□
SCI-B1608-151□□□
SCI-B1608-181□□□
SCI-B1608-221□□□
SCI-B1608-271□□□
* SRF : Self-Resonant Frequency.
Inductance
nH
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
Tolerance
Q
min.
8
8
8
8
8
8
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
8
8
8
8
8
L, Q test
frequency (MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
SRF (MHz)
min.
4000
4000
4000
3800
3600
3400
3200
3000
2800
2700
2600
2200
1800
1650
1350
1350
1100
1100
1000
900
800
700
650
600
550
500
500
400
400
350
typ.
13000
13000
10000
10000
10000
8000
6000
6000
5000
5000
4000
4000
3000
2500
2000
2000
1800
1600
1400
1300
1300
1100
1000
850
750
650
600
500
500
450
DCR
(mΩ) max.
100
100
100
120
160
200
220
250
280
290
300
330
350
400
450
500
550
600
650
700
900
1000
1200
1500
1700
2000
2400
2700
2800
3100
PAGE
2/2
Rated current
(mA) max
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
250
200
200
200
200
±0.3nH
±
5%
±10%
* DCR : DC Resistance

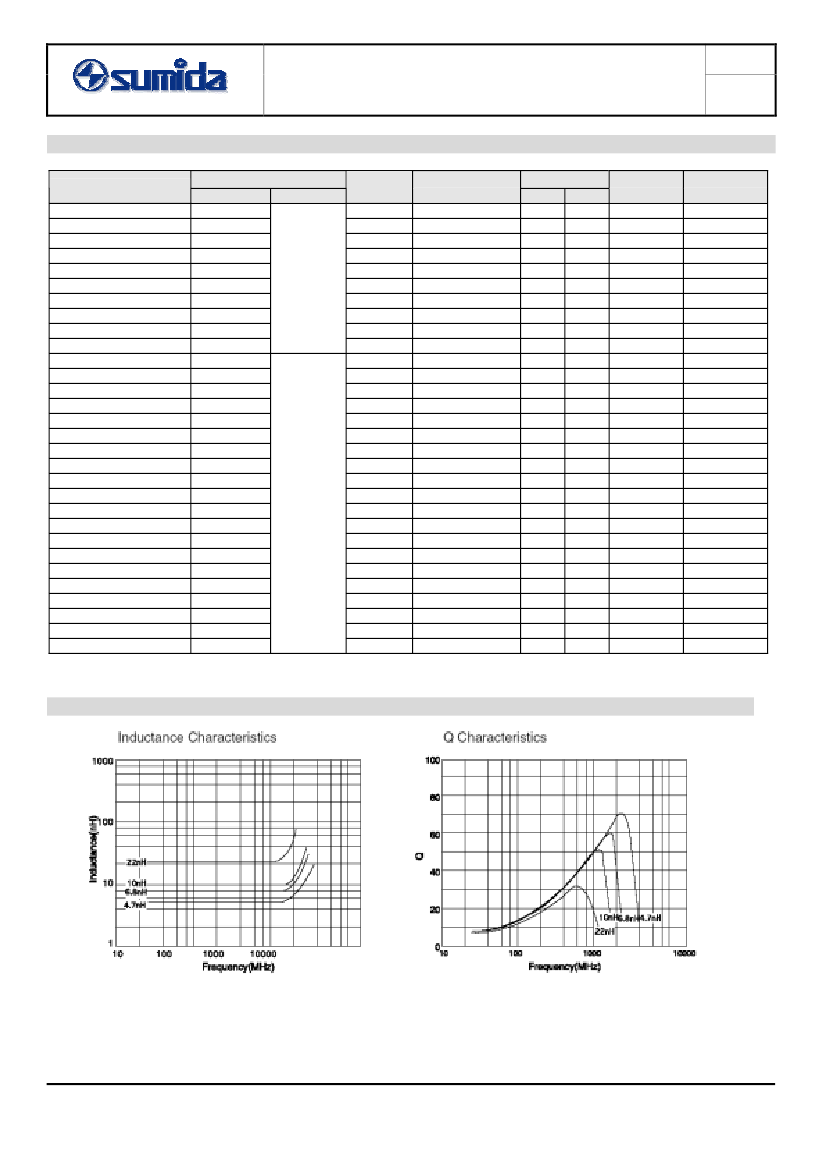

Electrical characteristic Curves
Test Equipment & Fixture
L, Q : RF Impedance Analyzer HP4291A , Test Fixture HP16192A
SRF : Network Analyzer 8722ES (Agilent)
Rdc : TWA-161A,B
*All specifications are subject to change without notice.
