DTS-644B-S-Q: DescriptionKeypad Switch, SPST, Momentary, 0.5A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size1MB，1 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

DTS-644B-S-Q Overview

Keypad Switch, SPST, Momentary, 0.5A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight

DTS-644B-S-Q Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
Actuator angle
Actuator length	0.15 inch
Actuator material	STAINLESS STEEL
Actuator stroke	6.35 mm
Actuator type	PUSHBUTTON
body width	6.1976 mm
body height	3.5052 mm
Body length or diameter	6.1976 mm
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	0.5A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	1000000 Cycle(s)
Manufacturer's serial number	DTS-6
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	4
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal length	0.138 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

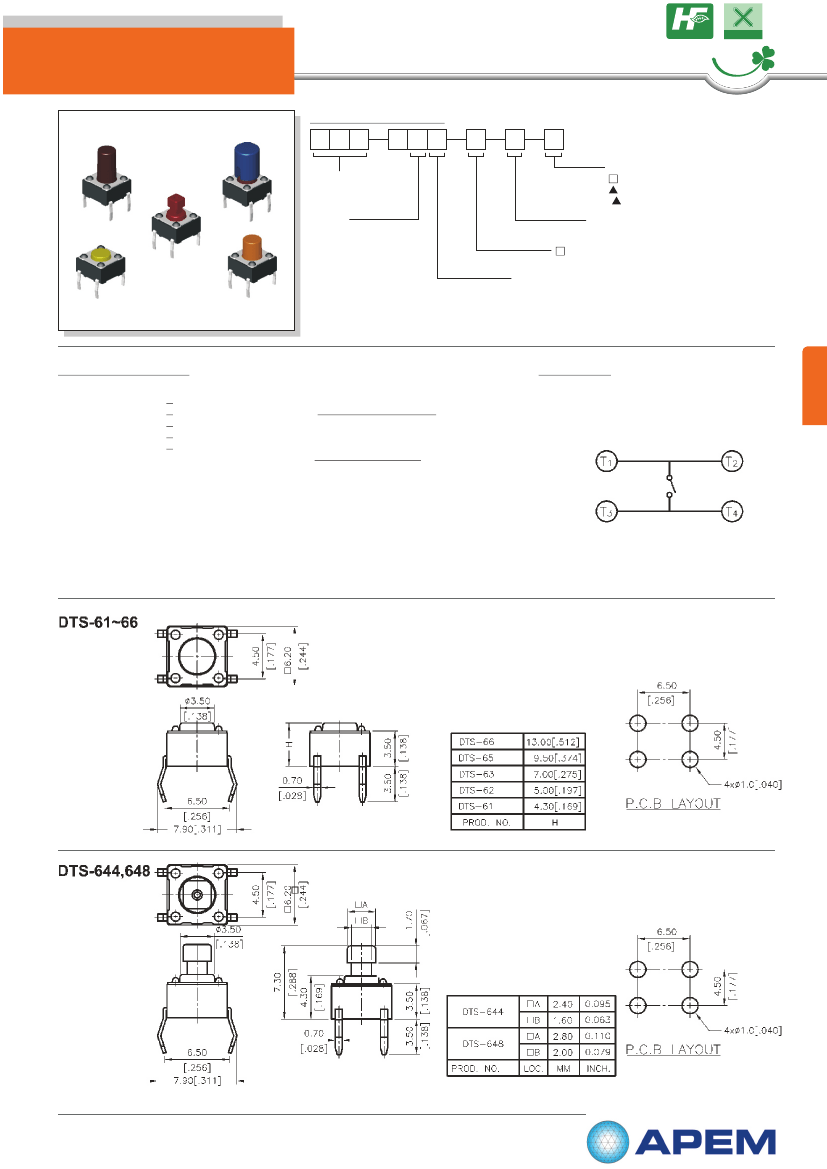

DTS-6 SERIES

6x6

Through Hole Type

HOW TO ORDER

Halogen Free

LEAD FREE

RoHS

Compliant

Through Hole

Package:

= Bulk pack

B = Tube

( DTS-61, 62 Only)

V=RoHS & Lead Free Solderable

Q=Halogen Free

=Phosphor Bronze Dome

S=Stainless Steel Dome

Operating Force :

B=Blue, 70gf

K=Black, 100gf

N=Brown, 160gf R=Red, 260gf

S=Salmon, 320gf

>Not Available For Halogen Free

Y=Yellow, 520gf

Height:

1=4.3mm

2=5.0mm

3=7.0mm

44=7.3mm (SQ.)x2.4mm

48=7.3mm (SQ.)x2.8mm

5=9.5mm

6=13mm

SPECIFICATION

MECHANICAL

Operation Force: 520 + 130gf Yellow(Y)

320 + 80gf Salmon(S)

260 + 50gf Red(R)

160 + 50gf Brown(N)

100 + 50gf Black(K)

Stroke : 0.25+0.2/-0.1mm

ENVIRONMENTAL

Operation Temperature Range : -25C to +70C

Storage Temperature Range : -30C to +80C

ELECTRICAL

Electrical Life:

*Phosphor Bronze Dome

50,000 cycles for 320gf, 520gf

100,000 cycles for 260gf

200,000 cycles for 70gf, 100gf, 160gf

*Stainless Steel Dome

300,000 cycles for 320gf, 520gf

500,000 cycles for 260gf

1,000,000 cycles for 70gf, 100gf, 160gf

Rating: 50mA , 12VDC

PACKAGE

DTS-6: 1000 pcs/bag

DTS-61/62: 77 pcs/tube

CIRCUIT

TACT SWITCH
