D
1.14 28.9
D
C
5/16-32 THREAD
RCA JACK
.47 [11.94]
ACROSS FLATS
C
NUT
GROUNDING LUG
.375 9.5
2X INSULATED WASHER
B
RECOMMENDED HOLE
OPENING
B
NOTES:
MATERIAL:
BODY: COPPER
INSULATED WASHER: POLYETHYLENE
NUT: COPPER
GROUNDING LUG: COPPER
FINISH:
BODY: GOLD PLATE
NUT: GOLD PLATE
GROUNDING LUG: GOLD PLATE
RoHS Compliant
APPROVALS
UNLESS OTHERWISE SPECIFIED,
DRAWN BY
DIMENSIONS ARE IN INCHES [mm]
C.MCCORMICK
TOLERANCES TO BE:
.X .1 [2.5]
ANGLES 2 CHECKED BY
.XX .01 [.25]
D.PARHAM
.XXX .005 [.13]
OVERALL CABLE LENGTH TOL:
≤
60 [1524] +3 [76.2] / - 0
> 60 [1524] +5% / -0%
PROJ
APPROVED BY
R.CARRICK
DATE
CATEGORY
12/18/2001
12/18/2001
12/18/2001
SIZE
PRODUCT DESCRIPTION
A
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845

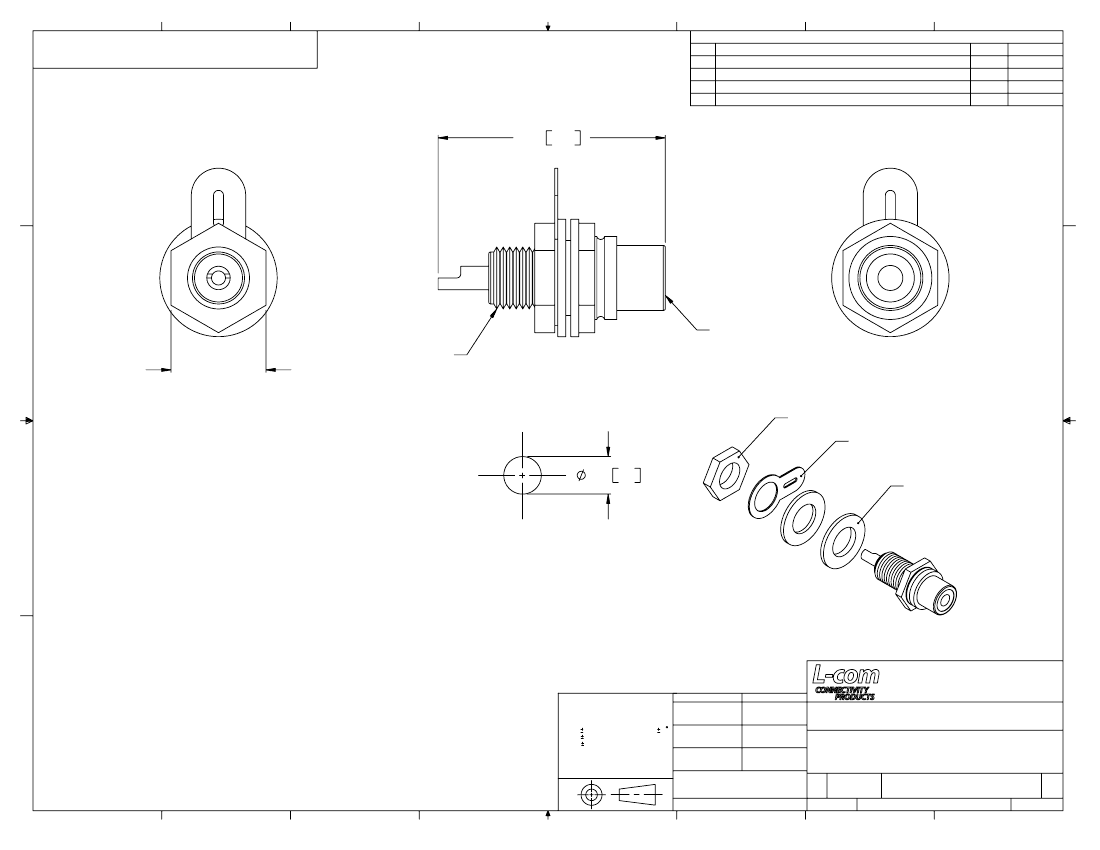

COAXIAL
A
RECEPTACLE RCA F BHD W/INS WS
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
SCALE: NONE CAD FILE:
A
43321
FSCM NO.
DWG. NO.
BAC440
1
BAC440.SLDDRW
SHEET 1 OF 1
