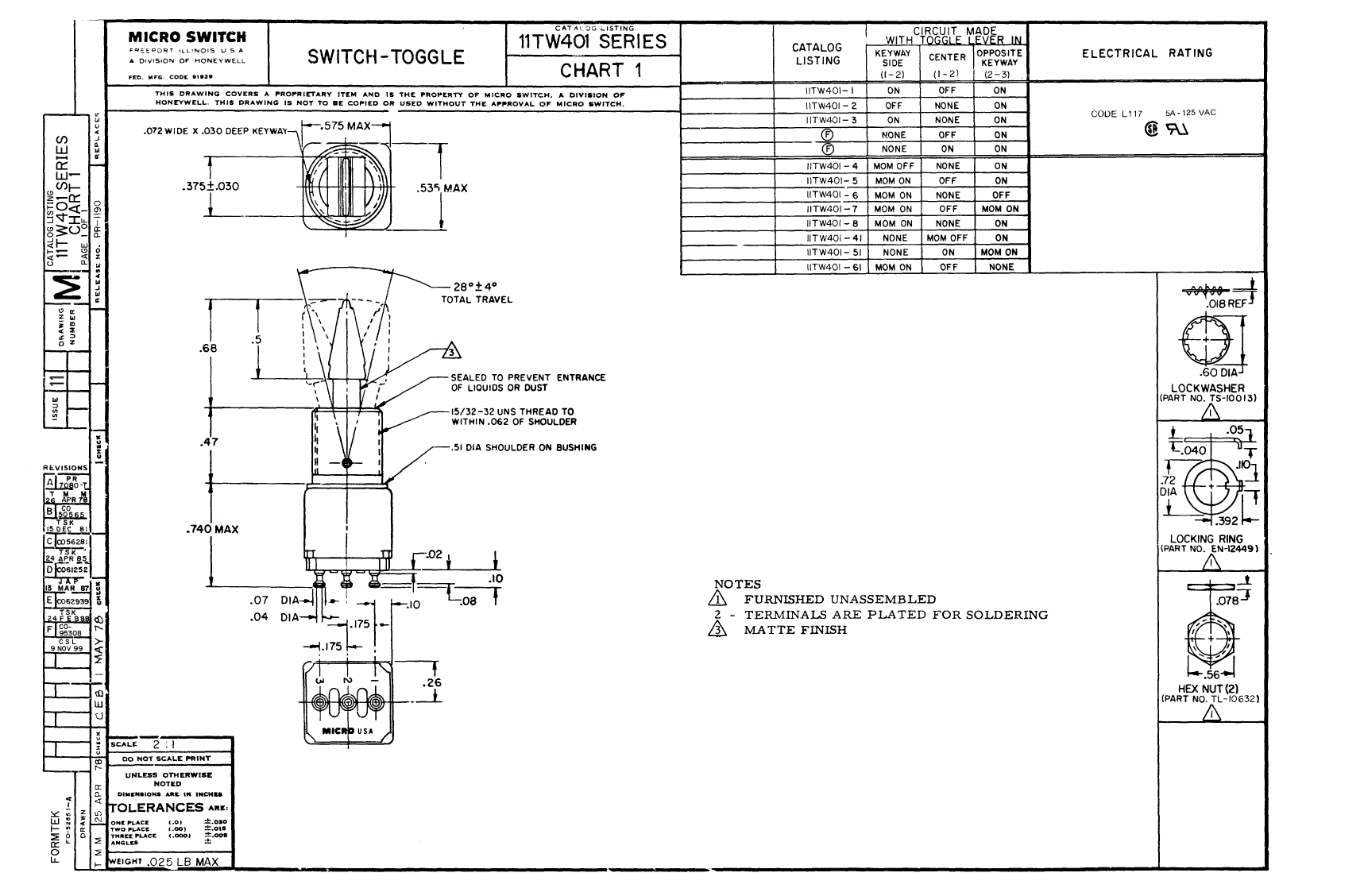

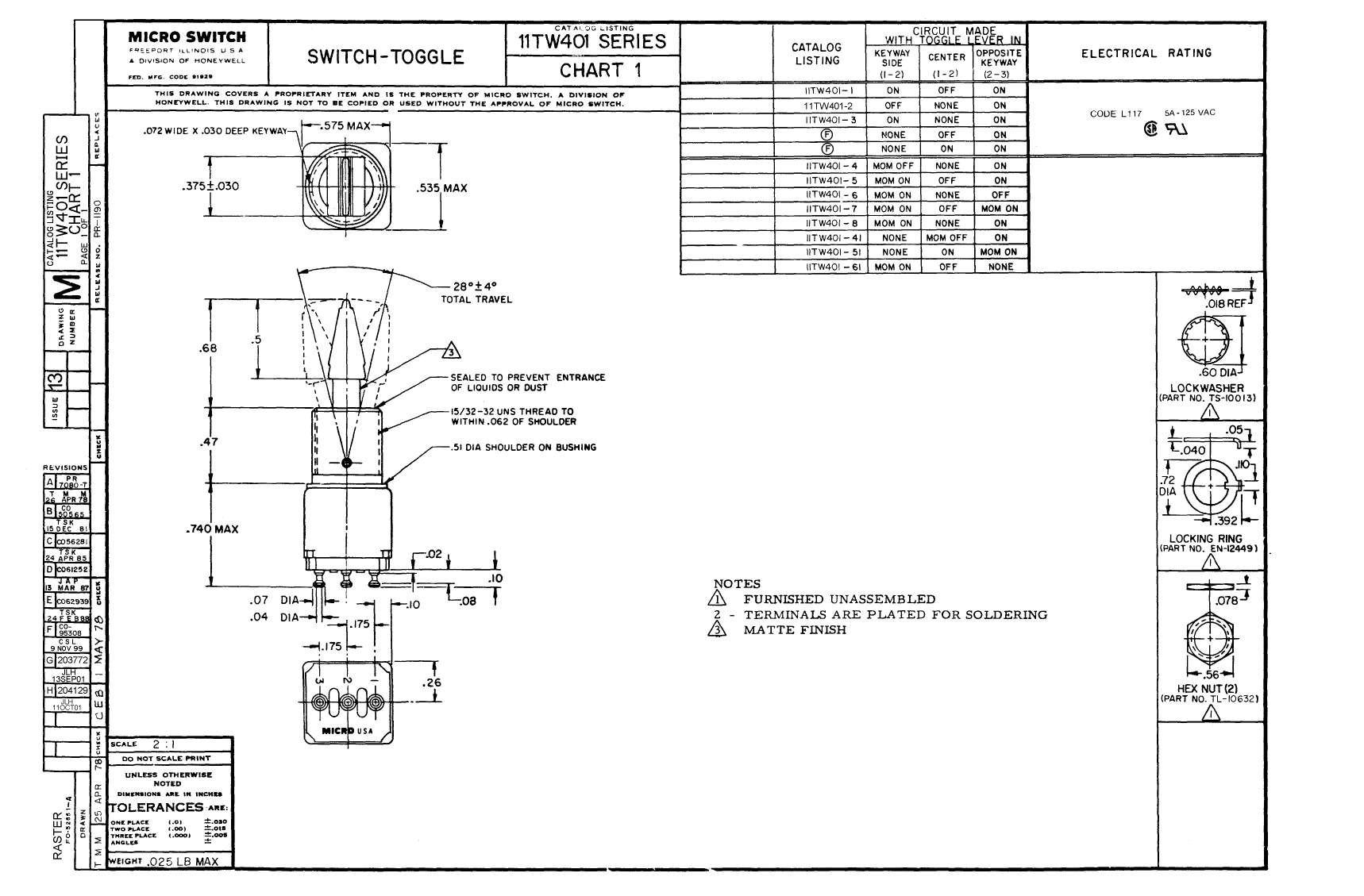

Preview

11TW401-6: DescriptionToggle Switch, SPST, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size133KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

11TW401-6 Overview

Toggle Switch, SPST, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded

11TW401-6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	13.59 mm
body height	18.8 mm
Body length or diameter	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	11TW401
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

11TW401-6 Related Products

	11TW401-6	1201080039_V01	11TW401-5	11TW401-3	11TW401-4	11TW401-8
Description	Toggle Switch, SPST, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Micro-Change (M12) Double-Ended Cordset, 4 Poles, Male (Straight) to Male	Toggle Switch, SPDT, Latched And Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded
Reach Compliance Code	unknow	-	unknow	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	-	LEVER	LEVER	LEVER	LEVER
body width	13.59 mm	-	13.59 mm	13.59 mm	13.59 mm	13.59 mm
body height	18.8 mm	-	18.8 mm	18.8 mm	18.8 mm	18.8 mm
Body length or diameter	14.61 mm	-	14.61 mm	14.61 mm	14.61 mm	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC	-	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	-	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	-	125 V	125 V	125 V	125 V
Manufacturer's serial number	11TW401	-	11TW401	11TW401	11TW401	11TW401
Installation features	PANEL MOUNT-THREADED	-	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF	-	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	-	NO	NO	NO	NO
Switch action	MOMENTARY	-	LATCHED AND MOMENTARY	LATCHED	MOMENTARY	MOMENTARY
switch function	SPST	-	SPDT	SPDT	SPDT	SPDT
Switch type	TOGGLE SWITCH	-	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	-	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	-	1	1	1	1
