SESD05
Elektronische Bauelemente
RoHS Compliant Product
VOLTAGE:
5.0
V
110
W Transient Voltage Suppressors Diode
DESCRIPTION
.
Designed to protect voltage sensitive components from ESD.
.
Excellent clamping capability, low leakage and fast response.
.
Cellular phones, MP3 players, digital cameras ... etc.
.
Suitable for electronics where board space is a major design consideration.
.008REF
(0.20)REF
SOD-723
.043(1.10)
.035(0.90)
.014(0.35)
.010(0.25)
.026(0.65)
.022(0.55)
.059(1.50)
.051(1.30)
7 REF
o
7 REF
o
.
Response time is typically < 1 ns
.
Low leakage
.
Stand-off voltage: 5V
.
ESD rating of class 3 (> 16 kV) per human body model
.
IEC61000-4-2 level 4 ESD protection
FEATURES
.003(0.07)
.001(0.01)
7 REF
o
7 REF
o
.006(0.15)
.003(0.08)
.023(0.580)
.020(0.515)
.026(0.650)
.021(0.525)
Dimensions in inches and (millimeters)
MARKING CODE
E2
K
A
MAXIMUM RATINGS
Rating 25 C ambient temperature unless otherwise specified.
o
Air
IEC61000-4-2 (ESD)
Contact
per human body model
ESD Voltage
per machine model
Lead Solder Temperature - Max. (10 sec duration)
Thermal Resistance Junction-to-ambient
Junction and Storage Temperature Range
Total Power Dissipation on FR-5 board (Note 1)
TYPE NUMBER
SYMBOL
V
ESD
T
L
R
θJA
T
J
, T
STG
P
D
LIMITS
+/- 16
+/- 8
16
400
260
833
-55 ~ +150
150
UNITS
kV
kV
V
C
C/W
C
mW
o
o
o
Stresses exceeding "Maximum Ratings" may damage the device. "Maximum Ratings" are stress ratings only. Functional operation above
the recommended. Operating conditions is not implied. Extended exposure to stresses above the recommended operating conditions
may affect device reliability.
1. FR-5 = 1.0 x 0.75 x 0.62 in.
http://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
Page 1 of 2
24-Aug-2007 Rev. A
SESD05
Elektronische Bauelemente
VOLTAGE:
5.0
V
110
W Transient Voltage Suppressors Diode
ELECTRICAL CHARACTERISTICS
(T = 25
o
C unless otherwise noted, V
F
= 0.9V Max. @ I
F
=10mA for all types)
TYPE NUMBER
Reverse Stand-Off Voltage
Reverse Leakage Current
Peak Pulse Current
Clamping Voltage
Reverse Breakdown Voltage
Test Current
Junction Capacitance
Peak Power Dissipation
SYMBOL
V
RWM
I
R
I
PP
V
C
V
BR
I
T
C
P
PK
Min.
-
-
-
-
6.2
-
-
-
Typ.
-
-
-
-
-
1.0
65
-
Max.
5.0
1.0
8.8
13.3
-
-
-
117
UNIT
V
µA
A
V
V
mA
pF
W
TEST CONDITIONS
V
RWM
= 5.0 V
(surge charge waveform per Figure 2.)
I
PP
= 8.8A
(surge charge waveform per Figure 2.)
I
T
= 1mA, T
AMBIENT
= 25 C
o
(surge charge waveform per Figure 2.)

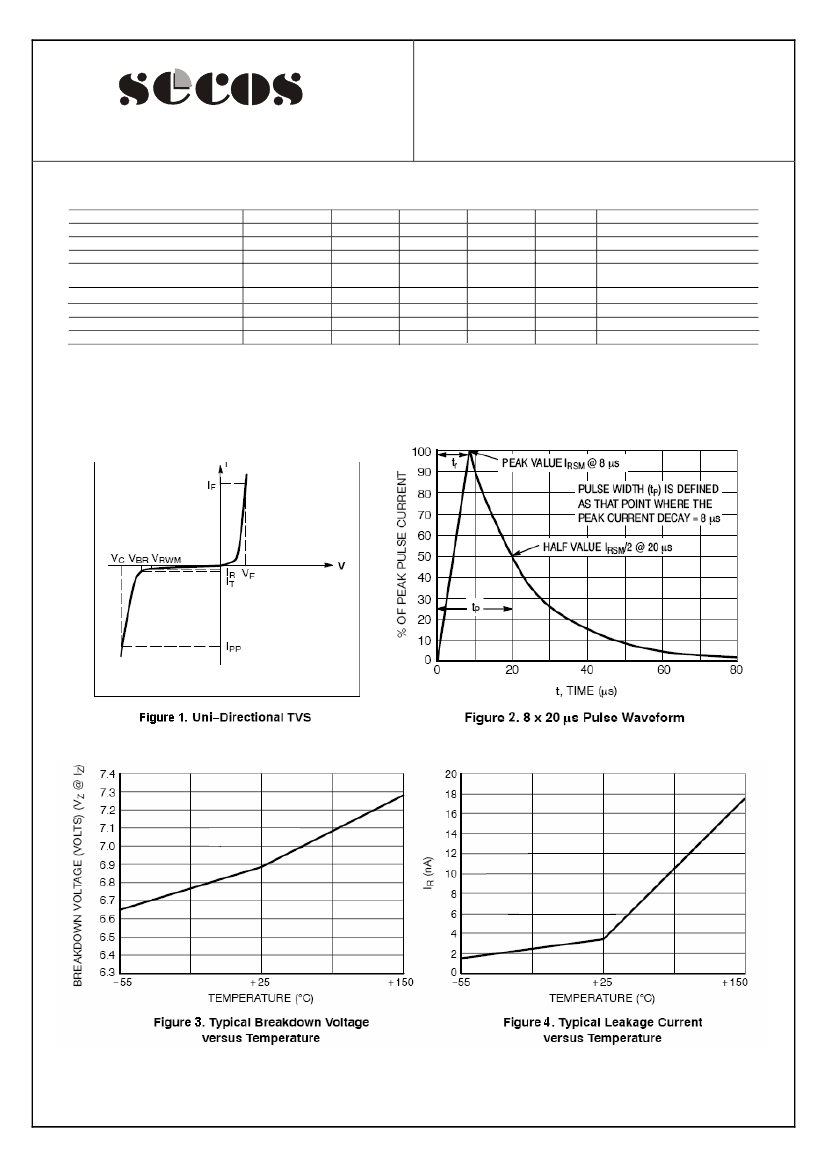

ELECTRICAL CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
Page 2 of 2
24-Aug-2007 Rev. A
