LM224JG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM224JG

LM224JG: DescriptionQUAD OP-AMP, CDIP14, LEAD FREE, CERAMIC, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size190KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

LM224JG Overview

QUAD OP-AMP, CDIP14, LEAD FREE, CERAMIC, DIP-14

LM224JG Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	85 dB
JESD-30 code	R-GDIP-T14
length	19.495 mm
Negative supply voltage upper limit	-16 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Supply voltage upper limit	16 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

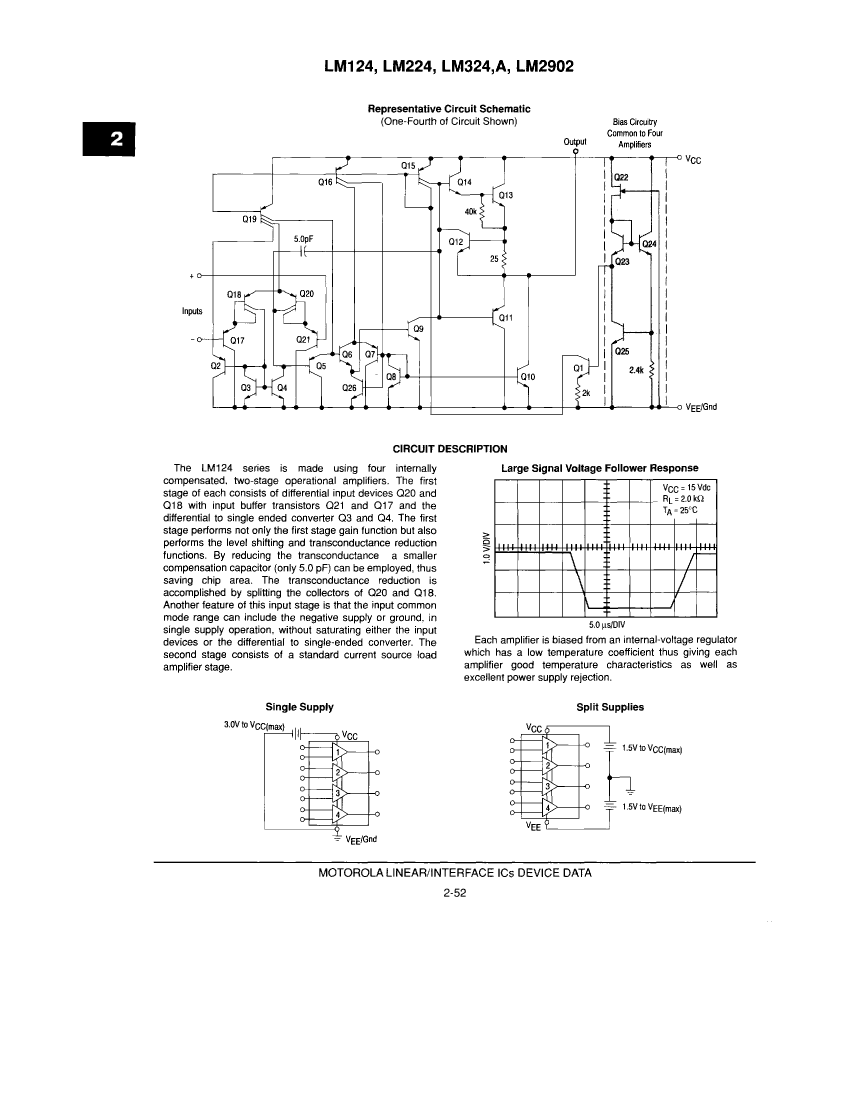

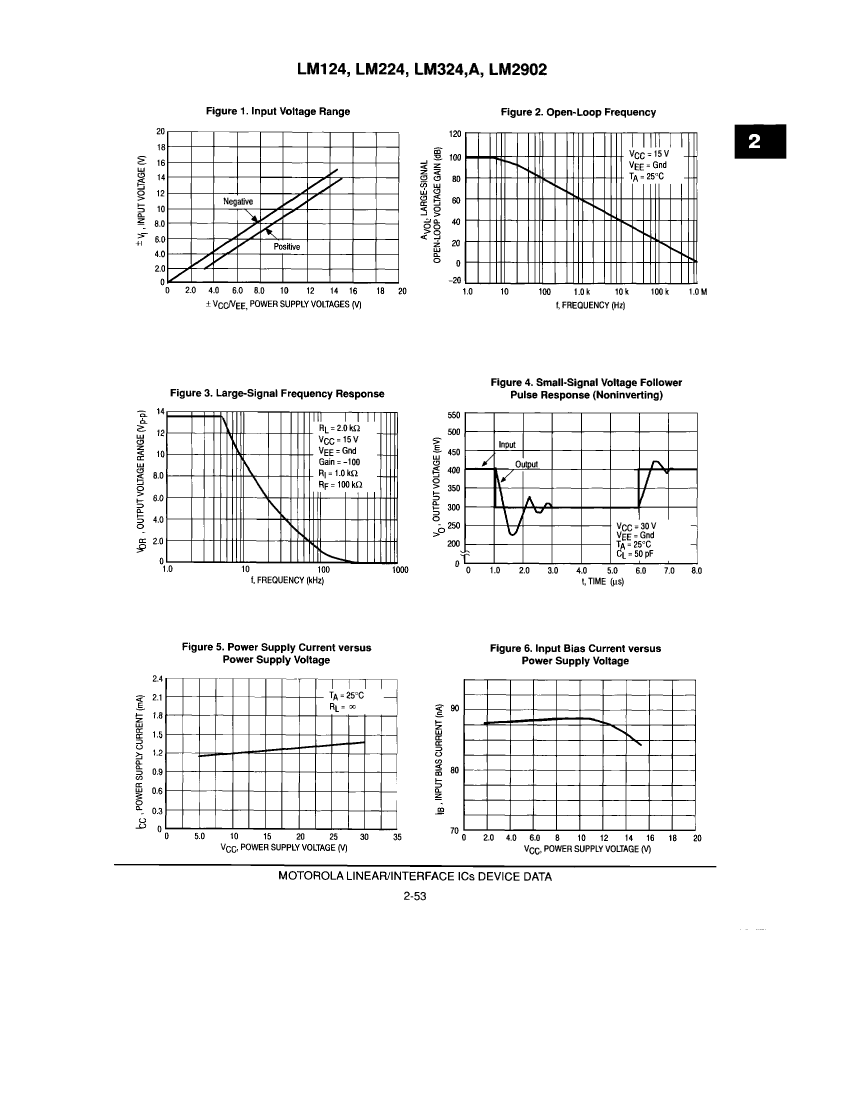

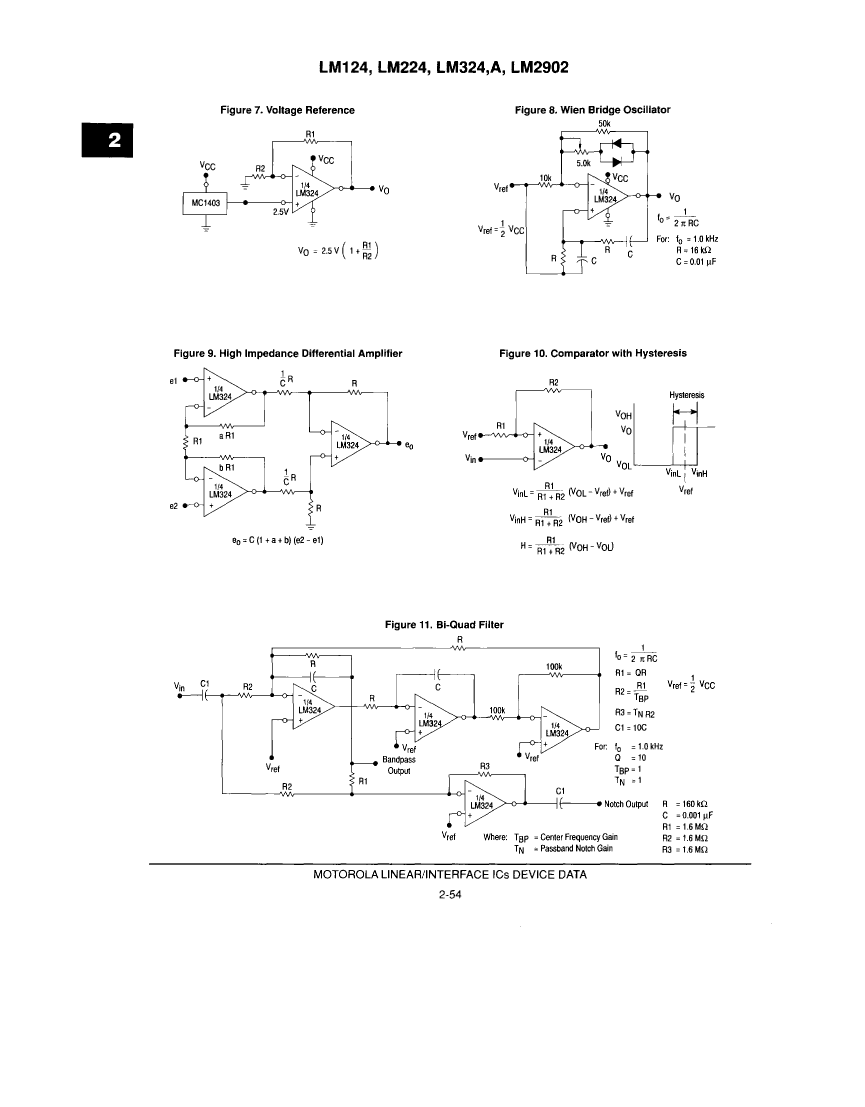

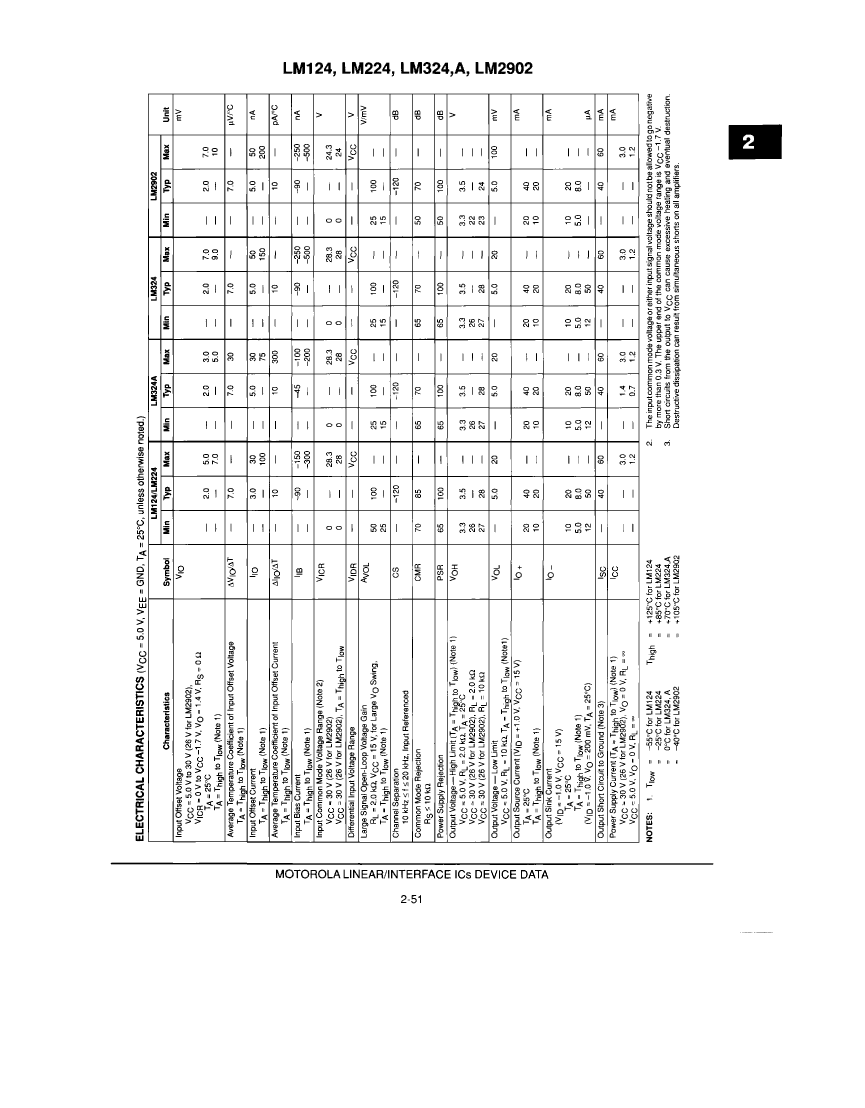

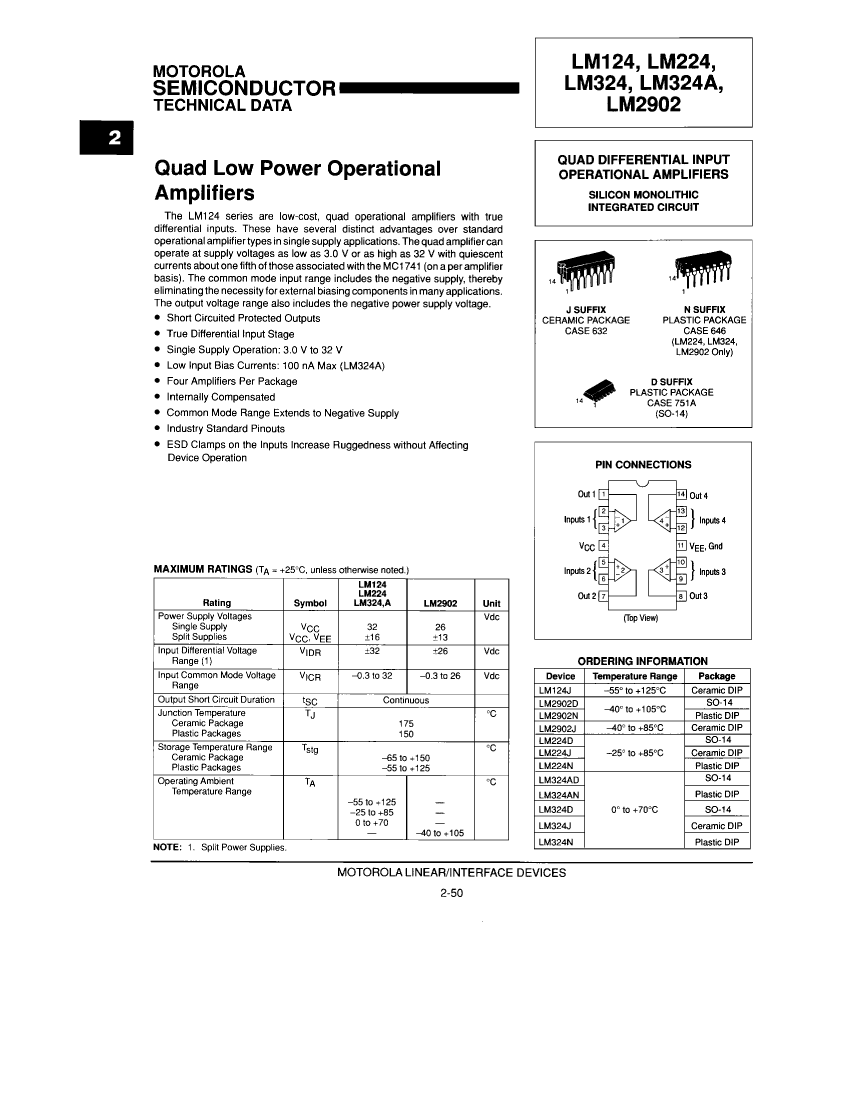

Preview

Download Datasheet

View All

LM224JG Related Products

	LM224JG	LM324J	LM224J	LM124J	LM2902J
Description	QUAD OP-AMP, CDIP14, LEAD FREE, CERAMIC, DIP-14	QUAD OP-AMP, 7000uV OFFSET-MAX, CDIP14, CERAMIC, DIP-14	QUAD OP-AMP, 5000uV OFFSET-MAX, CDIP14, CERAMIC, DIP-14	QUAD OP-AMP, 5000uV OFFSET-MAX, CDIP14, CERAMIC, DIP-14	QUAD OP-AMP, 7000uV OFFSET-MAX, CDIP14, CERAMIC, DIP-14
package instruction	DIP,	DIP, DIP14,.3	CERAMIC, DIP-14	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	85 dB	70 dB	85 dB	85 dB	70 dB
JESD-30 code	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14
length	19.495 mm	19.495 mm	19.495 mm	19.495 mm	19.495 mm
Negative supply voltage upper limit	-16 V	-16 V	-16 V	-16 V	-13 V
Number of functions	4	4	4	4	4
Number of terminals	14	14	14	14	14
Maximum operating temperature	85 °C	70 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-25 °C	-	-25 °C	-55 °C	-40 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Supply voltage upper limit	16 V	16 V	16 V	16 V	13 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
Temperature level	OTHER	COMMERCIAL	OTHER	MILITARY	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	DIP	DIP	-	DIP	DIP
Contacts	14	14	-	14	14
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible
Architecture	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	-	0.25 µA	0.15 µA	0.15 µA	0.25 µA
Minimum Common Mode Rejection Ratio	-	65 dB	70 dB	70 dB	50 dB
frequency compensation	-	YES	YES	YES	YES
Maximum input offset voltage	-	7000 µV	5000 µV	5000 µV	7000 µV
JESD-609 code	-	e0	e0	e0	e0
low-dissonance	-	NO	NO	NO	NO
micropower	-	YES	YES	YES	YES
Encapsulate equivalent code	-	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	-	5/30 V	5/30 V	5/30 V	5/26 V
Maximum slew rate	-	1.2 mA	1.2 mA	1.2 mA	1.2 mA
technology	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Minimum voltage gain	-	25000	50000	50000	25000
