DF9A-09S-1V(22): DescriptionBoard Connector, 9 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

DF9A-09S-1V(22) Overview

Board Connector, 9 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,

DF9A-09S-1V(22) Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DF9
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

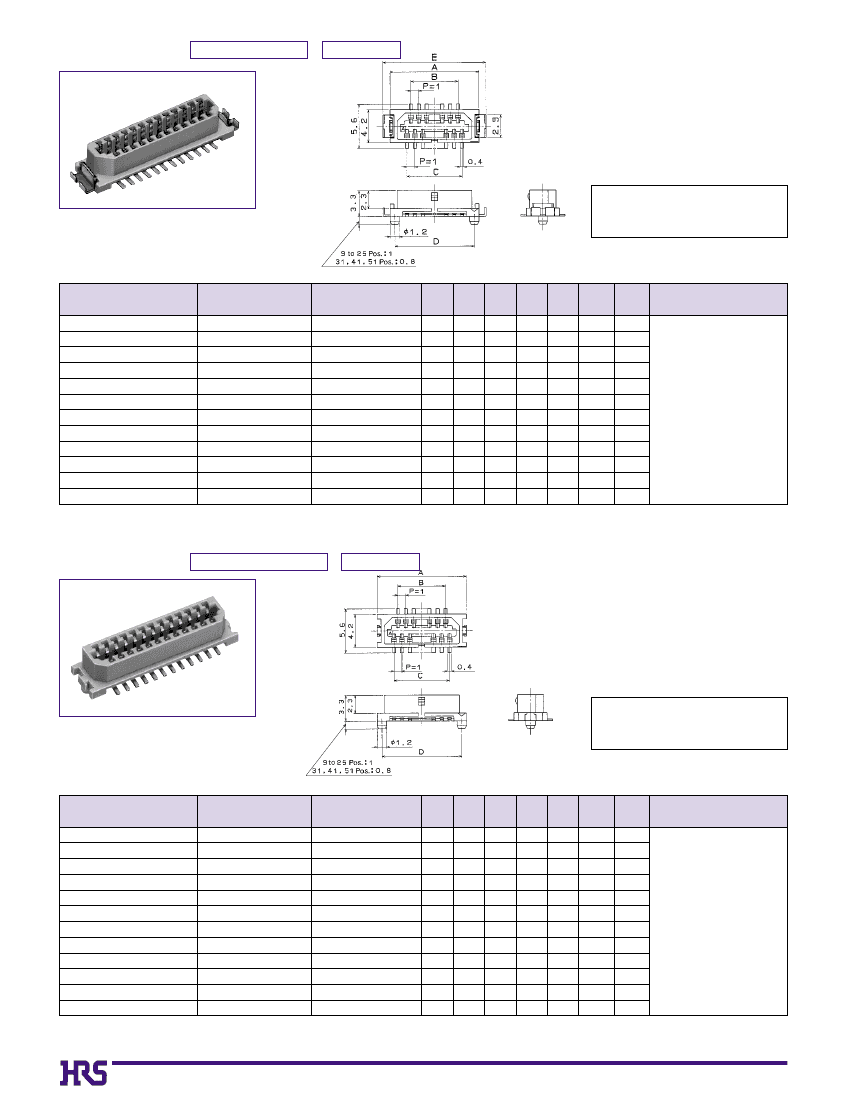

sReceptacle

With metal fitting

With boss

[Specific No.] _ **, (**)

(22)

: Tin plated, embossed tape packaging

(59)

: Gold plated, embossed tape packaging

Unit: mm

Part Number

CL No.

Number of Contacts

A

B

C

D

7.1

8.1

9.1

10.1

11.1

12.1

13.1

14.1

15.1

18.1

23.1

28.1

E

10.1

11.1

12.1

13.1

14.1

15.1

16.1

17.1

18.1

21.1

26.1

31.1

Spec. Spec.

(22) (59)

K

_

K

_

K

Remarks

9

8.3

3

4

DF9- 9S-1V (**)

540-0054-0-**

11

9.3

4

5

DF9-11S-1V (**)

540-0055-2-**

13

10.3

5

6

DF9-13S-1V (**)

540-0056-5-**

15

11.3

6

7

DF9-15S-1V (**)

540-0057-8-**

17

12.3

7

8

DF9-17S-1V (**)

540-0058-0-**

19

13.3

8

9

DF9-19S-1V (**)

540-0059-3-**

21

14.3

9

10

DF9-21S-1V (**)

540-0060-2-**

23

15.3 10

11

DF9-23S-1V (**)

540-0061-5-**

25

16.3 11

12

DF9-25S-1V (**)

540-0062-8-**

31

19.3 14

15

DF9-31S-1V (**)

540-0063-0-**

41

24.3 19

20

DF9-41S-1V (**)

540-0213-1-**

51

29.3 24

25

DF9-51S-1V (**)

540-0064-3-**

Note 1 : Please order the embossed tape packaging product per reel. (1000 pcs. per reel)

Note 2 :

_ are not available. Regarding blank, please contact Hirose sales representative.

With metal fitting

With boss

With pick and place tape

sReceptacle

Without metal fitting

With boss

[Specific No.] _ **, (**)

(22): Tin plated, tube packaging

(59): Gold plated, embossed tape packaging

Unit: mm

Part Number

CL No.

Number of Contacts

A

B

C

4

5

6

7

8

9

10

11

12

15

20

25

D

7.1

8.1

9.1

10.1

11.1

12.1

13.1

14.1

15.1

18.1

23.1

28.1

E

_

Spec. Spec.

(22) (59)

K

_

K

_

K

_

K

_

K

_

K

Remarks

9

8.3

3

DF9A-09S-1V (**)

540-0004-1-**

11

9.3

4

DF9A-11S-1V (**)

540-0005-4-**

13

10.3

5

DF9A-13S-1V (**)

540-0006-7-**

15

11.3

6

DF9A-15S-1V

(**)

540-0007-0-**

17

12.3

7

DF9A-17S-1V

(**)

540-0008-2-**

19

13.3

8

DF9A-19S-1V

(**)

540-0009-5-**

21

14.3

9

DF9A-21S-1V

(**)

540-0010-4-**

23

15.3 10

DF9A-23S-1V

(**)

540-0011-7-**

25

16.3 11

DF9A-25S-1V

(**)

540-0012-0-**

31

19.3 14

DF9A-31S-1V

(**)

540-0013-2-**

41

24.3 19

DF9A-41S-1V

(**)

540-0222-2-**

51

29.3 24

DF9A-51S-1V

(**)

540-0014-5-**

Note 1 : Please order the emboss packaging product per reel. (1000 pcs. per reel)

Note 2 :

_ are not available. Regarding blank, please contact Hirose sales representative.

Without metal fitting

With boss

With pick and place tape

A280

DF9A-09S-1V(22) Related Products

	DF9A-09S-1V(22)	DF9-09S-1V(22)	DF9-09S-1V(59)	DF9A-41S-1V(59)	DF9A-19S-1V(59)
Description	Board Connector, 9 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,	Board Connector, 9 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,	Board Connector, 9 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,	Board Connector, 41 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle	Board Connector, 19 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle,
Maker	Hirose	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	DF9	DF9	DF9	DF9	DF9
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	9	9	9	41	19
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
