7501-1562-010: DescriptionRF Connector, Female, Cable Mount, Solder Terminal; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

7501-1562-010 Overview

RF Connector, Female, Cable Mount, Solder Terminal

7501-1562-010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.76 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	40 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.35

Preview

Download Datasheet

View All

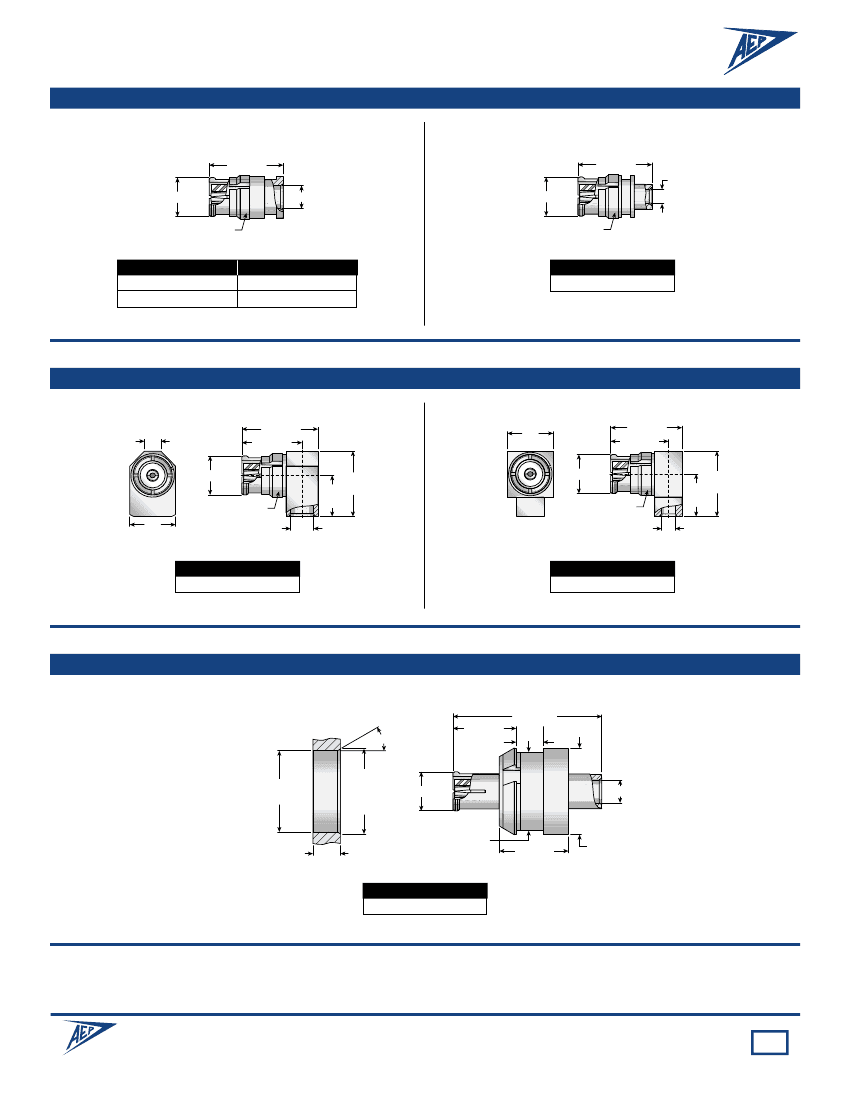

SMP Cable Connectors

Straight Female Cable Connectors

(Direct Solder for Semi-Rigid Cable)

For .086" semi-rigid cable

.250 (6.4)

ø.131 (3.3)

~

For .047" semi-rigid cable

.250 (6.4)

ø.050 (1.3)

ø.089 (2.3)

ø.131 (3.3)

~

EMI/anti-rock ring

TYPE

Standard

High Frequency

AEP P/N

7500-1562-010

7500-1262-010

AEP P/N

7500-1582-011

Body material: Beryllium copper

Right Angle Female Cable Connectors

(Direct Solder for Semi-Rigid Cable)

For .086" semi-rigid cable

.056 (1.4)

ø.131 (3.3)

~

For .047" semi-rigid cable

.156

(4.0)

.241 (6.1)

.193 (4.9)

ø.131 (3.3)

~

.265 (6.7)

.210 (5.3)

.222

.142 (5.6)

(3.6)

EMI/anti-rock ring

.156

(4.0)

ø.089 (2.3)

EMI/anti-rock ring

ø.050 (1.3)

.222

.145 (5.6)

(3.7)

AEP P/N

7501-1562-010

AEP P/N

7501-1562-011

Body material: Beryllium copper

Straight Female Cable Connector

(Direct Solder for Semi-Rigid Cable)

For .086" semi-rigid cable—Snap-In panel mounting (ﬂoat Mount)

Panel

Drilling

.500 (12.7)

30˚

ø.283

+.002

-.001

.220 (5.6)

.093 (2.4)

panel

ø.272

±.001

(6.91

±.03)

(

7.19

+.05

)

-.03

ø.131 (3.3)

ø.089 (2.3)

ø.093

±.002

(2.36

±.05)

ø.268 (6.8)

.234 (5.9)

ø.292 (7.4)

AEP P/N

7504-2282-010

Body material: Beryllium copper

Cable assembly instructions are shipped with each connector.

APPLIED ENGINEERING PRODUCTS

(203) 776-2813 • FAX (203) 776-8294 •

www.aep.us

7

7501-1562-010 Related Products

	7501-1562-010	7500-1562-010	7500-1582-011	7504-2282-010
Description	RF Connector, Female, Cable Mount, Solder Terminal	RF Connector, Female, Cable Mount, Solder Terminal	RF Connector, Female, Cable Mount, Solder Terminal	RF Connector, Female, Panel Mount, Cable Mount, Solder Terminal
Maker	Radiall	Radiall	Radiall	Radiall
Reach Compliance Code	compliant	unknown	unknown	compliant
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	Gold (Au)	GOLD	GOLD	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.76 dB	0.76 dB	0.76 dB	0.76 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	40 GHz	40 GHz	40 GHz	40 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.35	1.35	1.35	1.35
