M4805HD1: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 1W, DIP-14/5; CategoryPower/power management The power supply circuit; File Size43KB，3 Pages; ManufacturerSangdest Microelectronics (Nanjing) Co., Ltd.

Download Datasheet Parametric Compare View All

M4805HD1 Overview

DC-DC Regulated Power Supply Module, 1 Output, 1W, DIP-14/5

M4805HD1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Sangdest Microelectronics (Nanjing) Co., Ltd.
package instruction	DIP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	50.4 V
Minimum input voltage	45.6 V
Nominal input voltage	48 V
JESD-30 code	R-XDIP-T5

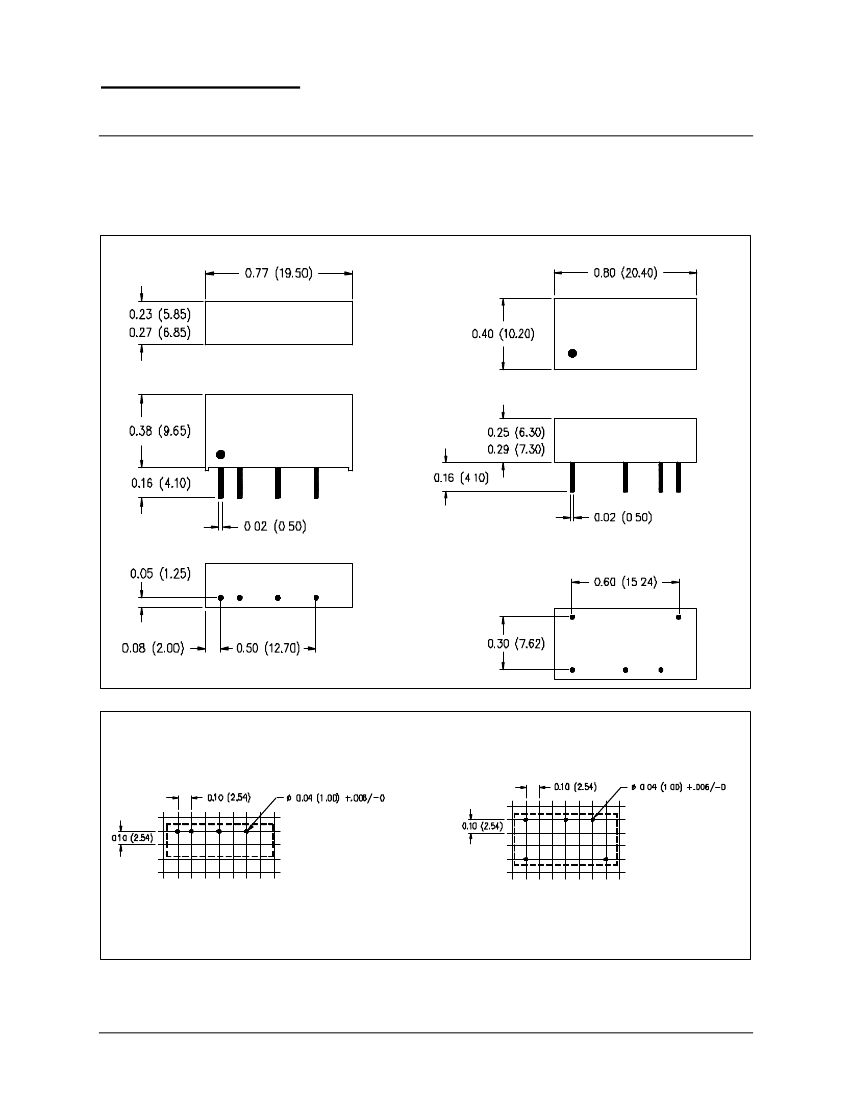

length	20.4 mm
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.15 V
Minimum output voltage	4.85 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	7.3 mm
surface mount	NO
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
width	7.62 mm

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

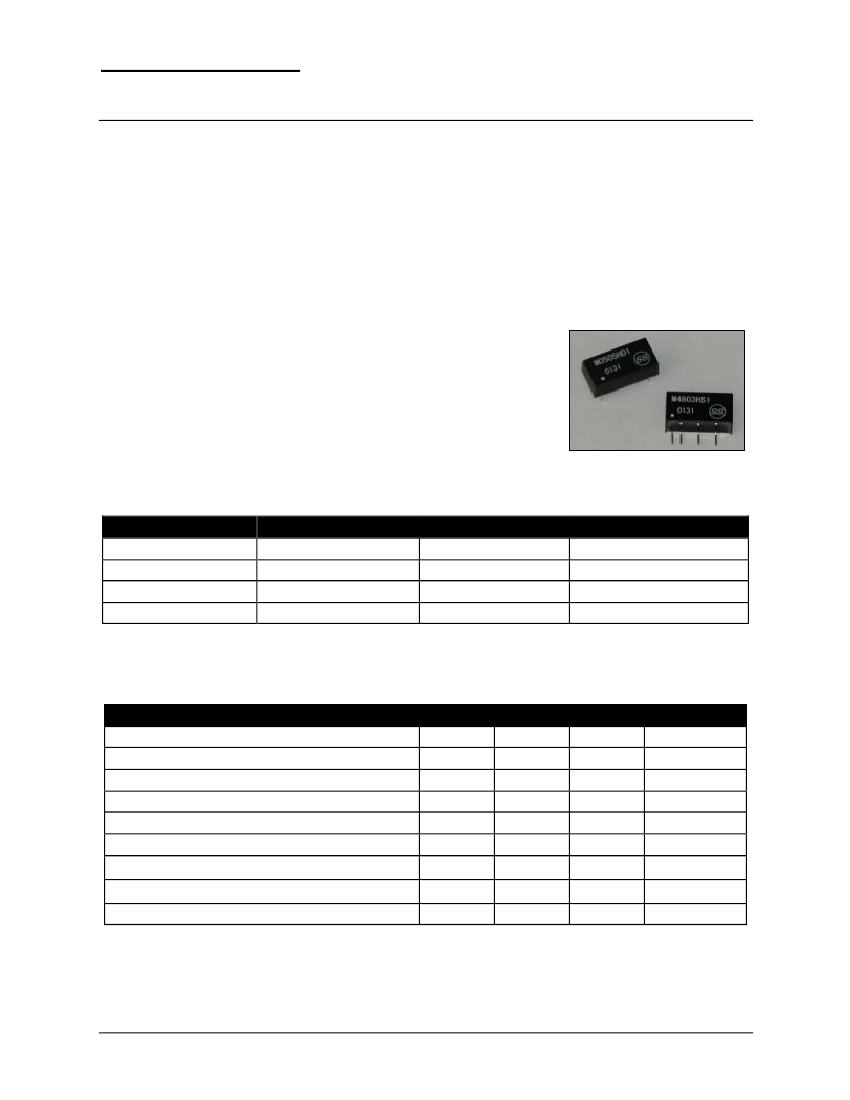

TECHNICAL DATA

DATA SHEET 1105, REV. -

M(R) - 1W Series

DC-DC Converters

Fixed Input, 1000V Isolation, Regulated, Single Output

FEATURES:

•

Isolation Voltage:

Isolation Resistance (1):

Short-Circuit Duration:

Case Temperature Rise:

Cooling Method:

Standby Power Dissipation:

Operating Temp.:

Storage Temp.:

Humidity:

Soldering Temp. (2):

Case Material:

Mean Time Before Failure:

1000Vdc

1000MΩ

1 second

Max. 25°C, Typ. 15°C

Free-Air Cooling

1W (100mW), 2W (200mW)

-40°C ~ + 85°C

-55°C ~ + 125°C

≤

95%

300°C

Non-Flammable Material (UL94-V0)

> 1,000,000 hours (Operating Temp. 25°C)

M(R) Single Output-1W Series Input Characteristics

Part Number

M05XXHS/D1

M12XXHS/D1

M24XXHS/D1

Nominal Input Voltage

5Vdc

12Vdc

24Vdc

Input Voltage Range

4.75~5.25Vdc

11.4~12.6Vdc

22.8~25.2Vdc

Maximum Input Voltage*

5.5Vdc

13.2Vdc

26.4Vdc

52.8Vdc

M48XXHS/D1

48Vdc

45.6~50.4Vdc

*

Voltage above this value may cause permanent damage to the device.

M(R) Single Output-1W Series Output Characteristics

Parameter

1W Output Power

Line Regulation

Load Regulation

Output Voltage Accuracy

Efficiency at 100% Load

Temperature Coefficient

1W Ripple

1W Noise

Switching Frequency

1.

2.

80

5

50

100

55

60

MIN

TYP

MAX

1

0.25

1

±3

70

0.03

10

100

150

Units

W

%

%/°C

mVp-p

kHz

All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise

specified.

Soldering for 10 seconds at 1.5mm away from the edge.

•

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone (631) 586-7600

•

Fax (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
