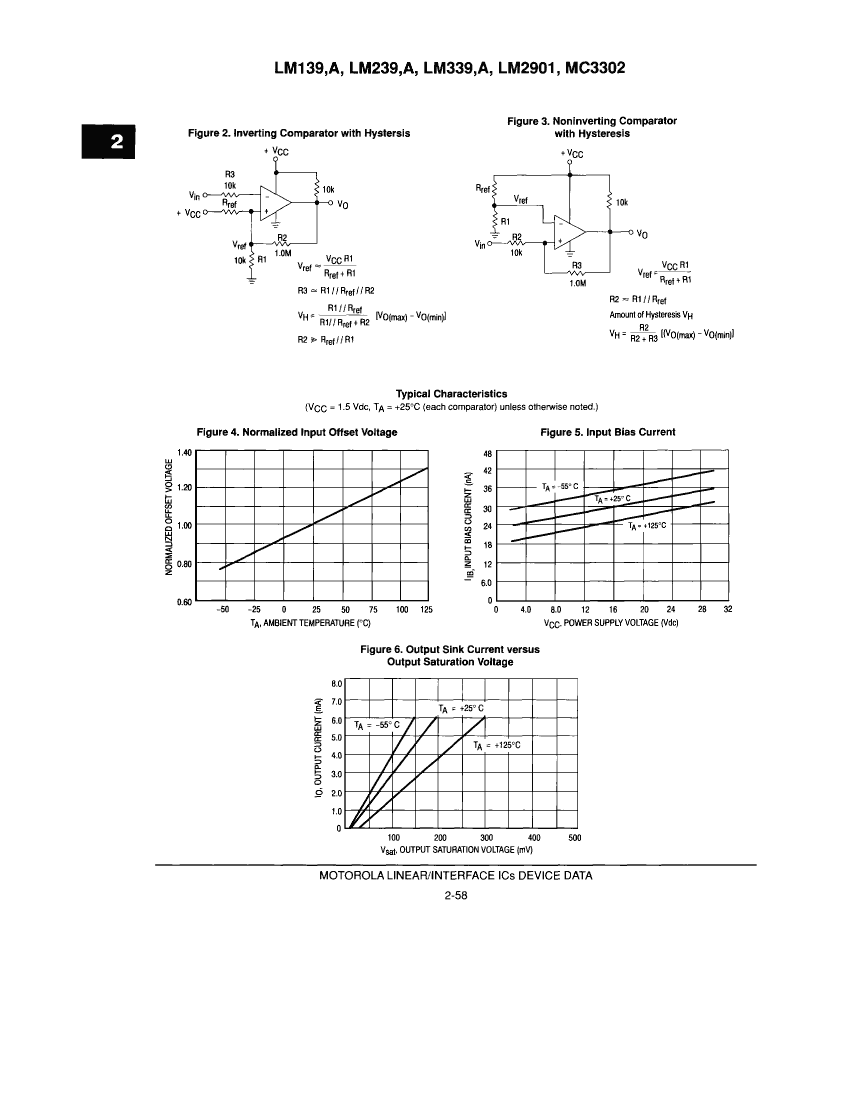

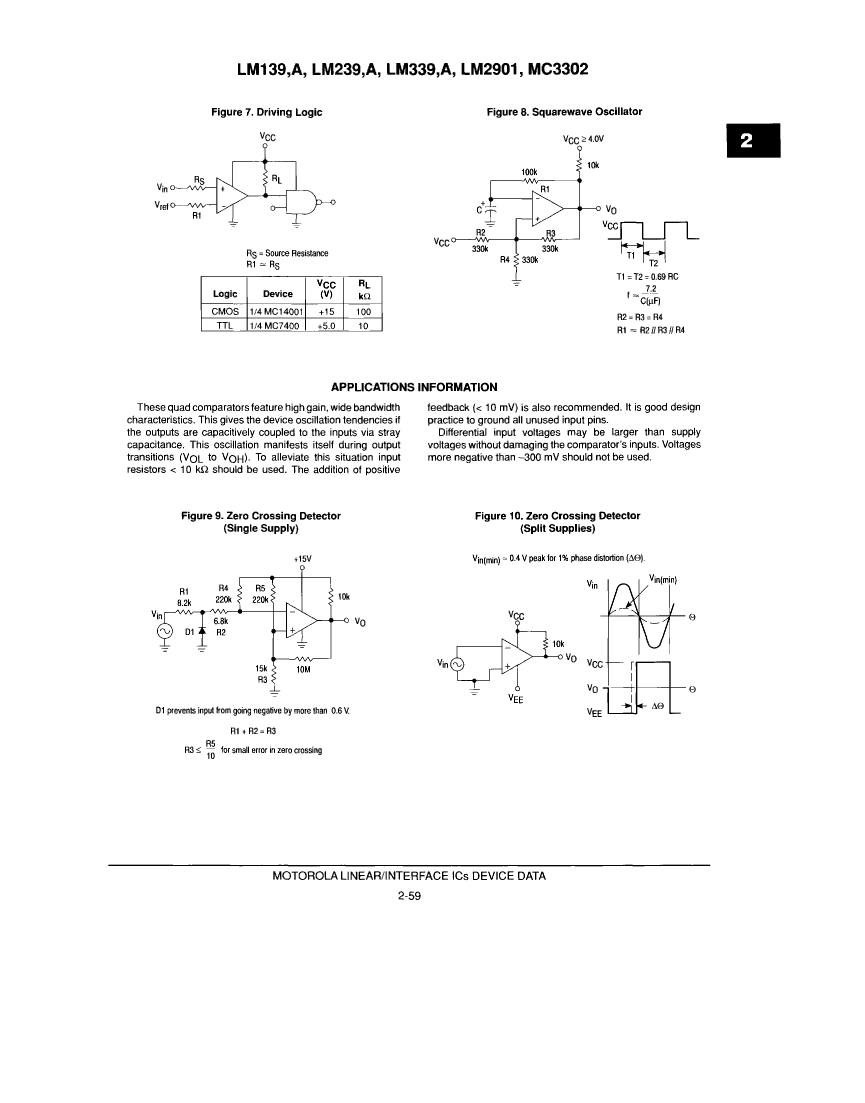

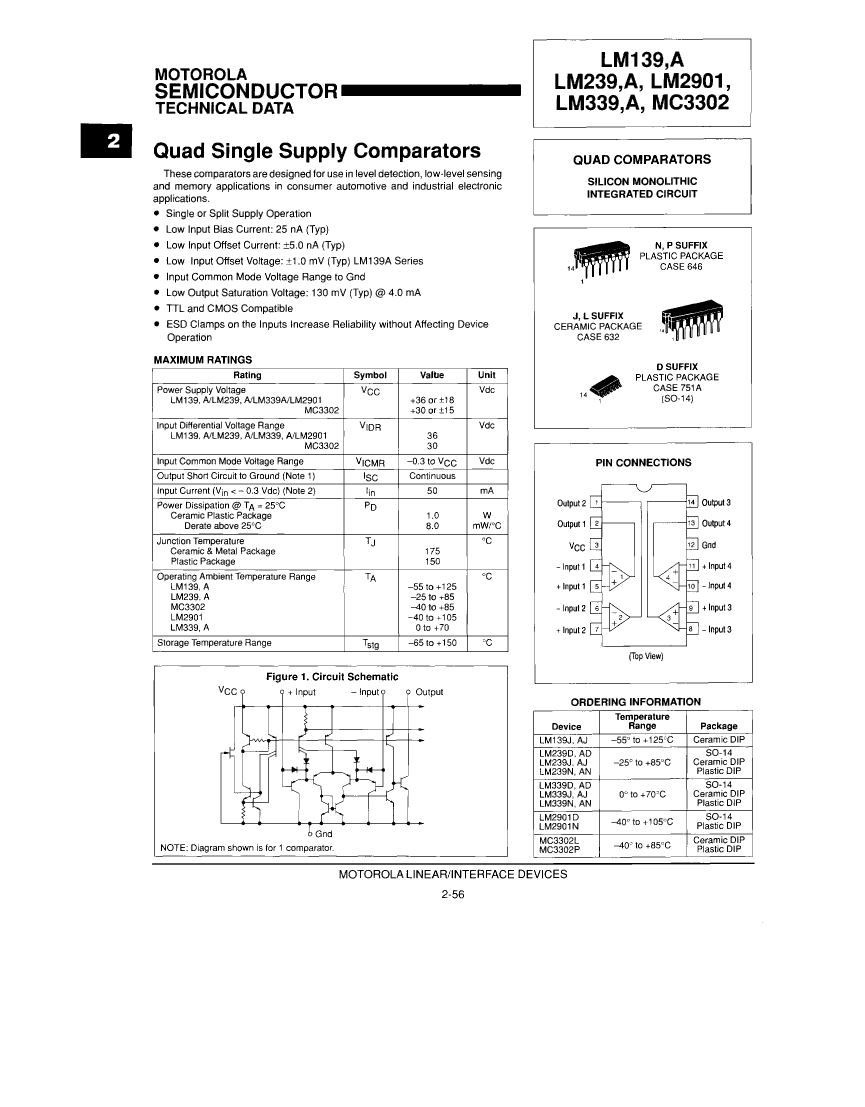

QUAD COMPARATOR, 5000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14

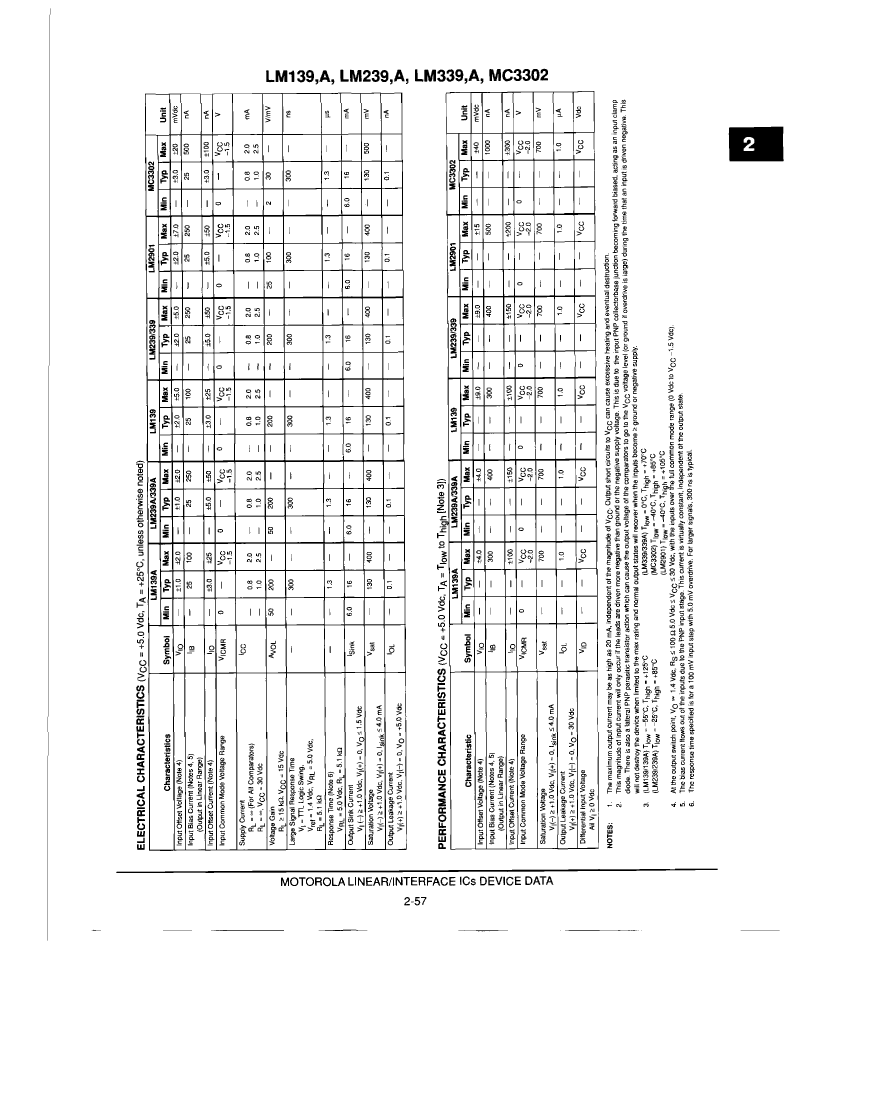

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | COMPARATOR |
| Maximum average bias current (IIB) | 0.25 µA |
| Maximum input offset voltage | 5000 µV |
| JESD-30 code | R-GDIP-T14 |
| JESD-609 code | e0 |
| length | 19.495 mm |
| Negative supply voltage upper limit | -18 V |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal response time | 1300 ns |
| Maximum seat height | 5.08 mm |
| Maximum slew rate | 2 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| LM339J | LM139J | LM239J | LM139AJ | LM339AJ | LM239AJ | MC3302L | |
|---|---|---|---|---|---|---|---|
| Description | QUAD COMPARATOR, 5000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14 | QUAD COMPARATOR, 5000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14 | QUAD COMPARATOR, 5000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14 | QUAD COMPARATOR, 2000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14 | QUAD COMPARATOR, 2000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14 | QUAD COMPARATOR, 2000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14 | QUAD COMPARATOR, 20000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Contacts | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR |
| Maximum average bias current (IIB) | 0.25 µA | 0.1 µA | 0.25 µA | 0.1 µA | 0.25 µA | 0.25 µA | 0.5 µA |
| Maximum input offset voltage | 5000 µV | 5000 µV | 5000 µV | 2000 µV | 2000 µV | 2000 µV | 20000 µV |
| JESD-30 code | R-GDIP-T14 | R-GDIP-T14 | R-GDIP-T14 | R-GDIP-T14 | R-GDIP-T14 | R-GDIP-T14 | R-GDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 19.495 mm | 19.495 mm | 19.495 mm | 19.495 mm | 19.495 mm | 19.495 mm | 19.495 mm |
| Negative supply voltage upper limit | -18 V | -18 V | -18 V | -18 V | -18 V | -18 V | -15 V |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 70 °C | 125 °C | 85 °C | 125 °C | 70 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -55 °C | -25 °C | -55 °C | - | -25 °C | -40 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal response time | 1300 ns | 1300 ns | 1300 ns | 1300 ns | 1300 ns | 1300 ns | 1300 ns |
| Maximum seat height | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm |
| Maximum slew rate | 2 mA | 2 mA | 2 mA | 2 mA | 2 mA | 2 mA | 2 mA |
| Supply voltage upper limit | 18 V | 18 V | 18 V | 18 V | 18 V | 18 V | 15 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | MILITARY | OTHER | MILITARY | COMMERCIAL | OTHER | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | - |
| Part Number | Manufacturer | Description |
|---|---|---|
| LM139J/NOPB | Rochester Electronics | QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14 |
| LM139AJ/NOPB | Texas Instruments(德州仪器) | QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14 |
| KA339 | SAMSUNG(三星) | Comparator, 4 Func, 9000uV Offset-Max, 1400ns Response Time, BIPolar, PDIP14, DIP-14 |
| LM139J/883B | Raytheon Company | Comparator, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14, |
| LP339N/NOPB | Rochester Electronics | Comparator, 4 Func, 9000uV Offset-Max, 8000ns Response Time, BIPolar, PDIP14, DIP-14 |
| LP339N | National Semiconductor（TI ） | QUAD COMPARATOR, 9000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PDIP14 |
| LM139J | Renesas(瑞萨电子) | COMPARATOR |
| LM139AJRQMLV | National Semiconductor（TI ） | IC QUAD COMPARATOR, 2000 uV OFFSET-MAX, 1000 ns RESPONSE TIME, CDIP14, CERDIP-14, Comparator |
| LM139J/883 | Raytheon Company | Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14, CERAMIC, DIP-14 |
| LM139AJ/883 | National Semiconductor（TI ） | QUAD COMPARATOR, 2000 uV OFFSET-MAX, 1000 ns RESPONSE TIME, CDIP14 |
| LM339J | Motorola ( NXP ) | QUAD COMPARATOR, 5000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14 |
| HA17339AP | Hitachi （Renesas ） | Comparator, 4 Func, 7000uV Offset-Max, 1300ns Response Time, BIPolar, PDIP14, DP-14 |
| LM239DB | AMD(超微) | Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 |
| HA17339 | Hitachi （Renesas ） | QUAD COMPARATOR, 7000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PDIP14 |
| LM239N | Philips Semiconductors (NXP Semiconductors N.V.) | IC,VOLT COMPARATOR,QUAD,BIPOLAR,DIP,14PIN,PLASTIC |
