52124R-LF1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> 52124R-LF1

Preview

52124R-LF1: DescriptionDatacom Transformer, ISDN Application(s), 1CT:1CT, ROHS COMPLIANT; CategoryPower management transformer; File Size71KB，1 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

52124R-LF1 Overview

Datacom Transformer, ISDN Application(s), 1CT:1CT, ROHS COMPLIANT

52124R-LF1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMMON MODE CHOKE AVAILABLE, HEIGHT DIM INCLUDES TERMINALS ALSO
application	ISDN
high	8.89 mm
Insulation voltage	2000 V
length	24 mm
Manufacturer's serial number	52124R
Installation features	SURFACE MOUNT
Number of functions	2
physical size	L24.0XB12.5XH8.89 (mm)
Primary inductance	30000 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT
width	12.5 mm

Preview

Download Datasheet

View All

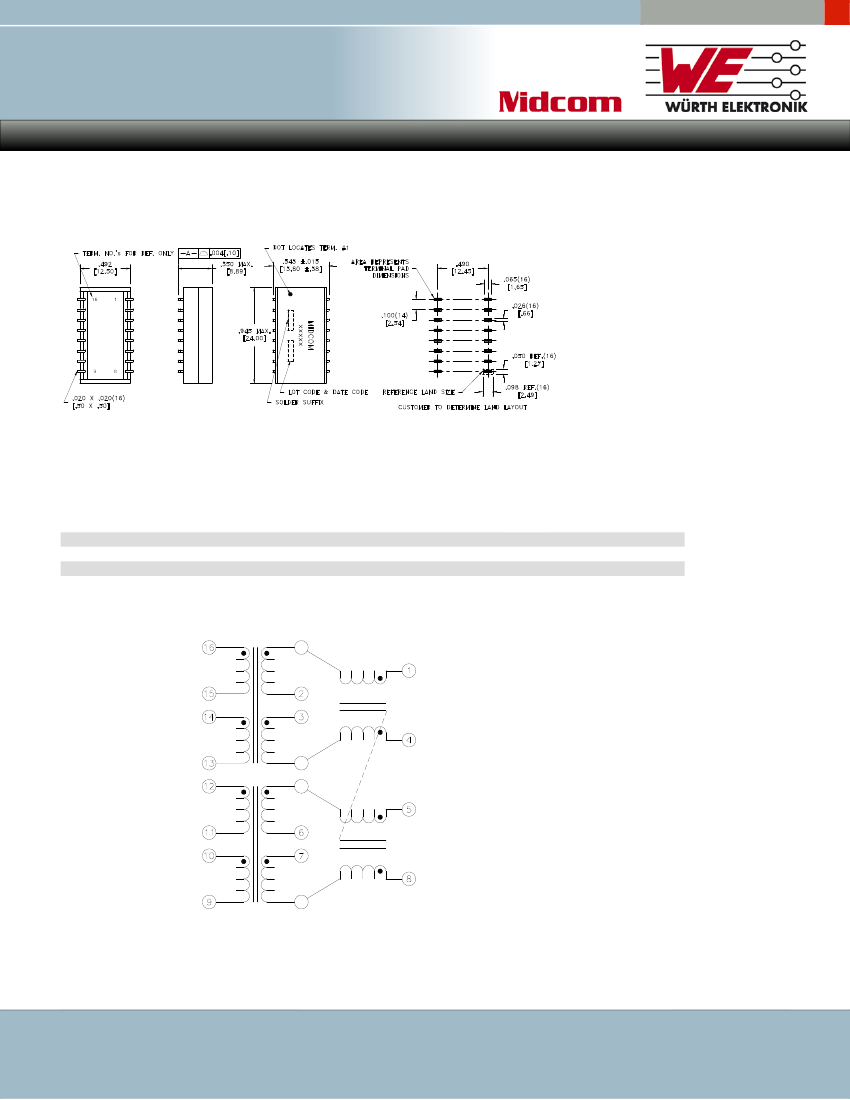

more than you expect

ISDN-S Dual Transformers

With Common Mode Chokes

DigitalTelecom

Features

•

RoHS compliant versions avail-

able

•

Includes Common Mode Choke

•

Small Size

•

Optional pin-outs and turns ratio

•

Excellent longitudinal balance

•

Matched to IC manufacturers’

transceivers

Turns Ratio

Part Number (PRI:SEC)

51935R

1CT:1CT

51936R

1CT:2.5CT

52124R

1CT:1CT

LPRI @20°C Leakage L

(mH Min)

(µH Max)

DCR PRI

(ohms Max)

DCR SEC

(ohms Max)

Cww

(pF Max)

Dielectric

(1 minute)

25

175

30

5.0

3.0

5.0

2.9

4.2

3.6

1.8

2.7

2.5

100

1500VDC

2000VAC

Schematic

1

SEC

(Device)

PRI

(Line)

SEC

(Device)

PRI

(Line)

Wurth Electronics Midcom, Inc.

121 Airport Drive—PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ 605.886.4486

www.we-online.com ~ email: sales@midcom-inc.com

27-Jun-07

1/1

52124R-LF1 Related Products

	52124R-LF1	52124R
Description	Datacom Transformer, ISDN Application(s), 1CT:1CT, ROHS COMPLIANT	Datacom Transformer, ISDN Application(s), 1CT:1CT
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	Wurth Elektronik	Wurth Elektronik
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	COMMON MODE CHOKE AVAILABLE, HEIGHT DIM INCLUDES TERMINALS ALSO	COMMON MODE CHOKE AVAILABLE, HEIGHT DIM INCLUDES TERMINALS ALSO
application	ISDN	ISDN
high	8.89 mm	8.89 mm
Insulation voltage	2000 V	2000 V
length	24 mm	24 mm
Manufacturer's serial number	52124R	52124R
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2
physical size	L24.0XB12.5XH8.89 (mm)	24.0mm X 12.5mm X 8.89mm
Primary inductance	30000 µH	30000 µH
surface mount	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT	1CT:1CT
width	12.5 mm	12.5 mm
