HM2P07PKE2MCGCLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P07PKE2MCGCLF

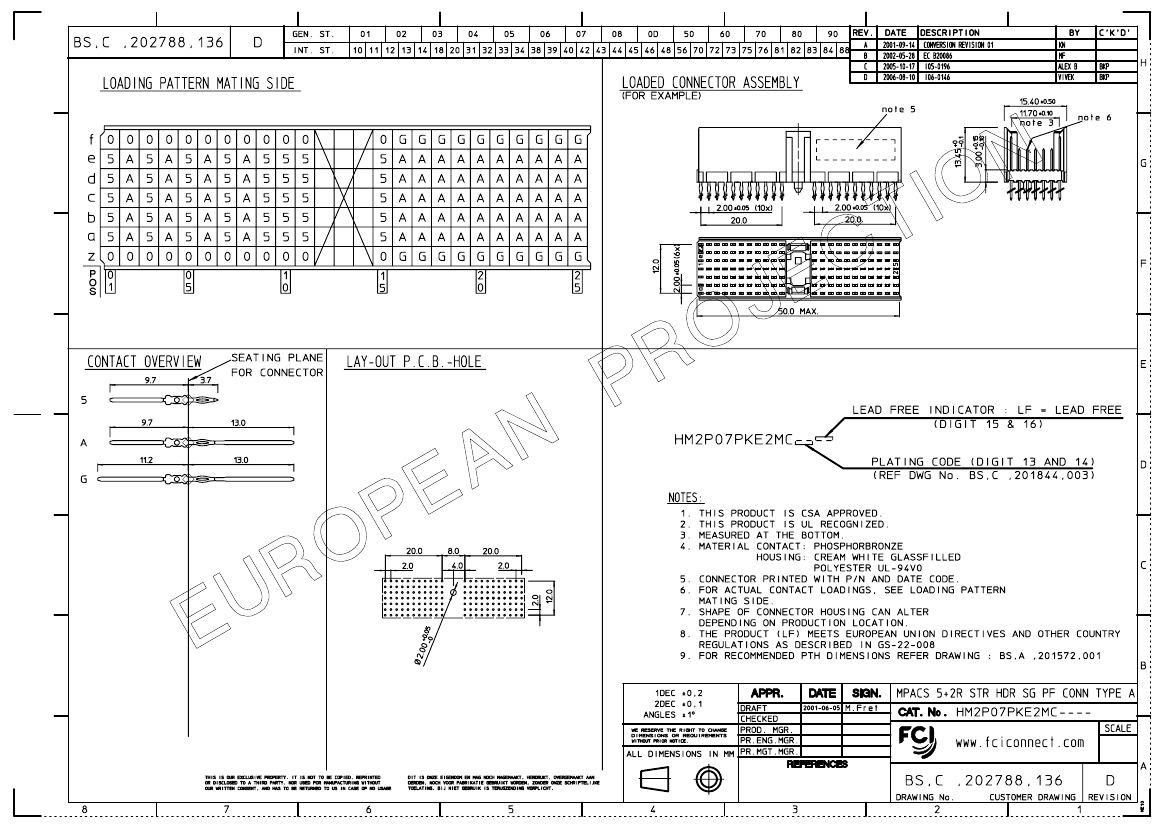

HM2P07PKE2MCGCLF: DescriptionBoard Connector, 130 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P07PKE2MCGCLF Overview

Board Connector, 130 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P07PKE2MCGCLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	20 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (16) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	130
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 03, 2007

HM2P07PKE2MCGCLF Related Products

	HM2P07PKE2MCGCLF	HM2P07PKE2MCGF	HM2P07PKE2MCGLLF	0734152865	HM2P07PKE2MCGC	HM2P07PKE2MCGFLF
Description	Board Connector, 130 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 130 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 130 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	RF SMB Connector, 1 Contact(s), Board Mount, Solder Terminal, Locking, Jack	Board Connector, 130 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 130 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	RF SMB CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	SOLDER	PRESS FIT	PRESS FIT
Total number of contacts	130	130	130	1	130	130
Maker	Amphenol	Amphenol	Amphenol	-	Amphenol	Amphenol
Other features	20 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	20 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	20 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	-	20 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	20 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Contact completed and terminated	GOLD (16) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (39) OVER NICKEL	-	GOLD (16) OVER NICKEL	-
Contact point gender	MALE	MALE	MALE	-	MALE	MALE
DIN compliance	NO	NO	NO	-	NO	NO
Filter function	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	-	NO	NO
JESD-609 code	e4	e4	e4	-	e4	-
MIL compliance	NO	NO	NO	-	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	-	HM2	-
Mixed contacts	NO	NO	NO	-	NO	NO
Number of rows loaded	7	7	7	-	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	-	2 mm	2 mm
UL Flammability Code	94V-0	94V-0	94V-0	-	94V-0	94V-0
