PAL16RP8ACNLSTD datasheet, PDF

PAL16RP8ACNLSTD: DescriptionOT PLD, 20ns, TTL, PQCC20, 0.351 X 0.351 INCH, PLASTIC, LCC-20; CategoryProgrammable logic devices Programmable logic; File Size280KB，9 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

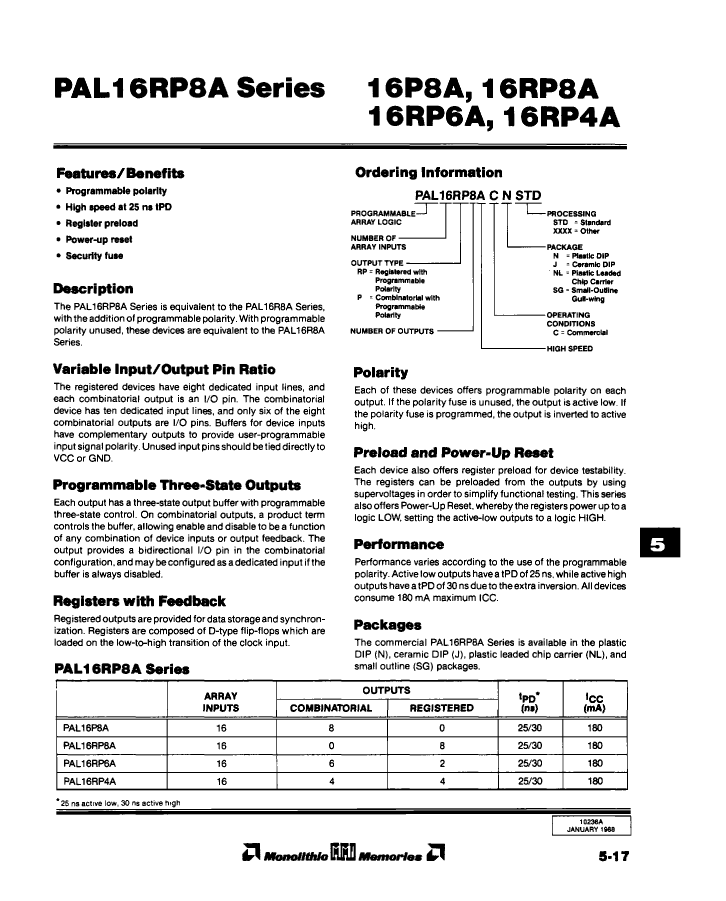

PAL16RP8ACNLSTD Overview

OT PLD, 20ns, TTL, PQCC20, 0.351 X 0.351 INCH, PLASTIC, LCC-20

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	QLCC
package instruction	QCCJ,

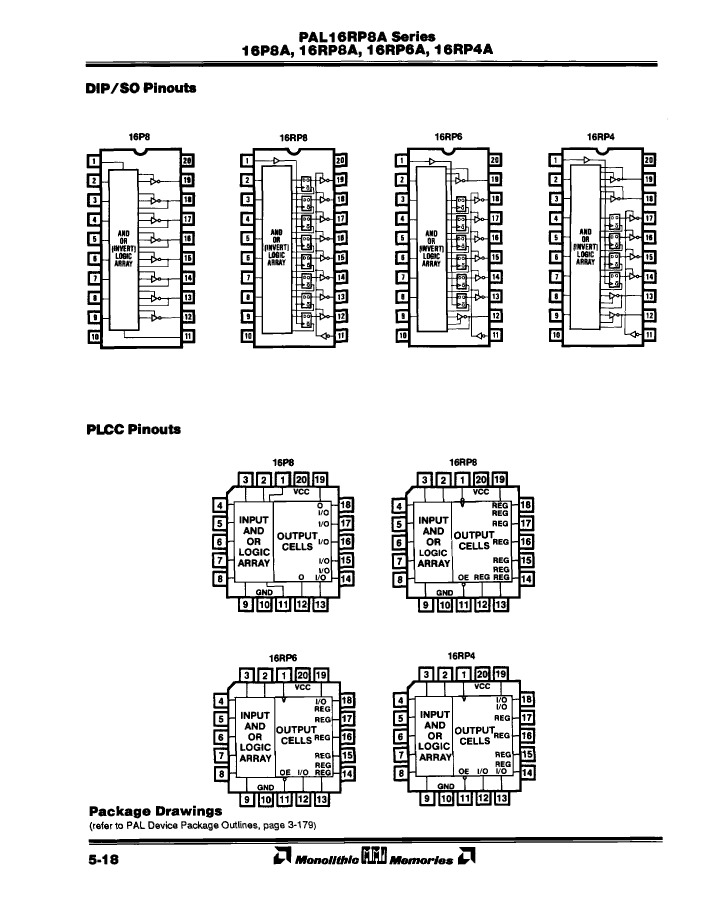

Contacts	20
Reach Compliance Code	unknown

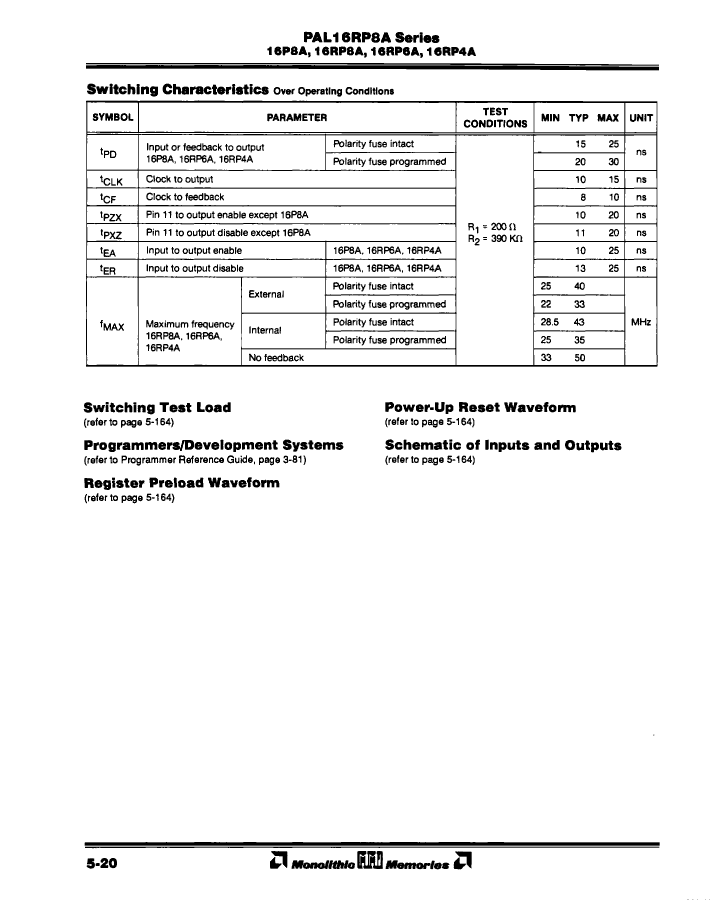

maximum clock frequency	22 MHz
JESD-30 code	S-PQCC-J20
length	8.9662 mm
Dedicated input times	8
Number of I/O lines
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature
organize	8 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD

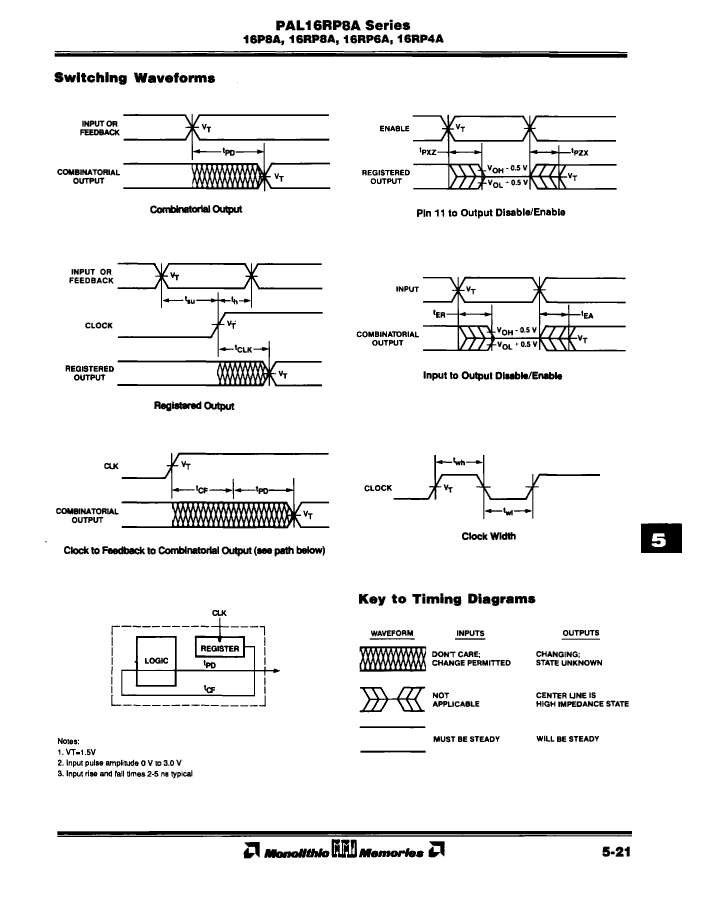

propagation delay	20 ns
Certification status	Not Qualified
Maximum seat height	4.369 mm

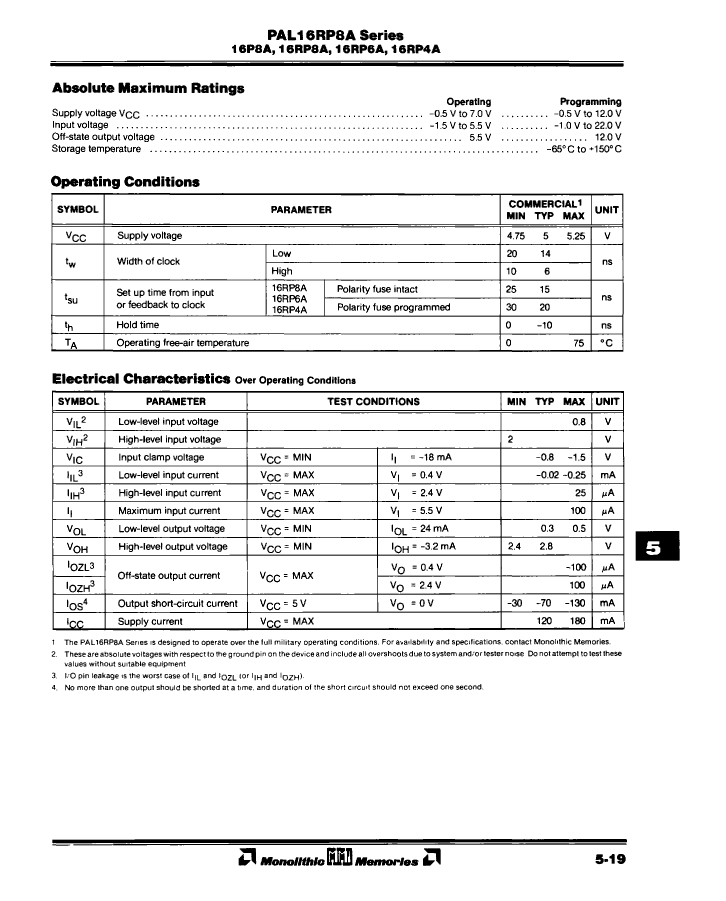

Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.9662 mm
