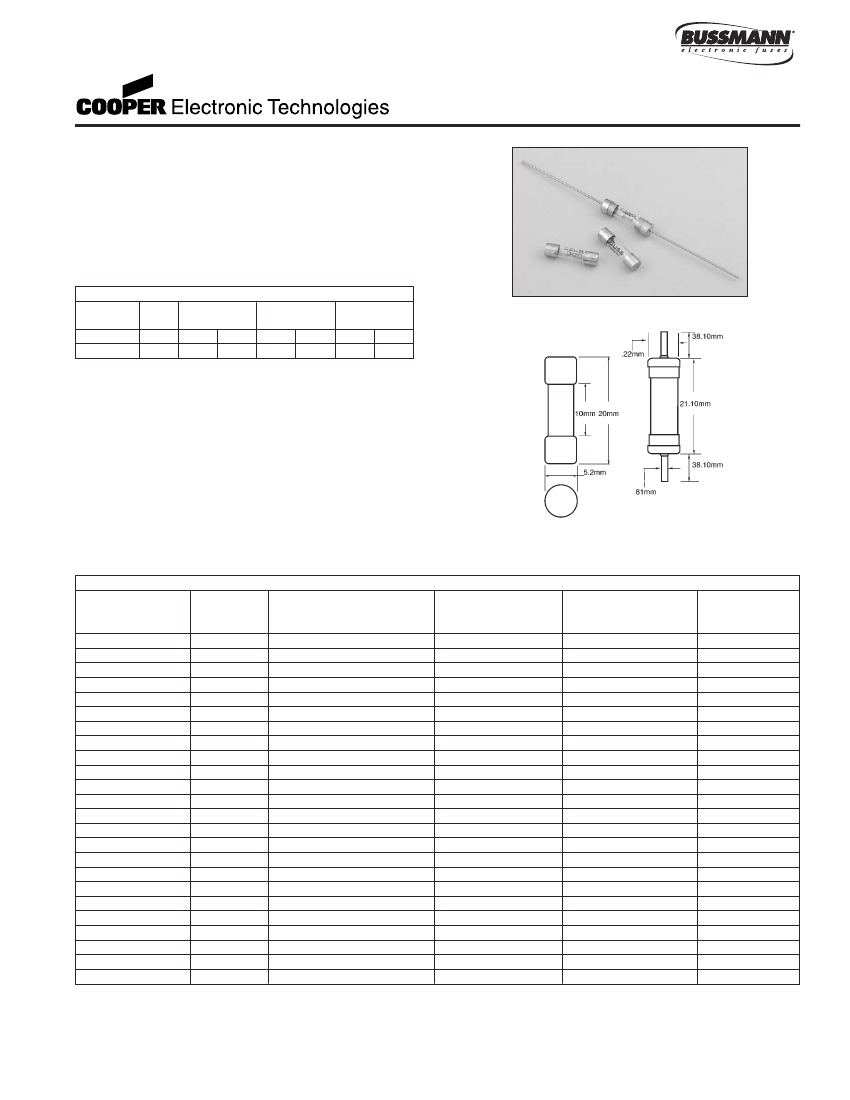

5mm x 20mm Fuses
GDC Series, Time Delay, Glass Tube
Description
• Time delay, low breaking capacity
• 5mm x 20mm physical size
• Glass tube, nickel-plated brass endcap construction
• Optional axial leads are .032" x 1.5" copper tinned
• Optional sleeve is flexible flouropolymer
(U.L. flammability rating VW-1).
• Designed to IEC 60127-2-3
GDC ELECTRICAL CHARACTERISTICS
2.1 In
2.75 In
4 In
10 In
In
max
min
max
min
max
min
max
32mA-100mA 2 min 200 ms 10 sec 40 ms 3 sec 10 ms 300 ms
125mA-6.3A 2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms
Dimensions
Drawing Not to Scale
Ordering
• Specify product code, option code and packaging code
Approvals
• UL Recognized Card: 32mA-6.3A (JDYX2, E75865)
• Semko Approval, 32mA-6.3A
• VDE Approval, 32mA-5A
• BSI Approval, 32mA-6.3A
• IMQ Approval, 32mA-6.3A
• MITI Approval, 1A-6.3A
SPECIFICATIONS
Product Code
GDC-32mA
GDC-40mA
GDC-50mA
GDC-63mA
GDC-80mA
GDC-100mA
GDC-125mA
GDC-160mA
GDC-200mA
GDC-250mA
GDC-315mA
GDC-400mA
GDC-500mA
GDC-630mA
GDC-800mA
GDC-1A
GDC-1.25A
GDC-1.6A
GDC-2A
GDC-2.5A
GDC-3.15A
GDC-4A
GDC-5A
GDC-6.3A
Voltage
Rating
AC
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
Interrupting Rating
at Rated Voltage (50Hz)
AC/DC
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
Typical DC
Cold Resistance
(ohms)*
21.7
14.2
9.5
7.1
4.5
2.8
2.0
1.3
1.0
0.66
0.46
0.37
0.268
0.191
0.131
0.064
0.046
0.039
0.029
0.024
0.18
0.13
0.010
0.009
Typical
Melting I
2
t (A
2
Sec)
AC†
0.0014
0.0034
0.006
0.012
0.015
0.022
0.034
0.052
0.078
0.17
0.41
0.61
0.75
1.3
3.1
3.6
7
10
17
34
56
91
133
270
Typical
Voltage
Drop (mV)‡
1050
920
800
760
580
490
390
320
340
270
250
210
180
160
140
80
75
75
75
75
70
70
65
65
* DC Cold Resistance (Measured at <10% of rated current)
† Typical Melting I
2
t (I
2
t was measured at listed interrupting rating and rated voltage)
‡ Maximum Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)
5mm x 20mm Fuses
GDC Series, Time Delay, Glass Tube

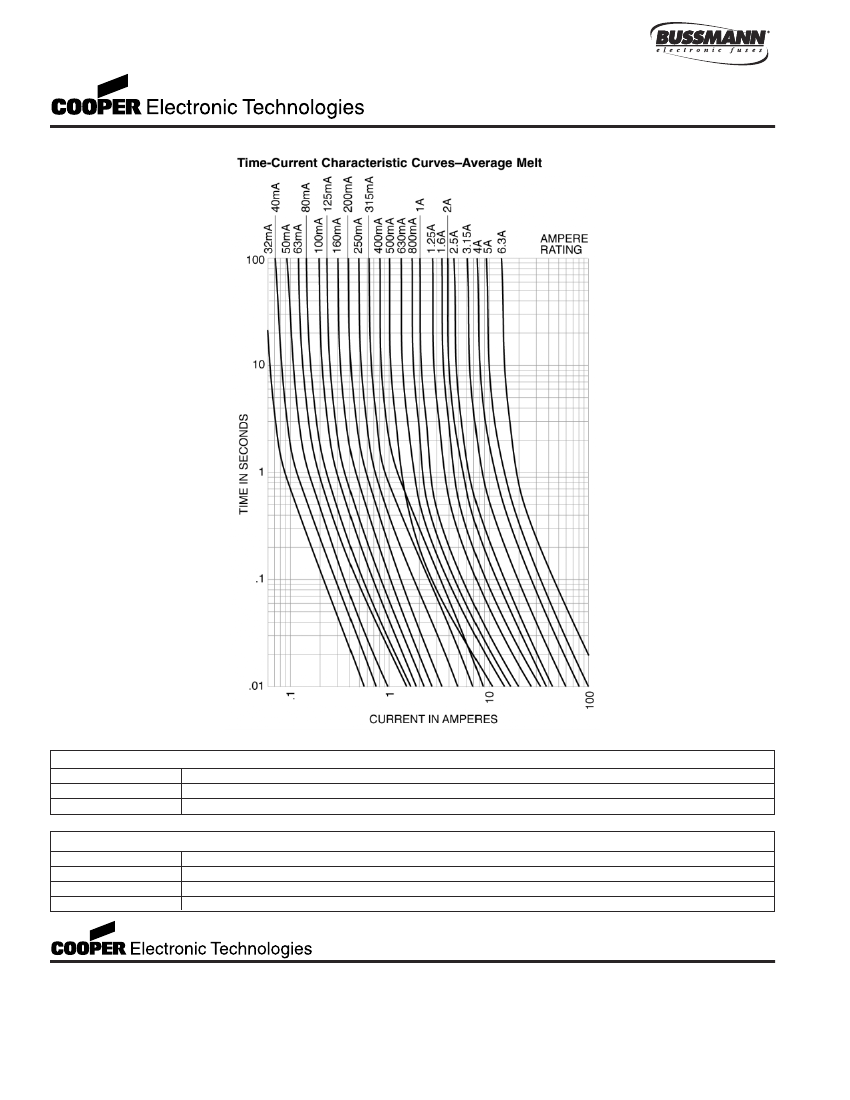

TIME CURRENT CURVE
OPTION CODE
Option Code
S
V
Description
Sealed with a flouropolmer sleeve to withstand aqueous cleaning
Axial leads - copper tinned wire with nickel plated brass overcaps
PACKAGING CODE
Packaging Code
BK
BK1
TR2
Description
100 pieces of fuses packed into a cardboard carton with flaps folded
1,000 pieces of fuses packed into a poly bag
1,500 pieces of fuses packed into tape on a reel
OC-2570 7/01
© Cooper Electronic
Technologies 2001
Visit us on the Web at www.cooperET.com
3601 Quantum Boulevard Boynton Beach, Florida 33426-8638
Tel: +1-561-752-5000 Toll Free: +1-888-414-2645 Fax: +1-561-742-1178
This bulletin is intended to present product design solutions and technical information that will help the end user with design applications. Cooper
Electronic Technologies reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of
any products. Cooper Electronic Technologies also reserves the right to change or update, without notice, any technical information contained in this
bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
