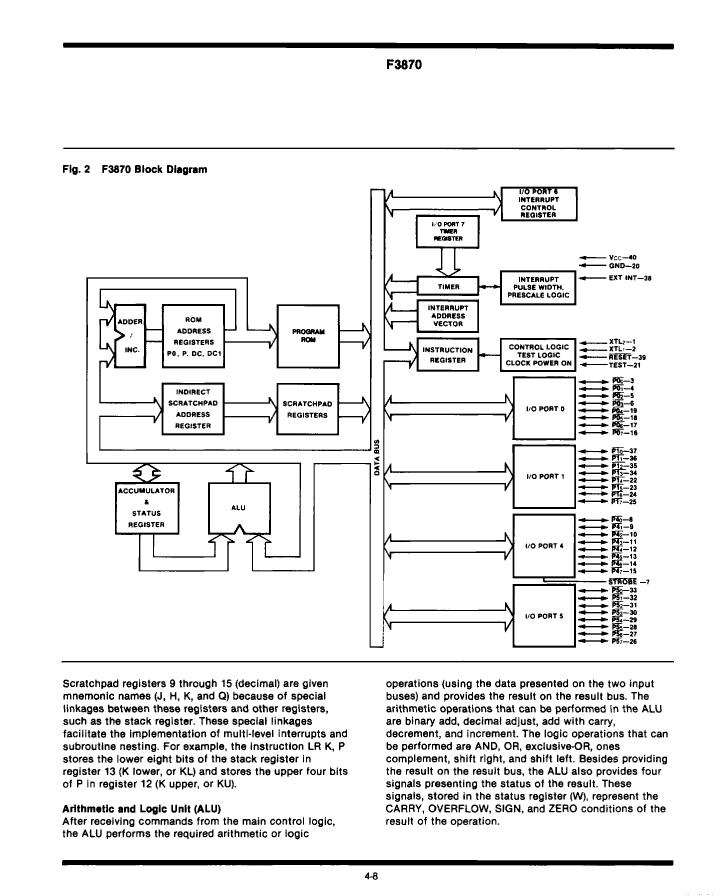

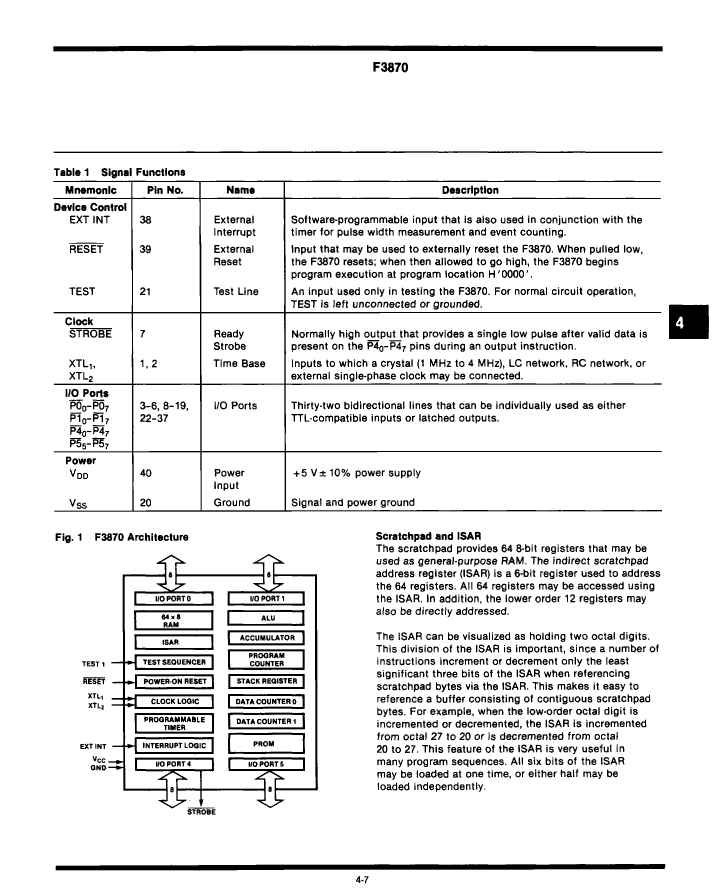

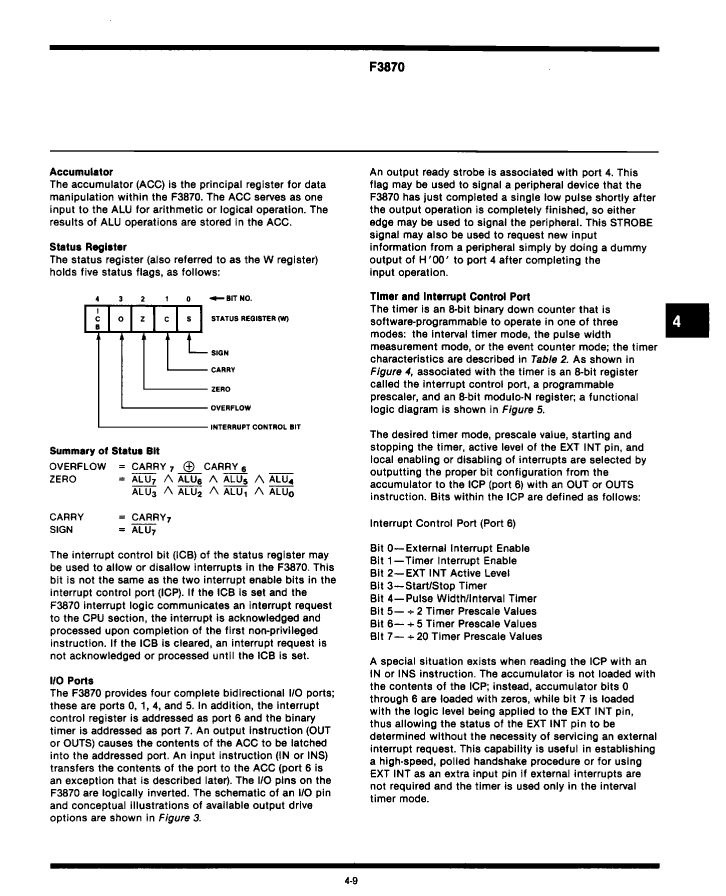

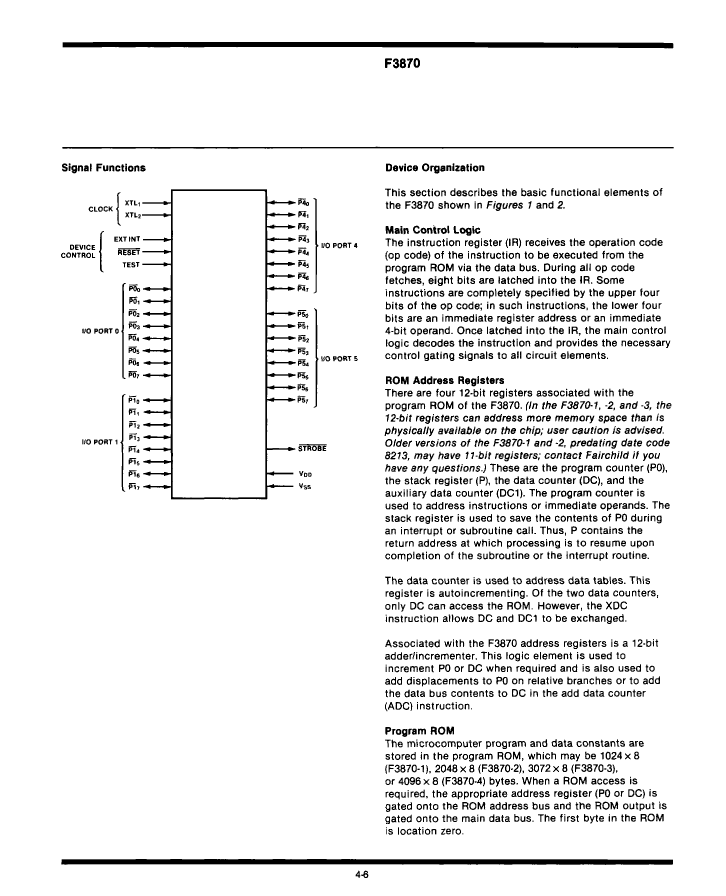

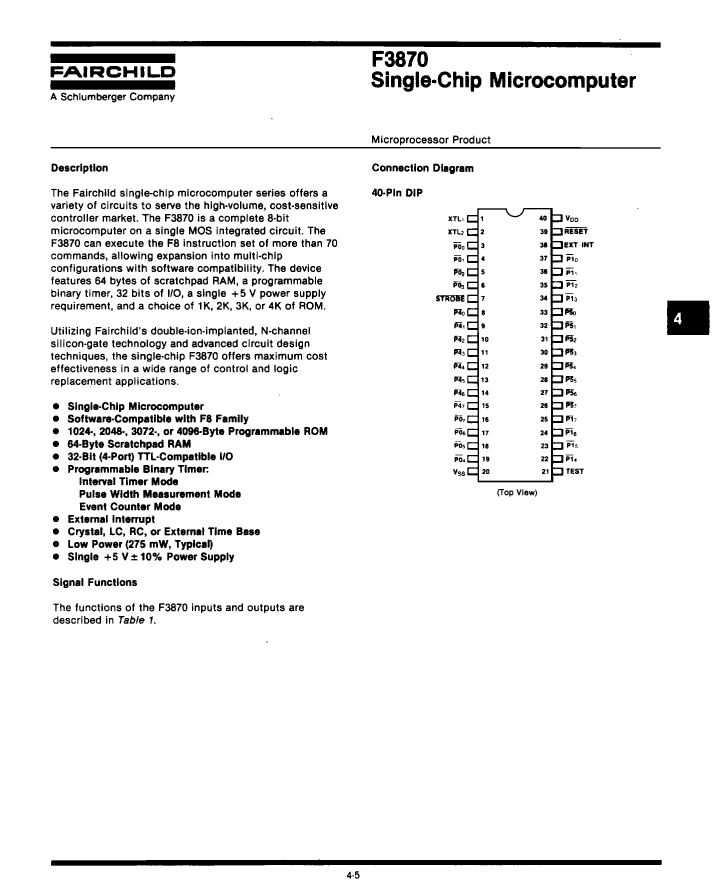

Preview

F3870-1PC: DescriptionMicrocontroller, 8-Bit, MROM, 4MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size703KB，22 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

F3870-1PC Overview

Microcontroller, 8-Bit, MROM, 4MHz, CMOS, PDIP40, PLASTIC, DIP-40

F3870-1PC Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T40
length	52.07 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
speed	4 MHz
Maximum slew rate	100 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

F3870-1PC Related Products

	F3870-1PC	F3870-2DL	F3870-2PC	F3870-2DC	F3870-1DL	F3870-1DC	F3870-3PC	F3870-3DL	F3870-4PC
Description	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, MROM, 4MHz, CMOS, PDIP40, PLASTIC, DIP-40
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Contacts	40	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO	NO
bit size	8	8	8	8	8	8	8	8	8
maximum clock frequency	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T40	R-GDIP-T40	R-PDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-PDIP-T40	R-GDIP-T40	R-PDIP-T40
length	52.07 mm	52.1335 mm	52.07 mm	52.1335 mm	52.1335 mm	52.1335 mm	52.07 mm	52.1335 mm	52.07 mm
Number of I/O lines	32	32	32	32	32	32	32	32	32
Number of terminals	40	40	40	40	40	40	40	40	40
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM
speed	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz
Maximum slew rate	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maximum seat height	-	6.35 mm	-	6.35 mm	6.35 mm	6.35 mm	-	6.35 mm	-
