AX88772B Product Introduction
AX88772B Product Introduction
Revision 1.10
June 21
st
, 2010
1
Copyright (C) 2010 Reserved by ASIX Electronics Corporation
AX88772B Product Introduction
Revision History
Revision
1.00
1.10
Date
2010/04/29
2010/06/21
Description
Initial release
1. Added AX88772B USB to 100Base-TX Ethernet (with RMII)
Demo Board related information.
2. Updated the Selection Guide in Section 3.
3. Updated AX88772B demo boards naming in Section 4 and 7.
4. Updated Figure 9 “AX88772B USB to 100Base-TX Ethernet Demo
Board” picture in Section 7-1.
5. Modified some descriptions in Section 8.
2
Copyright (C) 2010 Reserved by ASIX Electronics Corporation
AX88772B Product Introduction
Table of Contents
1.
Introduction ...................................................................................... 4
2.
Block Diagram .................................................................................. 5
2-1.
Typical System Block Diagrams ......................................................................6
3.
Selection Guide ................................................................................. 8
4.
Ordering Information ...................................................................... 9
5.
Target Applications ........................................................................ 10
6.
AX88x72A Mass Production Solutions......................................... 11
6-1.
The Windows SROM Programming Tool ......................................................11
6-2.
The Windows Production Test Tool...............................................................12
7.
AX88772B Demo Boards ............................................................... 13
7-1.
7-2.
7-3.
7-4.
AX88772B USB to 100Base-TX Ethernet Demo Board ................................13
AX88772B USB to 100Base-TX Ethernet (with RMII) Demo Board ............14
AX88772B USB to 100Base-FX 1x9 SC Ethernet Demo Board ...................15
AX88772B USB to 100Base-FX POF Ethernet Demo Board .......................16
8.
Related Technical Archives ........................................................... 18
List of Figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
Figure 10.
Figure 11.
Figure 12.
Figure 13.
Figure 14.
Figure 15.
Figure 16.
Figure 17.
Block Diagram ................................................................................................................................. 5
USB 2.0 to LAN Adaptor (MAC mode) .......................................................................................... 6
USB 2.0 to Fast Ethernet and external PHYceiver Combo (MAC mode) ....................................... 6
Bridging Embedded MCU to USB 2.0 Host Interface (PHY mode) ............................................... 7
USB 2.0 to HomePlug Adaptor (PHY mode) .................................................................................. 7
AX88772B Selection Guide ............................................................................................................ 8
AX88772B Silicon and Demo Boards Ordering Information.......................................................... 9
AX88772B Target Applications .................................................................................................... 10
AX88772B Windows SROM Programming Tool ......................................................................... 11
AX88772B Windows Production Test Tool ................................................................................ 12
AX88772B USB to 100Base-TX Ethernet Demo Board ............................................................. 13
AX88772B USB to 100Base-TX Ethernet (with RMII) Demo Board ........................................ 14
AX88772B USB to 100Base-FX 1x9 SC Ethernet Demo Board ................................................ 15
AX88772B USB to 100Base-FX POF Ethernet Demo Board ..................................................... 16
AX88772B USB to 100Base-TX/FX Ethernet with RMII Demo Boards Jumper Setting Table 17
AX88772B Related Technical Archives ...................................................................................... 19
Technical Archives Availability Type ......................................................................................... 19
3
Copyright (C) 2010 Reserved by ASIX Electronics Corporation
AX88772B Product Introduction
1. Introduction
The AX88772B Low-power USB 2.0 to 10/100M Fast Ethernet controller is a high
performance and highly integrated ASIC which enables low cost, small form factor, and simple
plug-and-play Fast Ethernet network connection capability for desktops, notebook PC’s, Ultra-
Mobile PC’s, docking stations, game consoles, digital-home appliances, and any embedded
system using a standard USB port.
The AX88772B features a USB interface to communicate with a USB Host Controller and is
compliant with USB specification V1.1 and V2.0. The AX88772B implements a 10/100Mbps
Ethernet LAN function based on IEEE802.3, and IEEE802.3u standards with embedded SRAM
for packet buffering. The AX88772B integrates an on-chip 10/100Mbps Ethernet PHY to
simplify system design.
The AX88772B provides an optional Multi-Function-Bus portion A and B (MFA and MFB)
for external PHY or external MAC for different application purposes. The MFA/MFB can be a
reduce-media-independent interface (RMII) for implementing 100BASE-FX Ethernet or
HomePNA functions. The MFA/MFB can also be a Reverse Reduced-MII (Reverse-RMII) for
glueless MAC-to-MAC connections to any MCU with Ethernet MAC RMII interface. In
addition, the MFA/MFB can be configured as general purpose I/O.
The following URL provides detailed online resources of ASIX Electronics high-speed USB-
to-LAN solutions:
(Refer to
http://www.asix.com.tw/products.php?op=ProductList&PLine=71)
Low-power USB2.0 to 10/100M Fast Ethernet Controller
AX88772B
-- Low-Power USB2.0 to 10/100M Fast Ethernet Controller
This document provides an overview of AX88772B Low-Power USB to 10/100M Fast
Ethernet controller product.
4
Copyright (C) 2010 Reserved by ASIX Electronics Corporation
AX88772B Product Introduction
2. Block Diagram

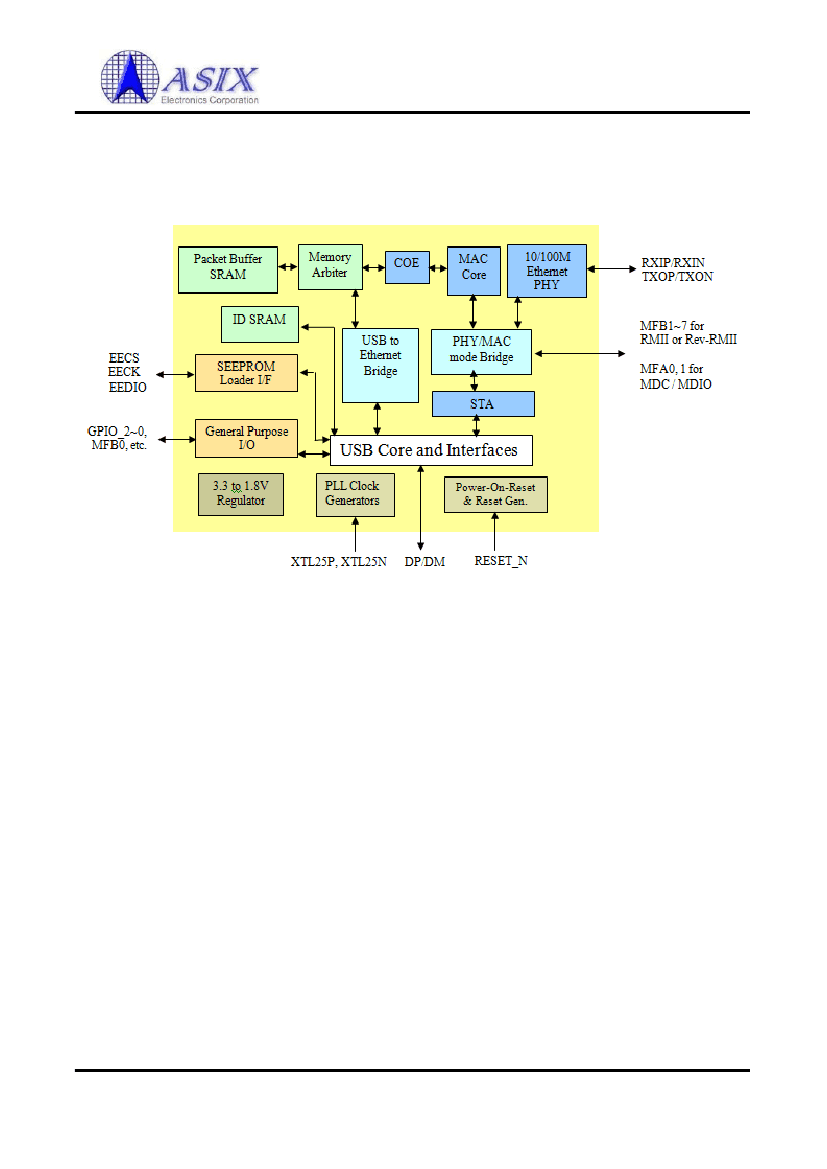

The following is AX88772B block diagram,
Figure 1. Block Diagram
5
Copyright (C) 2010 Reserved by ASIX Electronics Corporation
