BC639
Features
•
•
•
•
Halogen Free Available Upon Request By Adding Suffix "-HF"
Moisture Sensitivity Level 1
Epoxy Meets UL 94 V-0 Flammability Rating
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
NPN Epitaxial
Silicon Transistors
Maximum Ratings @ 25°C Unless Otherwise Specified
•
•
•
Operating Junction Temperature Range: -55℃ to +150℃
Storage Temperature Range: -55℃ to +150℃
Thermal Resistance: 125℃/W Junction to Ambient
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation
Marking:BC639
Internal Structure
C
B
E
1.EMITTER
2.COLLECTOR
3.BASE
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
D
Rating
100
80
5
1
1
Unit
V
V
V
A
W
A
E
TO-92
B
G
1
2
3
C
D
DIM
A
B
C
D
E
G
DIMENSIONS
INCHES
MM
NOTE
MIN MAX MIN MAX
0.169 0.185 4.30 4.70
0.169 0.185 4.30 4.70
0.500 ----- 12.70 -----
0.015 0.022 0.38 0.55
0.130 0.146 3.30 3.70
0.095 0.105 2.42 2.67 Straight Lead
0.173 0.220 4.40 5.60
Bent
Rev.3-1-01012019
1/4
MCCSEMI.COM
BC639
Electrical Characteristics @ T
A
=25°C Unless Otherwise Specified
Parameter
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
Emitter Cut-off Current
BC639-10
BC639-16
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE(1)
DC Current Gain
h
FE(2)
h
FE(3)
Collector-Emitter Saturation Voltage
Base-Emitter Voltage
Transition Frequency
V
CE(sat)
V
BE
f
T
100
25
63
100
25
0.5
1
V
V
MHz
160
250
Min
100
80
5
0.1
0.1
Typ
Max
Units
V
V
V
µA
µA
I
C
=1mA, I
B
=0
I
E
=100µA, I
C
=0
V
CB
=30V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=2V, I
C
=5mA
V
CE
=2V, I
C
=150mA
V
CE
=2V, I
C
=500mA
I
C
=500mA, I
B
=50mA
V
CE
=2V, I
C
=500mA
V
CE
=5V, I
C
=50mA, f=100MHz
Conditions
I
C
=100µA, I
E
=0
Rev.3-1-01012019
2/4
MCCSEMI.COM
BC639

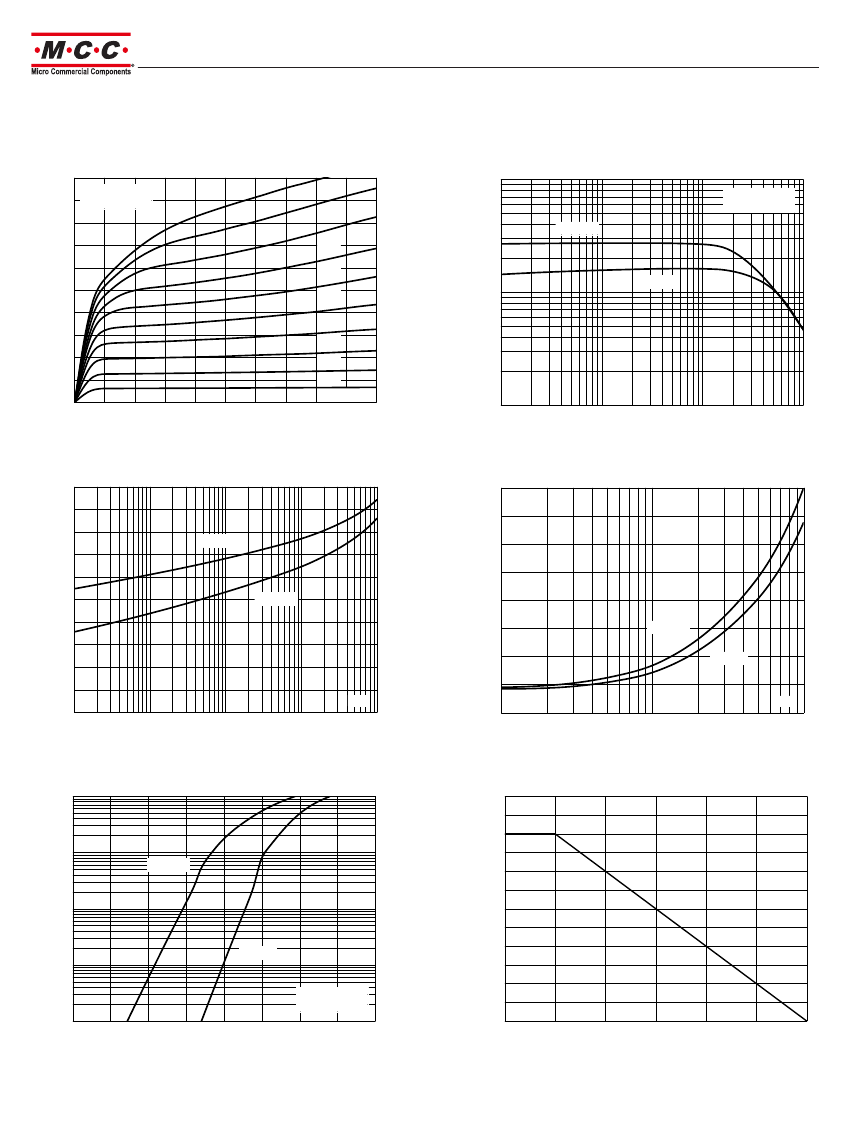

Curve Characteristics
Fig. 1 - Static Characteristics
0.5
Common Emitter
T
A
=25°C
2.0mA
1.8mA
Fig. 2 - DC Current Gain Characteristics
1000
Common Emitter
V
CE
= 2V
T
A
=100°C
1.6mA
0.4
Collector Current (A)
0.3
1.4mA
1.2mA
DC Current Gain
T
A
=25°C
100
0.2
1.0mA
0.8mA
0.1
0.6mA
0.4mA
0.0
I
B
=0.2mA
0
2
4
6
8
10
10
1
10
100
1000
Collector-Emitter Voltage (V)
Collector Current (mA)
Fig. 3 - Base-Emitter Saturation Voltage Characteristics
1000
200
Fig. 4 - Collector-Emitter Saturation Voltage Characteristics
Collector-Emitter Saturation Voltage (mV)
Base-Emitter Saturation Voltage (mV)
800
T
A
=25°C
150
600
T
A
=100°C
400
100
T
A
=100°C
50
T
A
=25°C
200
β=10
0
0.1
1
10
100
1000
β=10
0
10
100
1000
Collector Current (mA)
Collector Current (mA)
Fig. 5 - Base-Emitter Voltage Characteristics
1000
1.2
Fig. 6 - Collector Power Derating Curve
Collcetor Current (mA)
100
T
A
=100°C
Collector Power Dissipation (W)
Common Emitter
V
CE
=2V
1.0
0.8
10
0.6
T
A
=25°C
1
0.4
0.2
0.1
0.2
0.0
0.4
0.6
0.8
1.0
0
25
50
75
100
125
150
Base-Emitter Voltage (V)
Ambient Temperature (°C)
Rev.3-1-01012019
3/4
MCCSEMI.COM
BC639
Ordering Information
Device
Part Number-AP
Part Number-BP
Note : Adding "-HF" Suffix for Halogen Free, eg. Part Number-TP-HF
Packing
Ammo Packing: 20Kpcs/Carton
Bulk: 100Kpcs/Carton
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp
. does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp
. and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express
written approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Rev.3-1-01012019
4/4
MCCSEMI.COM
