MDJ-001-7-PS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MDJ-001-7-PS

MDJ-001-7-PS: Description7 CONTACT(S), BOARD MOUNT, MINI DIN CONNECTOR, JACK; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerRegal Electronics; Websitehttp://regalusa.net

Download Datasheet Parametric Compare View All

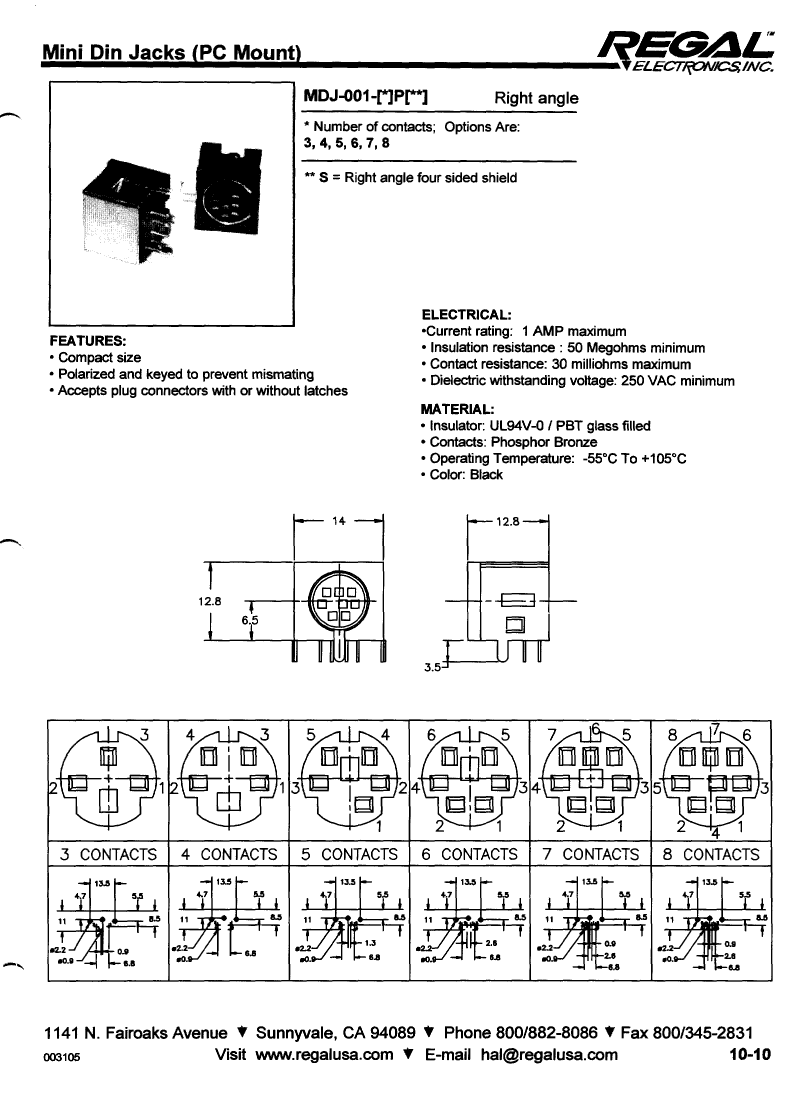

MDJ-001-7-PS Overview

7 CONTACT(S), BOARD MOUNT, MINI DIN CONNECTOR, JACK

MDJ-001-7-PS Parametric

Parameter Name	Attribute value
Maker	Regal Electronics
Reach Compliance Code	unknown
Body/casing type	JACK
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Electromagnetic interference shielding	YES
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	MDJ
Installation method	RIGHT ANGLE
Installation type	BOARD
Termination type	PRINTED WIRING PIN
Total number of contacts	7

Preview

Download Datasheet

View All

MDJ-001-7-PS Related Products

	MDJ-001-7-PS	MDJ-001-3-PS	MDJ-001-3PS	MDJ-001-4-PS	MDJ-001-4PS	MDJ-001-5-PS	MDJ-001-5PS	MDJ-001-6-PS	MDJ-001-6PS	MDJ-001-7PS
Description	7 CONTACT(S), BOARD MOUNT, MINI DIN CONNECTOR, JACK	3 CONTACT(S), BOARD MOUNT, MINI DIN CONNECTOR, JACK	Circular DIN Connector, 3 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Locking, Jack	4 CONTACT(S), BOARD MOUNT, MINI DIN CONNECTOR, JACK	Circular DIN Connector, 4 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Locking, Jack	5 CONTACT(S), BOARD MOUNT, MINI DIN CONNECTOR, JACK	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Locking, Jack	6 CONTACT(S), BOARD MOUNT, MINI DIN CONNECTOR, JACK	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Locking, Jack	Circular DIN Connector, 7 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Locking, Jack
Maker	Regal Electronics	Regal Electronics	Regal Electronics	Regal Electronics	Regal Electronics	Regal Electronics	Regal Electronics	Regal Electronics	Regal Electronics	Regal Electronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	NO	YES	NO	YES	NO	YES	NO	NO
Electromagnetic interference shielding	YES	YES	NO	YES	NO	YES	NO	YES	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	MDJ	MDJ	MDJ	MDJ	MDJ	MDJ	MDJ	MDJ	MDJ	MDJ
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Termination type	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Total number of contacts	7	3	3	4	4	5	5	6	6	7
